HAAS TL 3B

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

HAAS

Model:

TL 3B

Condition:

Not Specified

Year:

2012

Stock #:

35810

Status:

Sold

Description:

30" MAX SWING, 8.5" BAR CAP,

Location:

Alberta, Canada

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

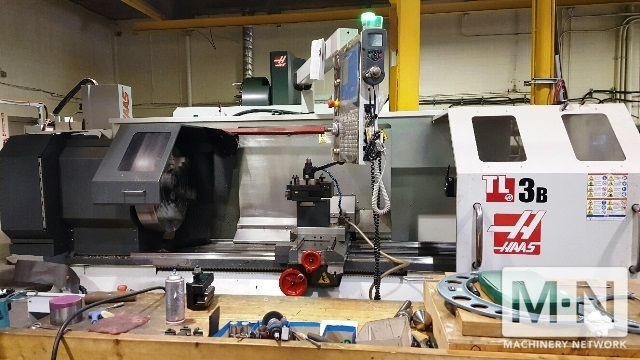

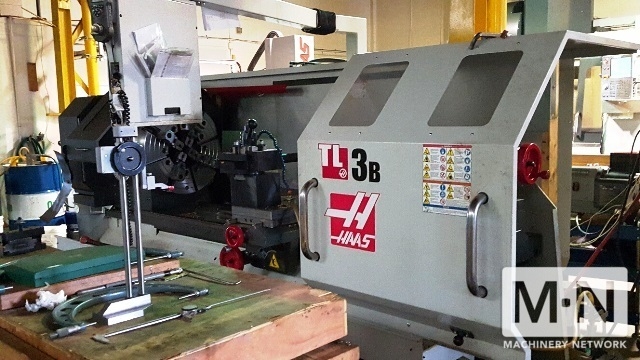

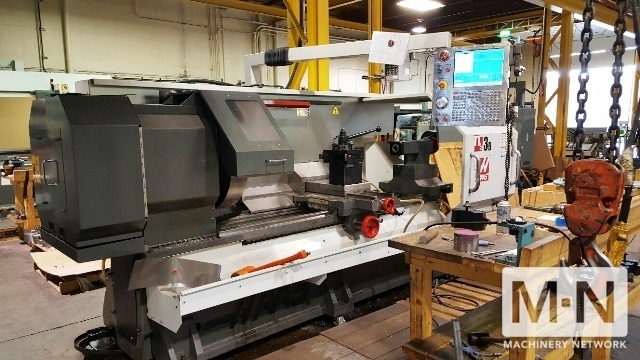

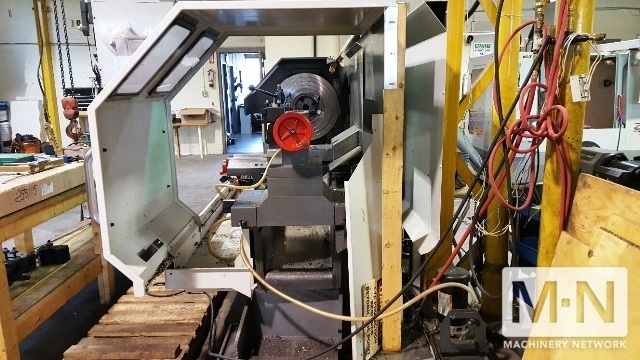

(1) USED HAAS TL 3B CNC LARGE BORE TEACH STYLE TURNING CENTER
NEW 2012

SPECIFICATIONS:
MAX. SWING OVER BED........................30"
OVER CROSS SLIDE...........................18.5"
MAX. TURNING DIA...........................35/18.4"
DISTANCE BETWEEN CENTERS...................60"
MAX. CUTTING LENGTH........................60"
SPINDLE BORE DIA. MAIN.....................8.5"
BAR CAPACITY ..............................8.5"
MAXIMUM WEIGHT OF WORKPIECE W/ TAILSTOCK ..16"
MAXIMUM WEIGHT W/ OUT TAILSTOCK SUPPORT....60 LBS.
SPINDLE NOSE MAIN/SUB......................A2-15"
SPINDLE SPEED .............................650 RPM
GEAR RANGES................................2-SPEED
SPINDLE TORQUE.............................1600 FT-LBS.
TURRET CONFIGURATION.......................SINGLE POST
SPINDLE MOTOR..............................30 HP AC VECTOR DRIVES
MACHINE WEIGHT.............................23,600 LBS.

EQUIPPED WITH
(1) FOLLOW REST

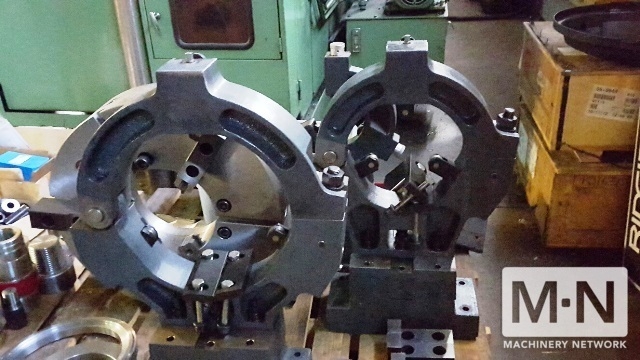

(1) LARGE SIZE STEADY REST
(1) SMALL SIZE STEADY REST
2 SPEED GEARED HEADSTOCK

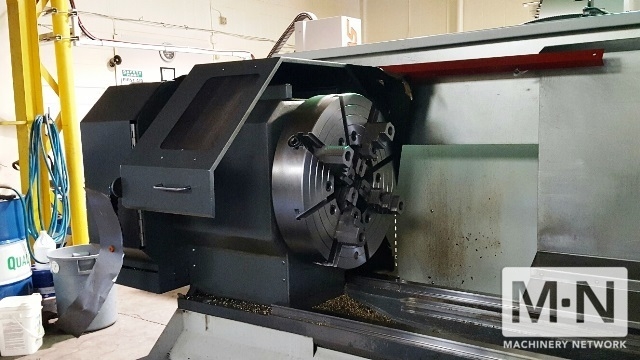

24" 4-JAW CHUCK WITH HARD JAWS

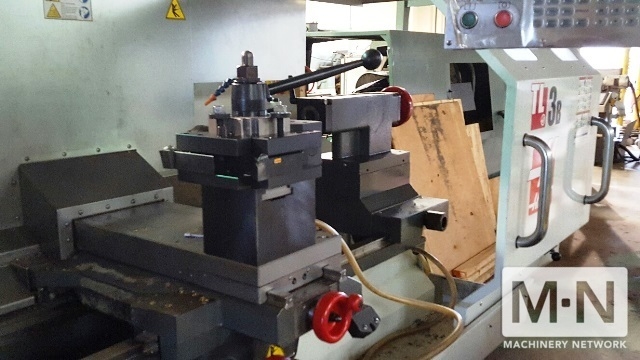

4-POSITION TOOL POST
8.5'' SPINDLE BORE

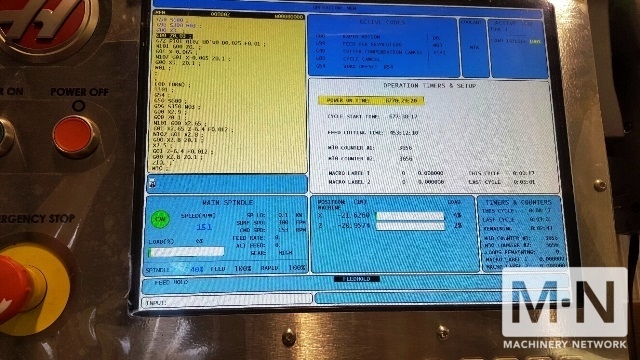

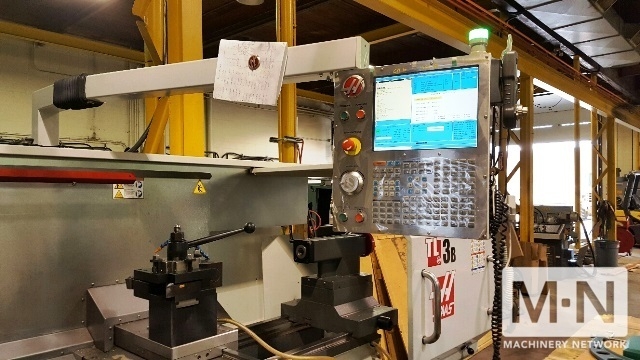

HAAS 32 BIT CNC CONTROL 15" COLOR MONITOR
HAND HELD REMOTE JOG HANDLE
