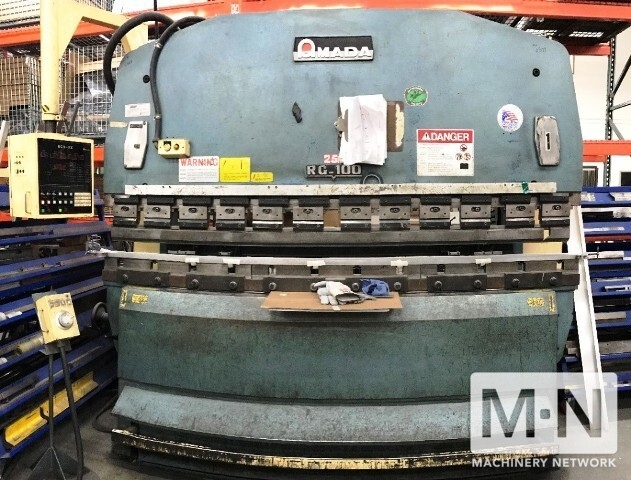

AMADA RG-100S
Type:
BRAKES, PRESS, HYDRAULIC (Inch/Ton)
Manufacturer:
AMADA
Model:
RG-100S
Condition:
Not Specified
Year:
1986
Stock #:
37071
Status:
Sold
Description:
110 TON X 98.7:, NC9-EX B.G
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

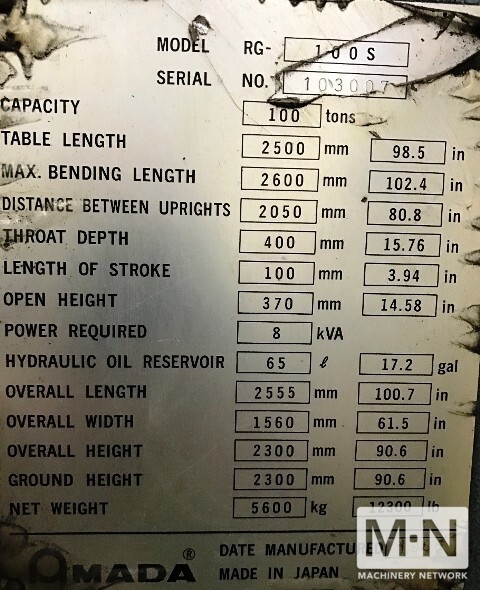

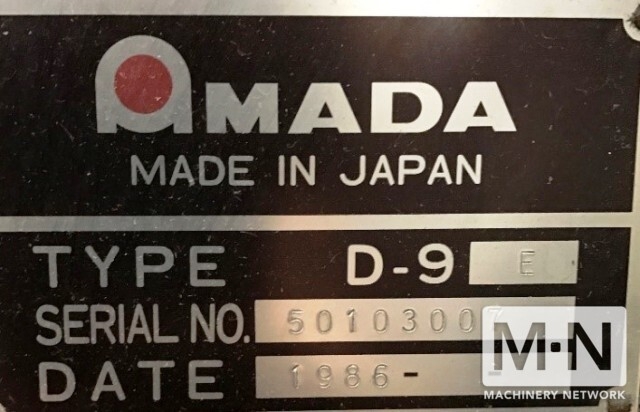

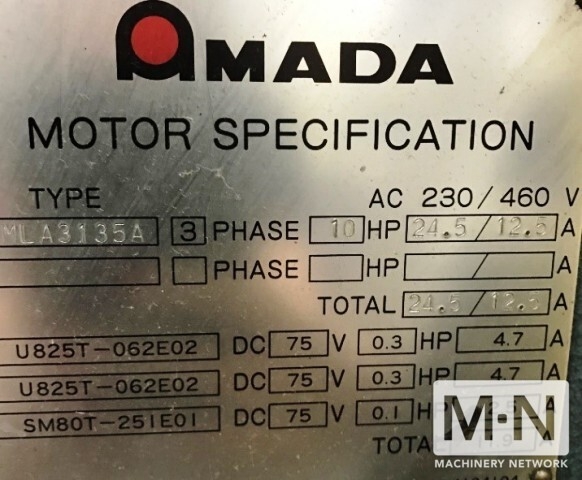

Amada RG 100 Press Brake Specifications: Manufactured in 1986 Serial #50103007 Type: D-9 E Capacity: 100 tons Table Length: 2500mm 98.5in Max. Bending Length 2600mm 102.4in Distance in Uprights: 2050 mm 80.8in Throat Depth: 400mm 15.76in Length of Stroke: 100mm 3.94in Open Height: 370mm 14.58in Power Req’d: 8kVA Hydraulic Oil Reservoir: 65l 17.2gal Overall Length: 2555mm 100.7in Overall Width: 1560mm 61.5in Ground Height: 2300mm 90.6in Overall Height: 2300mm 90.6in Net Weight: 2300kg 12300lb Motor Specification: Type: MLA3135A 3Phase10HP 24.5/12.5A Equipped with: NC9-EX 3 Back Gauge
Inspect in Northern California Plant
For further information please call Harvey Geller at 818-455-8103
Inspect in Northern California Plant
For further information please call Harvey Geller at 818-455-8103
