AMADA FBD-5020F
Type:
BRAKES, PRESS, HYDRAULIC (Inch/Ton)
Manufacturer:
AMADA
Model:
FBD-5020F
Condition:
Not Specified
Year:
1997
Stock #:
25156
Status:
Sold
Description:
55 TON X 82.1", NC-9EX II
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
ONE (1) USED

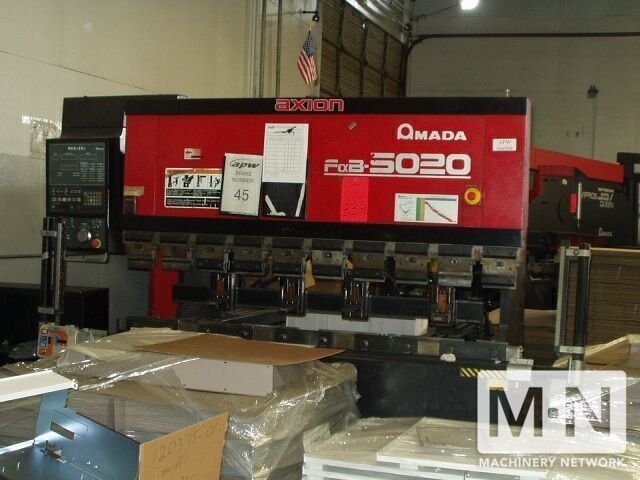

55 TON X 82.1" AMADA FBD-5020F "UPACTING" HYDRAULIC PRESSBRAKE
EQUIPPED WITH:
C9EXII 3-AXIS CNC BACKGAUGE
MFG: 1997
SPECIFICATIONS
CAPACITY........................... ............55 TON BENDING LENGTH.........................82.1"
STROKE LENGTH........................... 3.9"
NO. OF CYLINDERS....................... 1 LOWER BEAM SPEED RISING... 3.54"/SEC BENDING......................................... 0.35"/SEC LOWERING...................................... 2.72"/SEC MOTOR.............................. ...............5 HP TANK CAPACITY.............................13.2 GALLONS MACHINE WEIGHT....................... 7,940 LB.
APPROX. DIMENSIONS .. L x W x H ... 70.1" x 49.3" x 79.1"
EQUIPPED WITH:
NC-9EX II 3-AXIS BACK GAUGE
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
* MACHINE WAS UNDER AMADA MAINTENANCE PLAN
55 TON X 82.1" AMADA FBD-5020F "UPACTING" HYDRAULIC PRESSBRAKE
EQUIPPED WITH:
C9EXII 3-AXIS CNC BACKGAUGE
MFG: 1997
SPECIFICATIONS
CAPACITY........................... ............55 TON BENDING LENGTH.........................82.1"
STROKE LENGTH........................... 3.9"
NO. OF CYLINDERS....................... 1 LOWER BEAM SPEED RISING... 3.54"/SEC BENDING......................................... 0.35"/SEC LOWERING...................................... 2.72"/SEC MOTOR.............................. ...............5 HP TANK CAPACITY.............................13.2 GALLONS MACHINE WEIGHT....................... 7,940 LB.
APPROX. DIMENSIONS .. L x W x H ... 70.1" x 49.3" x 79.1"
EQUIPPED WITH:
NC-9EX II 3-AXIS BACK GAUGE
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
* MACHINE WAS UNDER AMADA MAINTENANCE PLAN
