AMADA HFE1003S

Type:

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Manufacturer:

AMADA

Model:

HFE1003S

Condition:

Not Specified

Year:

2006

Stock #:

30337

Status:

Sold

Description:

110 TONS X 122", "DOWN-ACTING", OPERATEUR 7-AXIS B.G.

Location:

Texas, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

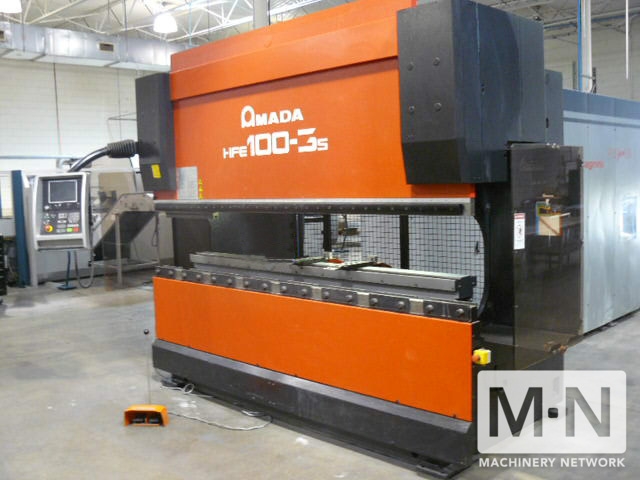

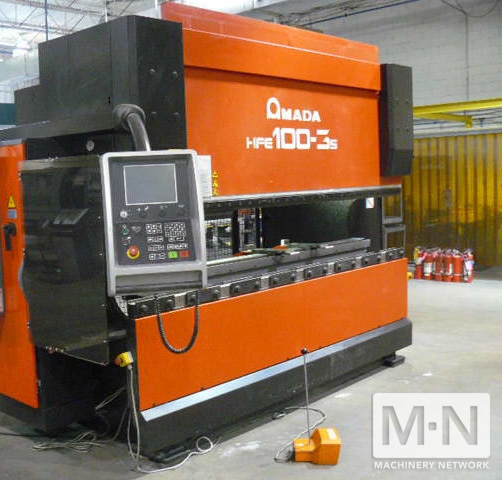

110 TON AMADA HFE 100-3S "DOWN-ACTING" CNC PRESS BRAKE

NEW 2006

System Specifications:
Hydraulic Press Brake Capacity- 110 U.S. Tons
Bend Length 122 Inches
Maximum Stroke Length- 7.8 Inches
Open Height- 18.5 Inches
Throat Depth- 16.5 Inches
Distance Between Housings- 106 Inches

Ram Repeatability- +/- 0.00004 inches
Table Width- 2.36 inches
Approach Speed- 7.87 inches per second
Bending Speed- 0.04 to 0.787 inches per second, programmable
Return Speed- .04 to 7.87 inches per second, programmable

Overall Machine Length- 145 Inches
Machine Width- 58 Inches
Machine Height- 106 Inches
Hydraulic Oil Capacity- 56 Gallons
Machine Weight- 16,000 Pounds

Motor HP- 25 hp
Foundation- 6 inch concrete slab

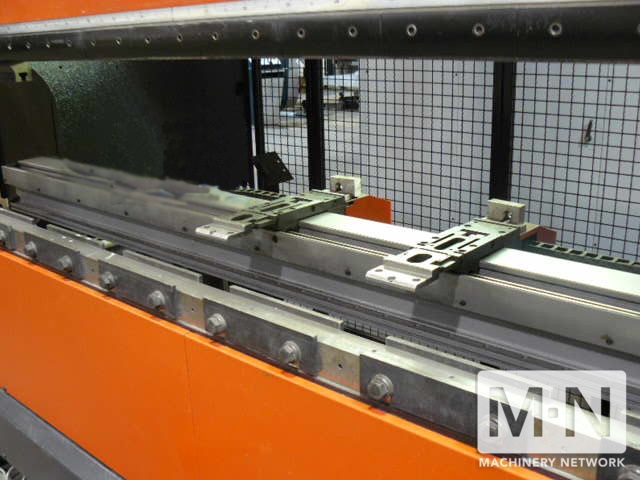

Backgauge
Model- Amada Type B
Repeatability- L Axis +/- 0.0004 inches

Movement Range:
X Axis 27.5/37.5 inches
R Axis 9.84 inches
Z Axis 94 inches

Feed Speed:
X Axis 19.5 inches per second
R Axis 6.2 inches per second
Z Axis 39.3 inches per second

Minimum Command Unit : 0.0001 inch
CNC Controller
Model- Amada OPERATEUR
Axes of Control- 7 standard
Y1Y2 Ram depth
X1X2 Backgauge
Z1Z2 Horizontal finger position of two stoppers
R Vertical finger position of two stoppers

Input Method- Keyboard, 3.5" diskette and RS232
Display- 12" Color VGA
Program Storage- 60 in active memory plus 30 on diskette
Bends per Program- 25
Die Library- 70 Dies
Punch Library-30 punches

* This machine is being offered with Amada One Year AMP which also covers installation

Machine sold delivered to Ashville, N.C. ( buyer to arrange for off loading )

For further information please call Harvey Geller at 714-968-9985
