AMADA FO3015

Type:

LASERS

Manufacturer:

AMADA

Model:

FO3015

Condition:

Not Specified

Year:

2001

Stock #:

36383

Status:

Sold

Description:

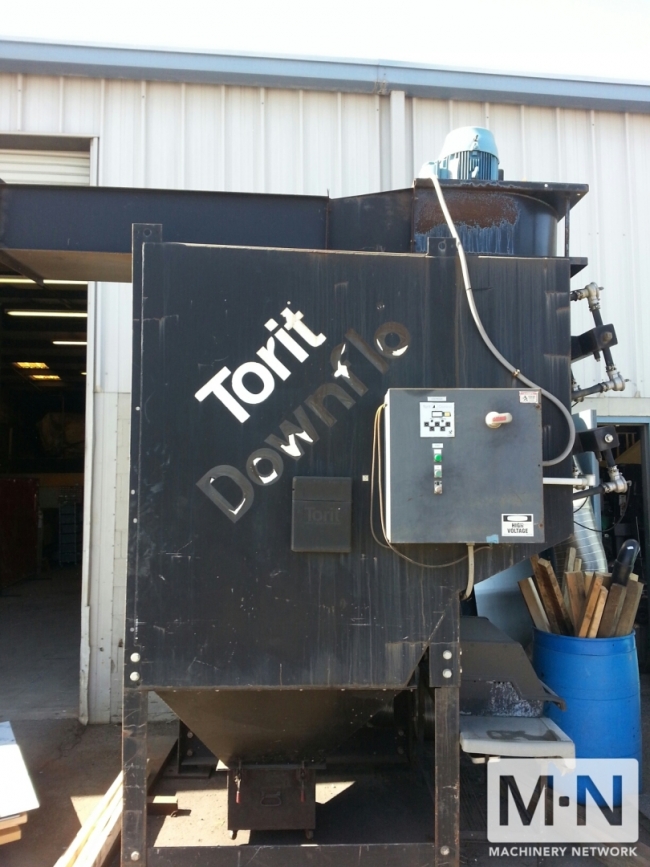

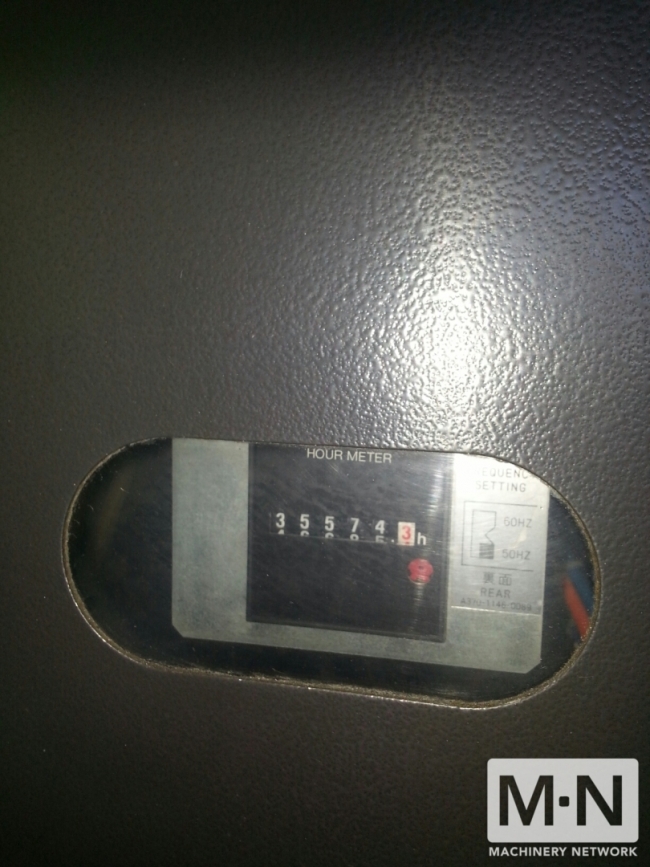

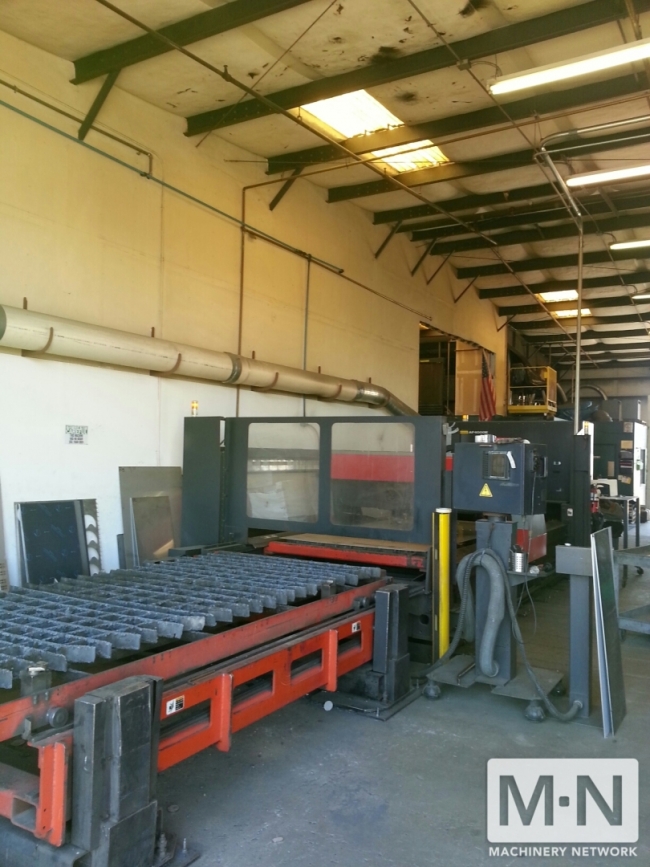

4000 WATT, 5' X 10', TRANSFER TABLE, DUST COLLECTOR, 36,000 HOURS, NEW 24,000 TURBO LAST YEAR

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

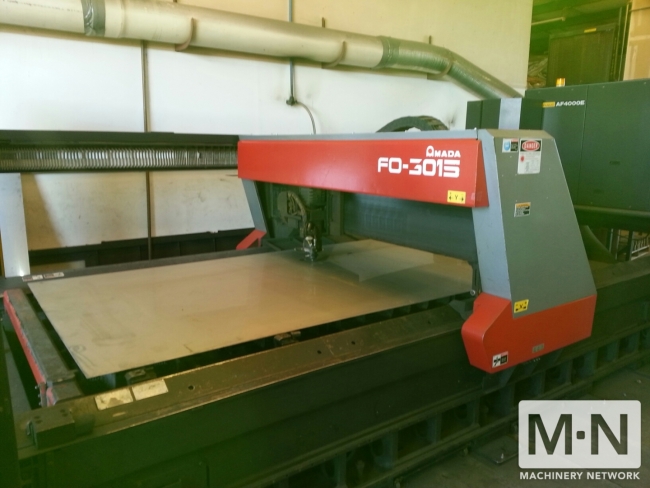

4000 WATT AMADA GEMINI FO3015 CNC LASER CUTTER

NEW 2001

1.1 Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 61" (Y) x 122.8" (X)
Maximum Axis Travel: 61" (Y) x 122.8" (X) x 7.87" (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min)
Per axis: 4,554 inches per minute 45o vector.
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004"/20"
Maximum Material Weight: 1,875 lbs.
Assist Gas: 4 ports with NC pressure Control
Machine Footprint: 385" x 107"
Machine Weight: 12 Metric Tons
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA

1.2 CNC Controller
Model: Fanuc 160iL - 32 Bit
Display: LCD Color Graphics Display
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 512K (1280m)
Operating Modes: Automatic, MDI and Manual

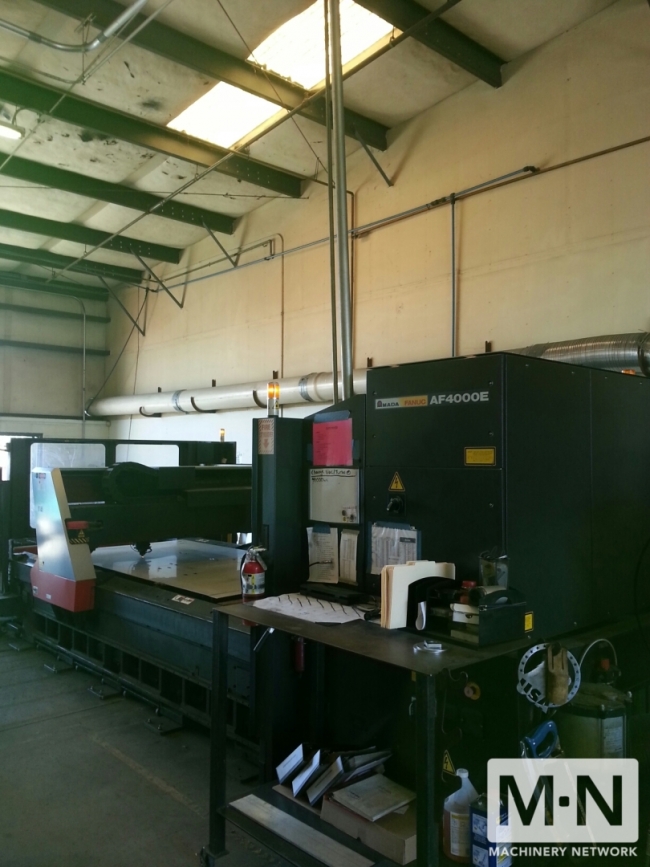

1.3 Laser Specifications AF 4000A Oscillator (Resonator):
CW Power: 4,000 Watts
Peak pulse power: 5,000 Watts
Maximum material thicknesses
Carbon steel: 0.75"
Stainless steel: 0.375" CleanCut (TM)
Aluminum: 0.375
1.1 Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 61" (Y) x 122.8" (X)
Maximum Axis Travel: 61" (Y) x 122.8" (X) x 7.87" (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min)
Per axis: 4,554 inches per minute 45o vector.
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004"/20"
Maximum Material Weight: 1,875 lbs.
Assist Gas: 4 ports with NC pressure Control
Machine Footprint: 385" x 107"
Machine Weight: 12 Metric Tons
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA

1.2 CNC Controller
Model: Fanuc 160iL - 32 Bit
Display: LCD Color Graphics Display
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 512K (1280m)
Operating Modes: Automatic, MDI and Manual
1.3 Laser Specifications AF 4000A Oscillator (Resonator):
CW Power: 4,000 Watts
Peak pulse power: 5,000 Watts
Maximum material thicknesses
Carbon steel: 0.75"
Stainless steel: 0.375" CleanCut (TM)
Aluminum: 0.375

24000 Hour Turbo that has 10000 hours on it Vacuum Pump was replace the same time as the turbo Monitor and Back up batteries were replaced 18 months ago New output coupler was replaced last week All optics were service this week Fanuc came in and adjusted all ball screws 3 weeks ago This machine has been under the Amada’s AMP program . For further information please call Harvey Geller at 818-455-8103
