AMADA LCV3015

Type:

LASERS

Manufacturer:

AMADA

Model:

LCV3015

Condition:

Not Specified

Year:

1998

Stock #:

35459

Status:

Sold

Description:

3000 WATT, 5' X 10'

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

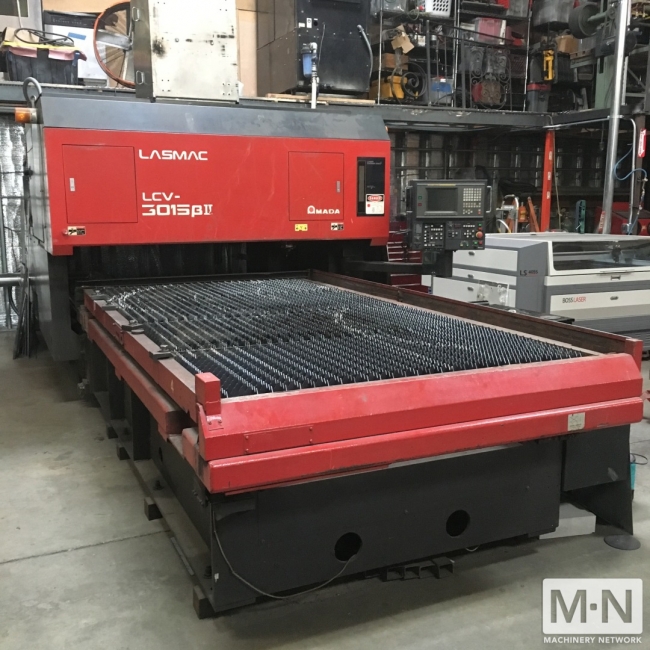

3000 watt Amada Altair LCV-3015 BII laser Cutting system New in 1998 Total hours: ~91K *New Ball Screw only ~ 6500 hours ago, Turbo blower still has ~ 6000 hours left Machine specifications
Model: 3015
Maximum sheet size: 5' x 10'
X-Travel: 99"
Y-Travel: 61"
Z-Travel: 11.8"
Maximum positioning speed: 1575 IPM
Positioning accuracy (+/-): 0.0004"/20"
Machine size: 261" x 111" x 93"

Control specifications

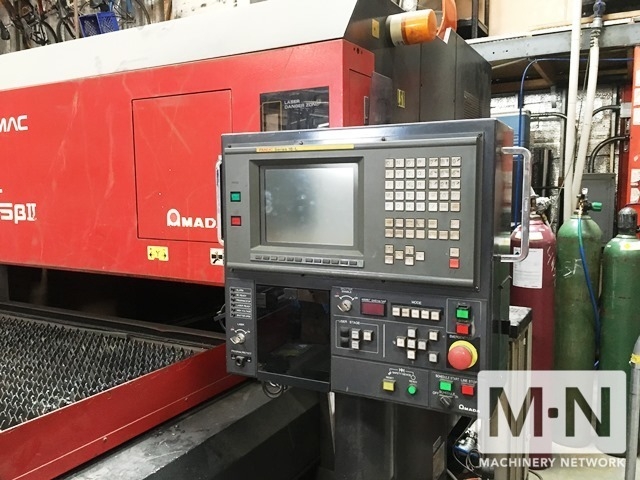

Model: 16LB Control (Fanuc)
Control Function: X, Y, Z, T, B & C simultaneous 3 axis Laser Power control (CW, Pulse)
Input Method: Floppy Disk, MDI, Edit, DNC
MMC Functions: Geometric Input (metric only), Maintenance
Minimum Command Unit: 0.001" (X, Y, Z)
Minimum Travel Unit: 0.001" (X, Y, Z)
Operating Modes: Automatic, MDI & Manual
Display Modes: Program Contents, Position Information, Program Check, Settings, Parameters, Tool Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock Displays: Water Volume, Water Temperature, Gas Pressure, Vacuum Leak, Blower Malfunction, Shutter Power, Discharge, Assist Gas, Door Open
Electrical Requirements: 208 VAC, 3 Phase, 60 HZ, 34 K

Equipped with:

Chiller
Dust Collector
Software
