DOOSAN PUMA480L
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
DOOSAN
Model:
PUMA480L
Condition:
Not Specified
Stock #:
36057
Status:
Sold
Description:
FANUC 21ITB , 7" BORE DIAM., 60 HP, 1K RPM, 18" 3-JAW CHUCK ,
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

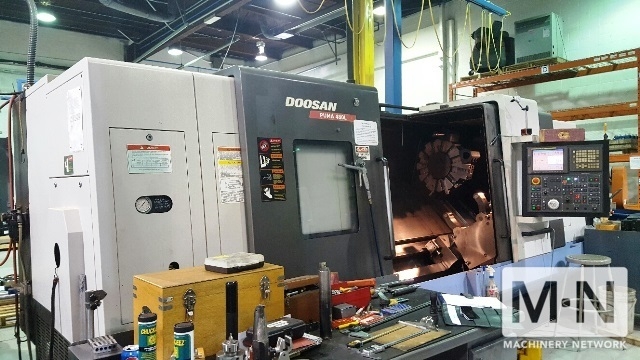

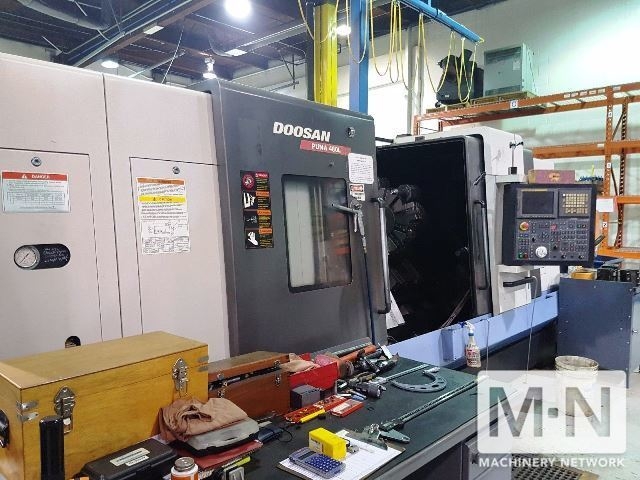

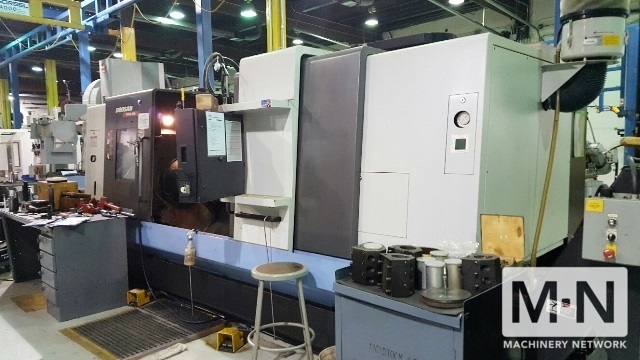

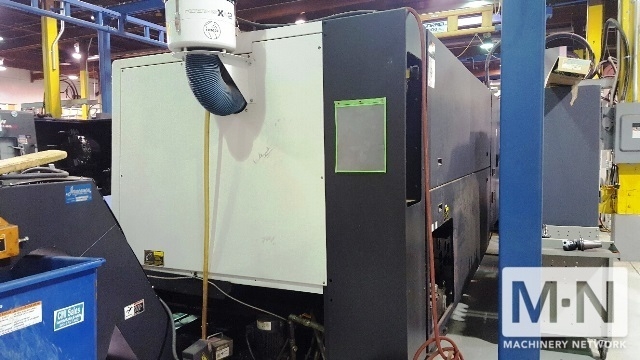

(1) USED DOOSAN PUMA 480L CNC UNIVERSAL TURNING CENTER W/ HYDRAULIC STEADY REST
NEW 2008
SPECFICIATIONS:
MAXIMUM SWING OVER BED ..........35.4"
SWING OVER CARRIAGE...............28.34"
MAX. TURNING DIA. (SHAFT).........25.54"
MAX. TURNING DIA. (CHUCKING)......35.4"
DISTANCE BETWEEN CENTERS..........82.6"

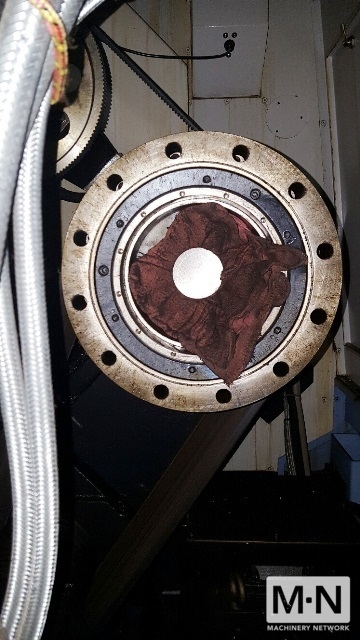

SPINDLE BORE DIAMETER.............7.1"
X- AXIS TRAVEL....................14.25"
Z - AXIS TRAVEL...................83.5"
SPINDLE NOSE ....................A2-20"
SPINDLE SPEED.....................1000 RPM
SPEEDS............................2-SPEED GEAR BOX
SPINDLE TORQUE ..................2944 FT - LBS
MAIN MOTOR........................60 HP

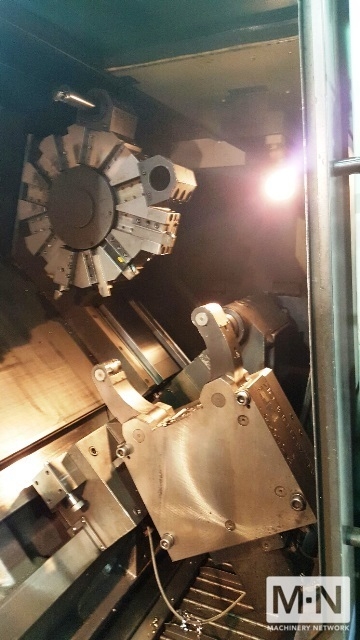

TURRET CONFIGURATION..............12
RAPID TRAVERSE X, Z...............550, 710 IPM
TAILSTOCK QUILL TRAVEL............4.7"
TAILSTOCK QUILL DIAMETER..........4.7"
TAILSTOCK TRAVEL..................69.4"
MACHINE WEIGHT....................25,800 LBS.
EQUIPPED WITH

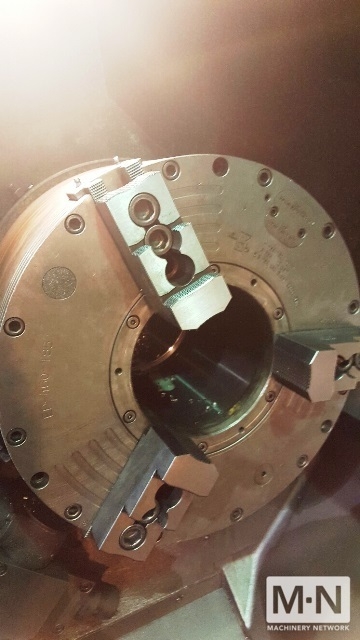

18" 3 JAW PNEUMATIC CHUCK W/7.1" HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING

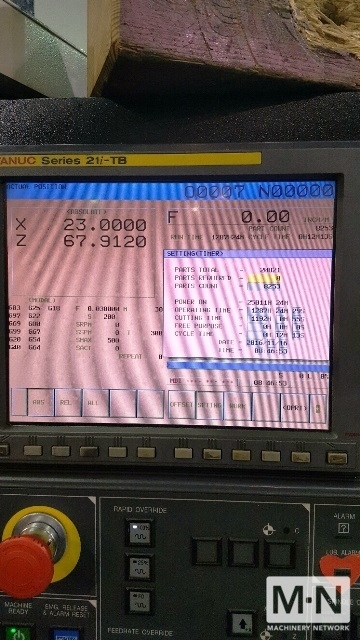

FANUC 21ITB CNC CONTROL

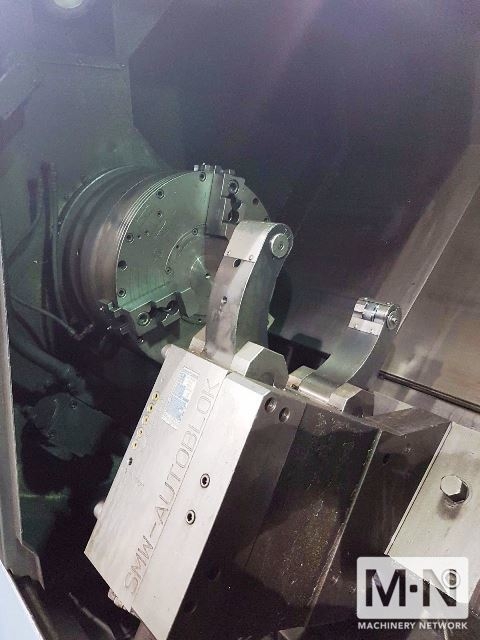

SMW HYDRAULIC STEADY REST
TOOL PRESETTER
NEW 2008
SPECFICIATIONS:
MAXIMUM SWING OVER BED ..........35.4"
SWING OVER CARRIAGE...............28.34"
MAX. TURNING DIA. (SHAFT).........25.54"
MAX. TURNING DIA. (CHUCKING)......35.4"
DISTANCE BETWEEN CENTERS..........82.6"
SPINDLE BORE DIAMETER.............7.1"
X- AXIS TRAVEL....................14.25"
Z - AXIS TRAVEL...................83.5"
SPINDLE NOSE ....................A2-20"
SPINDLE SPEED.....................1000 RPM
SPEEDS............................2-SPEED GEAR BOX
SPINDLE TORQUE ..................2944 FT - LBS
MAIN MOTOR........................60 HP
TURRET CONFIGURATION..............12
RAPID TRAVERSE X, Z...............550, 710 IPM
TAILSTOCK QUILL TRAVEL............4.7"
TAILSTOCK QUILL DIAMETER..........4.7"
TAILSTOCK TRAVEL..................69.4"
MACHINE WEIGHT....................25,800 LBS.
EQUIPPED WITH
18" 3 JAW PNEUMATIC CHUCK W/7.1" HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
FANUC 21ITB CNC CONTROL
SMW HYDRAULIC STEADY REST
TOOL PRESETTER
