DOOSAN PUMA 480LD
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
DOOSAN
Model:
PUMA 480LD
Condition:
Not Specified
Year:
2011
Stock #:
36055
Status:
Sold
Description:
10.2" SPINDLE BORE, 21" 3-JAW AIR CHUCK FRONT, 10" SPINDLE BORE,
Location:
Maryland, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

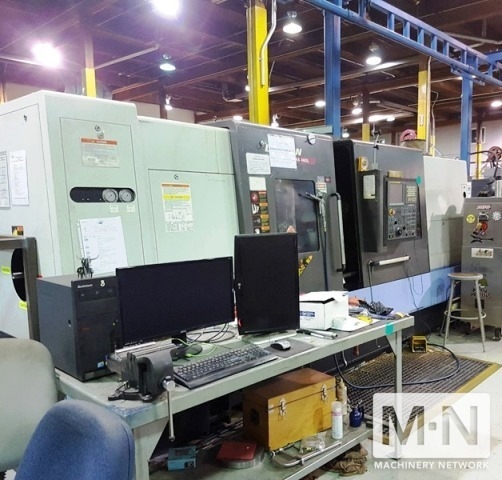

(1) USED DOOSAN PUMA 480LD CNC UNIVERSAL TURNING CENTER W/ HYDRAULIC STEADY REST
NEW 2011
SPCECIFICATIONS
MAXIMUM SWING OVER BED ............35.4"
SWING OVER CARRIAGE.................28.34"
MAX. TURNING DIA. (SHAFT)...........25.54"
MAX. TURNING DIA. (CHUCKING)........35.4"
DISTANCE BETWEEN CENTERS............82.6"
SPINDLE BORE DIAMETER...............10.2"
X- AXIS TRAVEL......................14.25"
Z - AXIS TRAVEL.....................83.5"
SPINDLE NOSE.......................A2-20"
SPINDLE SPEED ....................1000 RPM
SPEEDS ............................2-SPEED GEAR BOX
SPINDLE TORQUE ....................2944 FT - LBS
MAIN MOTOR ....................60 HP

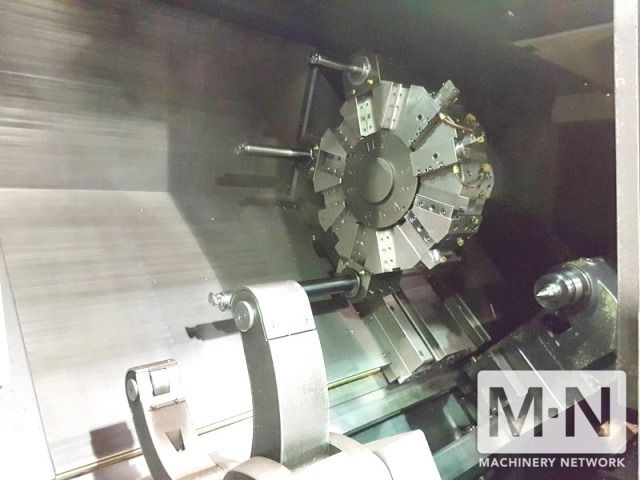

TURRET CONFIGURATION ............12
RAPID TRAVERSE X, Z ............550, 710 IPM
TAILSTOCK QUILL TRAVEL ............4.7"
TAILSTOCK QUILL DIAMETER ....4.7"
TAILSTOCK TRAVEL....................69.4"
MACHINE WEIGHT .........25,800 LBS.
EQUIPPED WITH
10.2" SPINDLE BORE

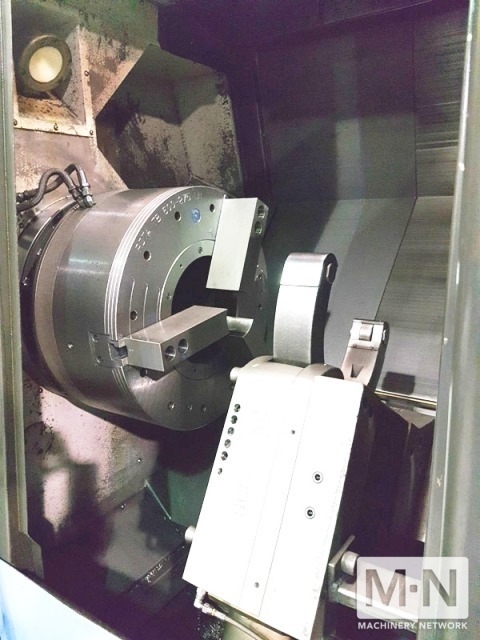

21" 3-JAW AIR CHUCK FRONT
24" 3-JAW MANUAL CHUCK WITH 11" HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING

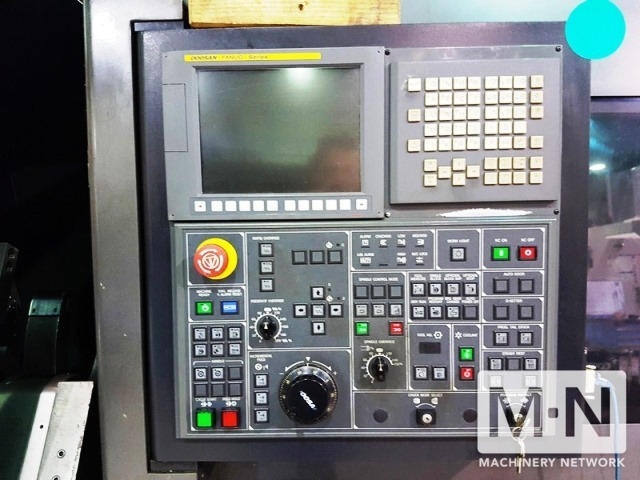

FANUC I SERIES CNC CONTROL WITH MANUAL GUIDE I
SCHUNK THL4 HYDRAULIC STEADY REST
TOOL PRESETTER
NEW 2011
SPCECIFICATIONS
MAXIMUM SWING OVER BED ............35.4"
SWING OVER CARRIAGE.................28.34"
MAX. TURNING DIA. (SHAFT)...........25.54"
MAX. TURNING DIA. (CHUCKING)........35.4"
DISTANCE BETWEEN CENTERS............82.6"
SPINDLE BORE DIAMETER...............10.2"
X- AXIS TRAVEL......................14.25"
Z - AXIS TRAVEL.....................83.5"
SPINDLE NOSE.......................A2-20"
SPINDLE SPEED ....................1000 RPM
SPEEDS ............................2-SPEED GEAR BOX
SPINDLE TORQUE ....................2944 FT - LBS
MAIN MOTOR ....................60 HP
TURRET CONFIGURATION ............12
RAPID TRAVERSE X, Z ............550, 710 IPM
TAILSTOCK QUILL TRAVEL ............4.7"
TAILSTOCK QUILL DIAMETER ....4.7"
TAILSTOCK TRAVEL....................69.4"
MACHINE WEIGHT .........25,800 LBS.
EQUIPPED WITH
10.2" SPINDLE BORE
21" 3-JAW AIR CHUCK FRONT
24" 3-JAW MANUAL CHUCK WITH 11" HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
FANUC I SERIES CNC CONTROL WITH MANUAL GUIDE I
SCHUNK THL4 HYDRAULIC STEADY REST
TOOL PRESETTER
