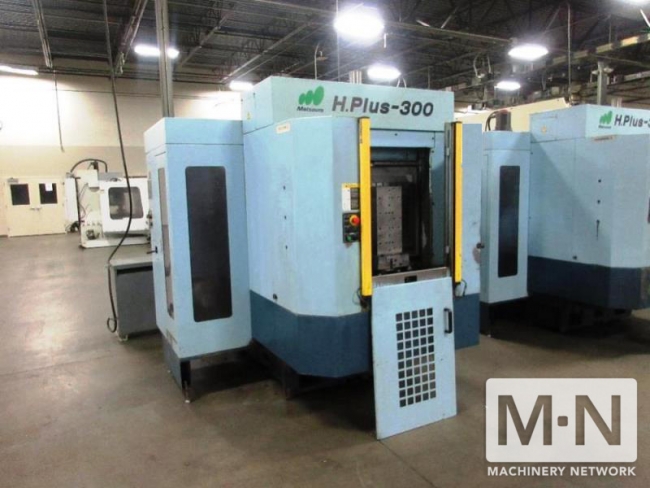

MATSUURA H.PLUS 300

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MATSUURA

Model:

H.PLUS 300

Condition:

Not Specified

Year:

2004

Stock #:

35806

Status:

Sold

Description:

G-TECH 16I CONTROL, 19"X22"X19", RENISHAW PROBE

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

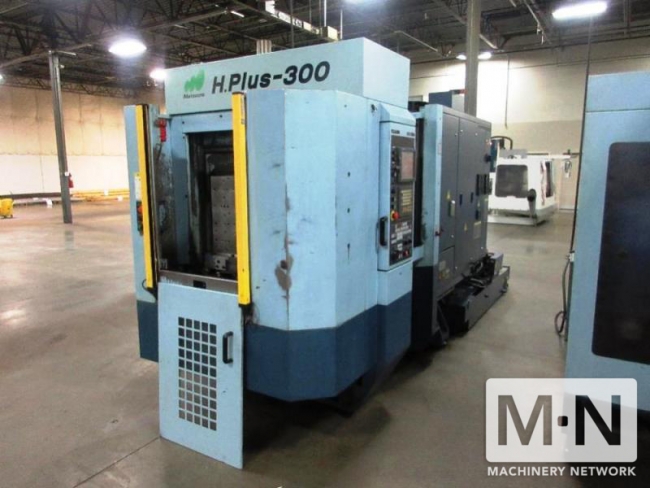

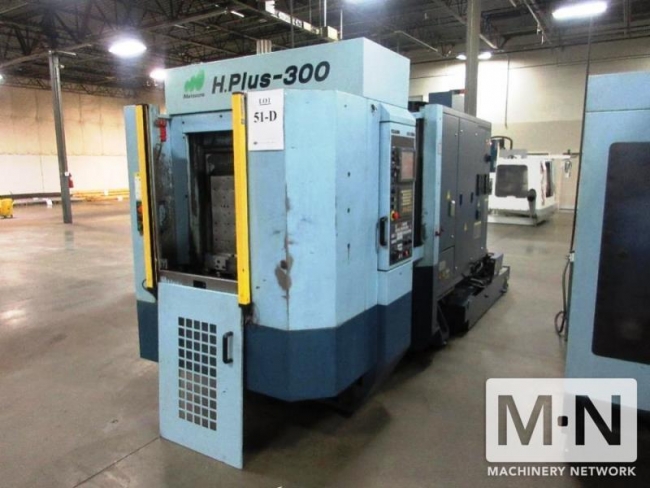

(1) USED MATSUURA H.PLUS-300 CNC HORIZONTAL MACHINING CENTER W/APC
NEW 2004

SPECIFICATIONS:

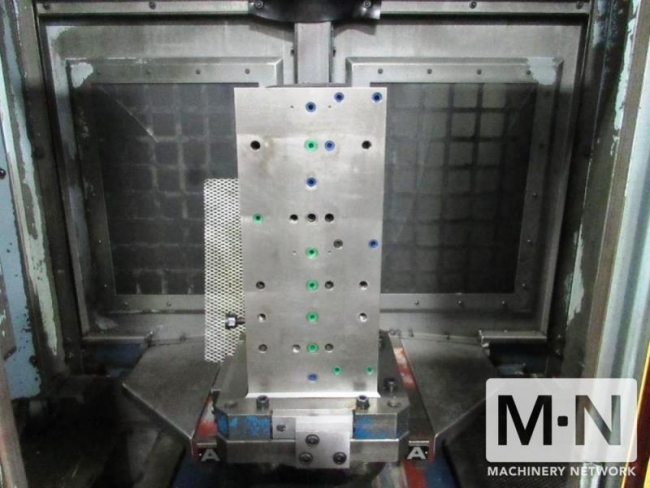

PALLET SIZE: ...................(11)11.81" x 11.81"

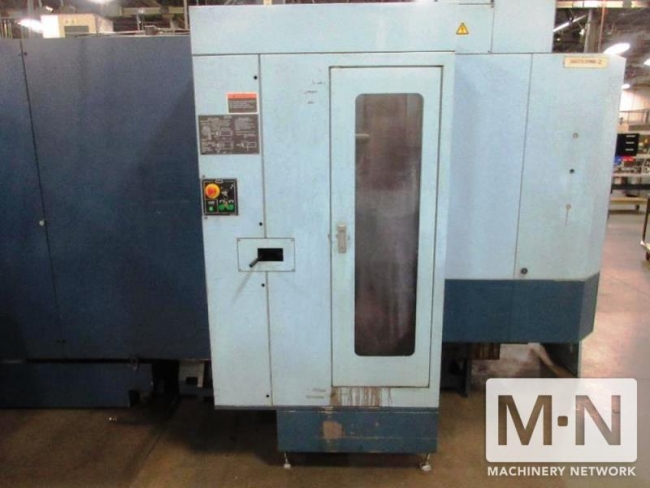

APC: PC11 FLOOR PALLET SYSTEM
LOAD CAPACITY: ..................551 LB.
MAX. WORK SIZE: ................Ø19.68 x H29.92
TRAVELS:
X-AXIS: .........................19.68"
Y-AXIS: .........................22.04"
Z-AXIS: .........................19.68"

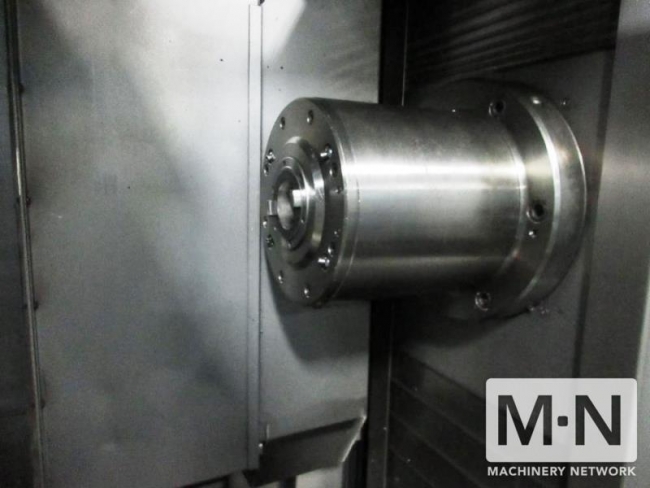

SPINDLE SPEED: ..................15,000 RPM
SPINDLE MOTOR: ..................20 HP
SPINDE TAPE: ....................40 TAPER
SPINDLE MAX. MOTOR TORQUE: ......120/1,200 NM/MIN
TYPE OF TOOL SHANK: .............JIS B 6339 40T
TYPE OF RETENTION KNOB: .........JIS B 6339 40P
MAX TOOL DIAMETER: ..............Ø90mm
MAX TOOL DIAMETER: ..............Ø150mm: W/ CONDITIONS
MAX TOOL LENGTH: ................300mm
MAX TOOL WEIGHT: ................17.6 LBS.

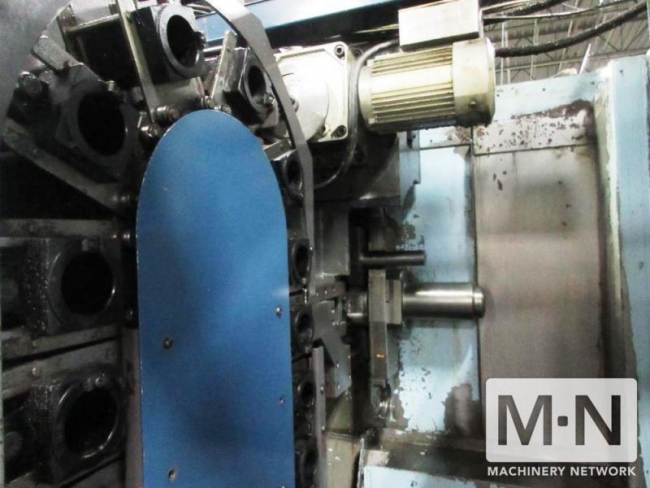

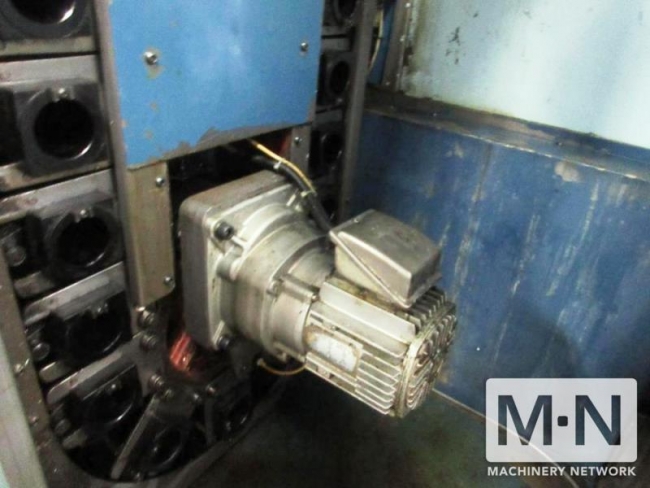

ATC: ............................90 ATC ON 240 BASE
TOOL CHANGE TIME: ...............2.4 SEC.

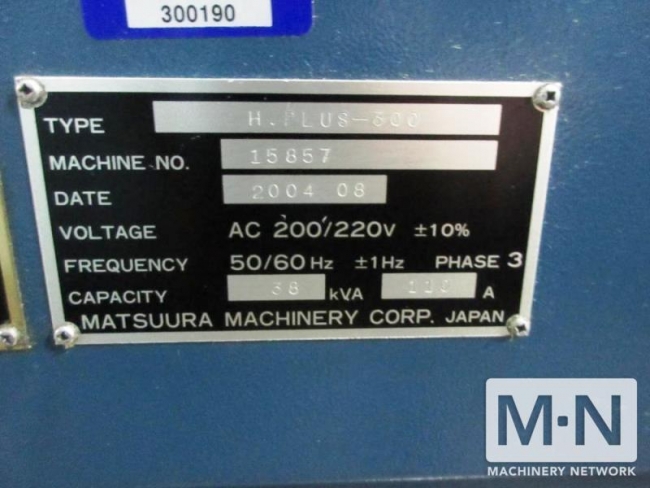

INPUT POWER: ....................42 kVA
VOLTAGE: ........................AC200/220V+-10%
AIR SOURCE: ....................0.54~0.93
REQUIRED AIR VOLUME: ............MAX.350 NL/MIN

EQUIPPED WITH:

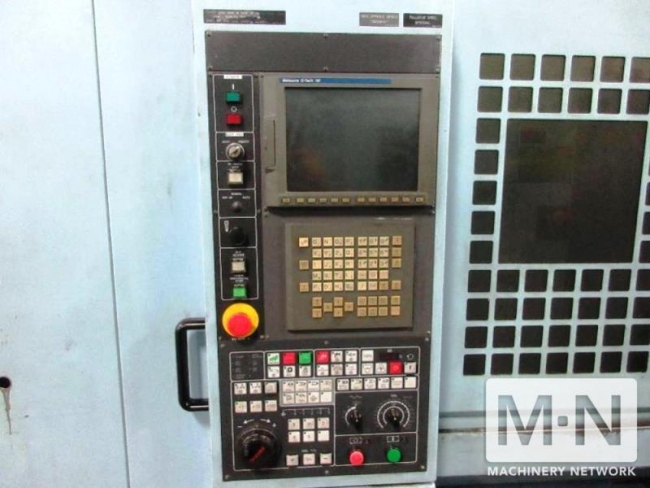

MATSUURA G-TECH 16i CNC CONTROL

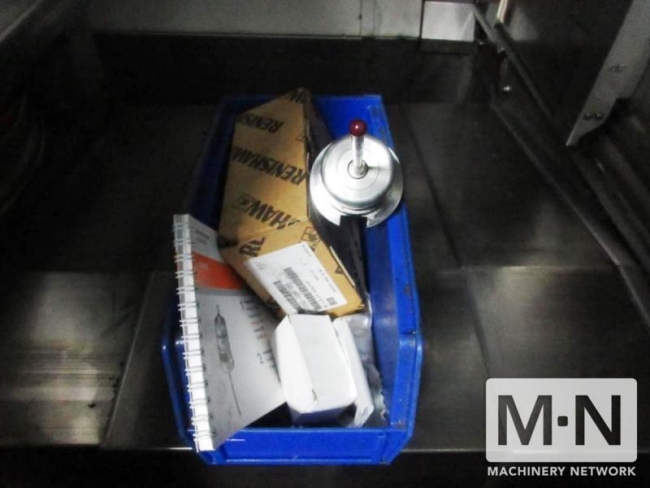

RENISHAW OMP400 PROBE
