MATSUURA MAM72-63V2

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MATSUURA

Model:

MAM72-63V2

Condition:

Not Specified

Year:

2005

Stock #:

34363

Status:

Sold

Description:

Fanuc Series 16i-MB, 15.7” X 15.7” TABLE, 28.9” X 24” X 24”, 50 TOOLS,

Location:

New Hampshire, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

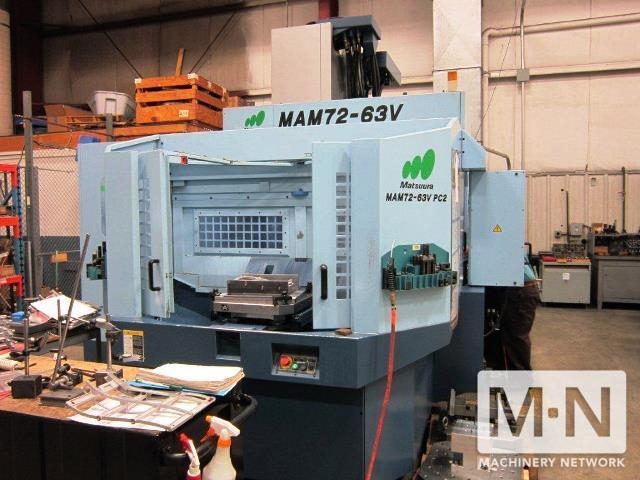

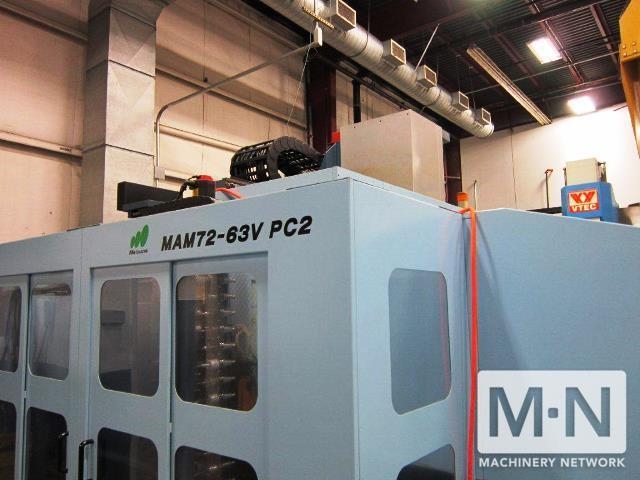

(1) USED MATSUURA MAM72-63V2 5-AXIS TRUNNION CNC VERTICAL MACHINING CENTER
NEW 2005
INSTALLED IN 2006

SPECIFICATIONS:

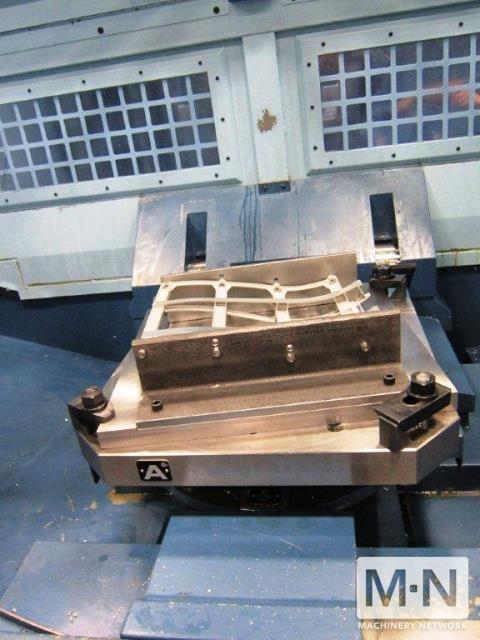

PALLET SIZE.......................... 19.68" X 19.68"
MAX WEIGHT ON PALLETS................ 880 LBS
DUAL AXIS ROTARY TABLES.............. 2 (2 extra 4 total)
TRAVELS
(X).................................. 29.92"
(Y).................................. 33.26"
(Z).................................. 24.01"
(B).................................. 220 DEG
(C)...................................360 (DEG)
TOOL CHANGER..........................90 ATC
TOOL CHANGER EXPANDABLE TO............240 ATC (MAXIMUM)
TOOL CHANGE TIME......................1.1 SECONDS
SPINDLE TAPER.........................BT40
SPINDLE MOTOR........................ 30 HP
SPINDLE SPEED........................ 12,000 RPM
RAPID TRAVERSE (X,Y,Z)............... 1969 IPM
CUTTING FEEDS........................ 1969 IPM
MACHINE WEIGHT....................... 33,000 LBS
FLOOR SPACE DIMS..................... 132" X 246" X 125"H (APPROX.)
CUTTING HOURS.........................10,102 (PROTOTYPE WORK, ALUMINUM AND MILD STEEL)

EQUIPPED WITH:

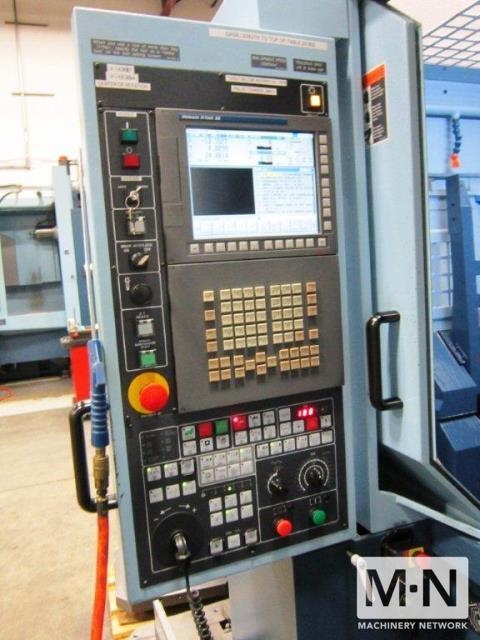

GTECH 30i FANUC (5) AXIS CNC CONTROLS

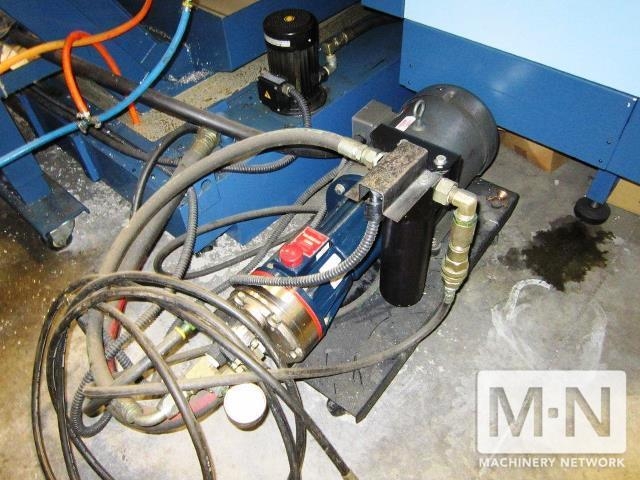

1000 PSI COOLANT THRU SPINDLE

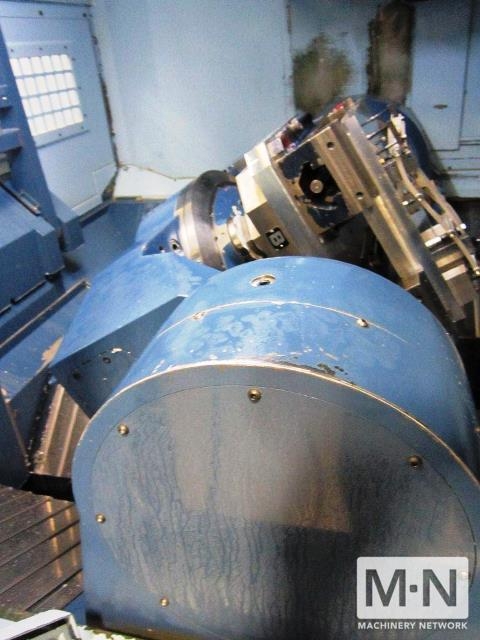

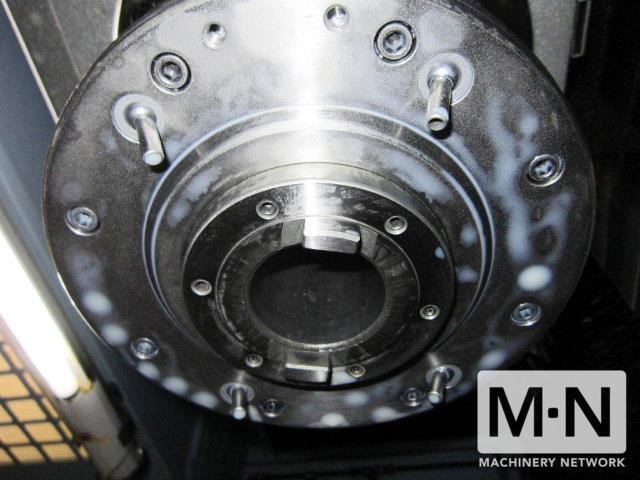

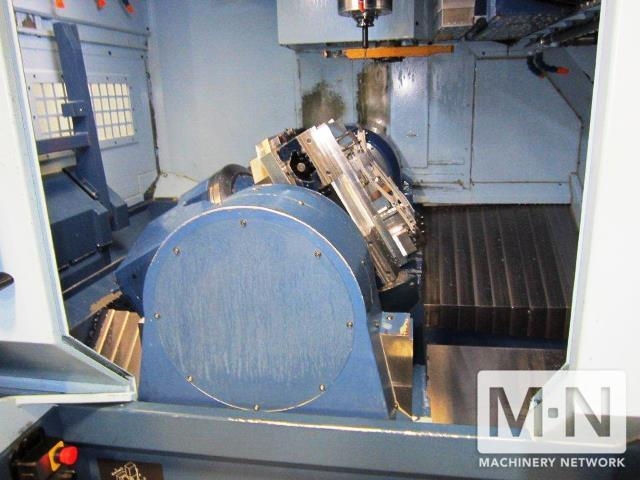

TILTING TRUNNION TABLE
FULL 4TH AXIS (360,000°) ON B AXIS
SPINDLE TAPER BT

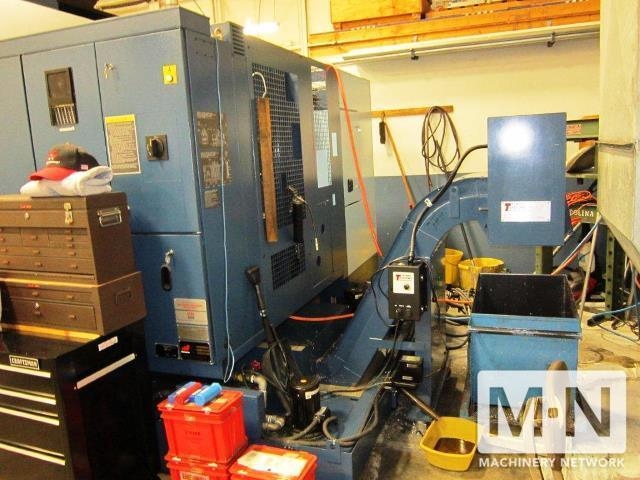

MICRO FINE CHIP CONVEYOR
DATA SERVER
2 Extra Pallets (total of 4)
70 BT40 Tool Holders (also included)
