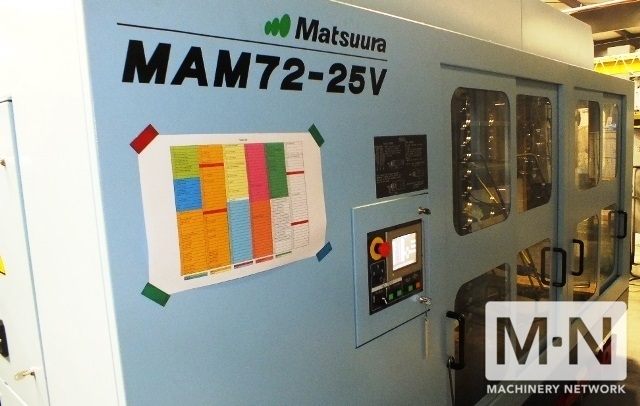

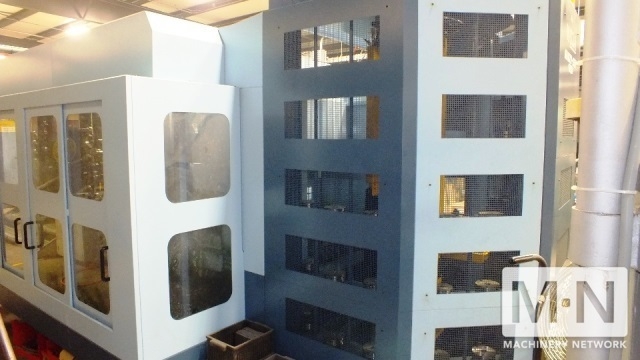

MATSUURA MAM-72-25V
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MATSUURA
Model:
MAM-72-25V
Condition:
Not Specified
Year:
2012
Stock #:
34046
Status:
Sold
Description:
MATSUURA MAM-72-25V, FANUC G TECH, (40) PALLETS, 11.8"X11.8" TABLE, 21"X16"X17",
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

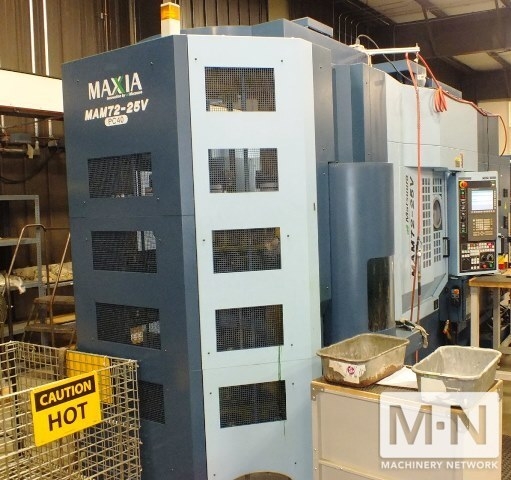

(1) USED MATSUURA MAM 72-25V CNC 5-SIDED VMC
NEW 2012
SPECIFICATIONS:
NUMBER OF PALLETS..................40
TABLE SIZE.........................11.81" X 11.81"
MAX. WORKPIECE LOAD................440 LBS.
TABLE TRAVEL X - AXIS..............21.650"
Y - AXIS...........................16.140"
Z - AXIS...........................17.710"
B1- AXIS...........................175 DEGREES
C1- AXIS...........................360,000 DEGREES
RAPID TRAVERSE RATES...............1968.5 IPM (X, Y,,Z)
B1- AXIS RAPID TRAVERSE............30 RPM
C1- AXIS RAPID TRAVERSE............30 RPM
SPINDLE NOSE...................CAT# 40 BIG KAISER
SPINDLE SPEED......................15,000 RPM
AUTOMATIC TOOL CHANGER CAPACITY....240 ATC
TOOL CHANGE TIME...................1 SEC. TOOL TO TOOL
MAX. TOOL LENGTH...................10.240"
MAX TOOL DIAMETER..................5.90"
MAX. TOOL WEIGHT...................18 LBS.
MAIN MOTOR.........................15 HP AC
MACHINE WEIGHT.....................30,600 LBS.
EQUIPPED WITH:

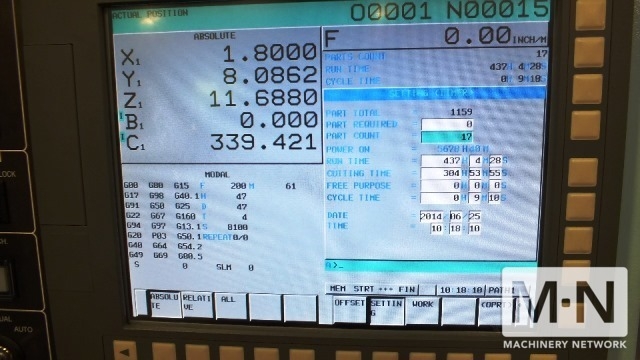

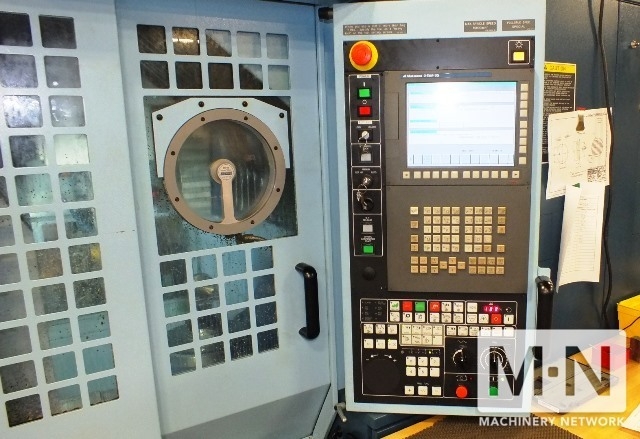

FANUC G-TECH 30I 5-AXIS CNC CONTROL
SPIRAL / CONICAL INTERPOLATION
HOPOTHETICAL AXIS INTERPOLATION
5-AXIS SIMULTANEOUS CONTOURING
POLAR COORDIATE INTERPOLATION
CYLIDRICAL INTERPOLATION
EXPONENTIAL INTERPOLATION
INVOLUTE AND NANO INTERPOLATION
FEED STOP
2 MG REGISTERED PROGRAMS
TOOL OFFSET OPTIONS
ROTARY DYNAMIC TABLE OPTIONS
RETRACE
RIGID TAP BY MANUAL HANDLE
RENISHAW LASER SYSTEM

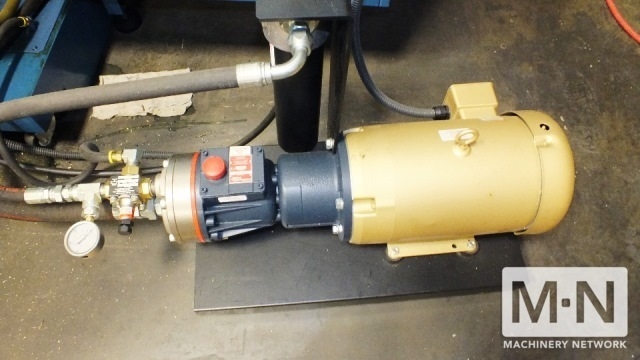

1000 PSI COOLANT THRU SPINDLE SYSTEM
OPTICAL TOUCH PROBE
NEW 2012
SPECIFICATIONS:
NUMBER OF PALLETS..................40
TABLE SIZE.........................11.81" X 11.81"
MAX. WORKPIECE LOAD................440 LBS.
TABLE TRAVEL X - AXIS..............21.650"
Y - AXIS...........................16.140"
Z - AXIS...........................17.710"
B1- AXIS...........................175 DEGREES
C1- AXIS...........................360,000 DEGREES
RAPID TRAVERSE RATES...............1968.5 IPM (X, Y,,Z)
B1- AXIS RAPID TRAVERSE............30 RPM
C1- AXIS RAPID TRAVERSE............30 RPM
SPINDLE NOSE...................CAT# 40 BIG KAISER
SPINDLE SPEED......................15,000 RPM
AUTOMATIC TOOL CHANGER CAPACITY....240 ATC
TOOL CHANGE TIME...................1 SEC. TOOL TO TOOL
MAX. TOOL LENGTH...................10.240"
MAX TOOL DIAMETER..................5.90"
MAX. TOOL WEIGHT...................18 LBS.
MAIN MOTOR.........................15 HP AC
MACHINE WEIGHT.....................30,600 LBS.
EQUIPPED WITH:
FANUC G-TECH 30I 5-AXIS CNC CONTROL
SPIRAL / CONICAL INTERPOLATION
HOPOTHETICAL AXIS INTERPOLATION
5-AXIS SIMULTANEOUS CONTOURING
POLAR COORDIATE INTERPOLATION
CYLIDRICAL INTERPOLATION
EXPONENTIAL INTERPOLATION
INVOLUTE AND NANO INTERPOLATION
FEED STOP
2 MG REGISTERED PROGRAMS
TOOL OFFSET OPTIONS
ROTARY DYNAMIC TABLE OPTIONS
RETRACE
RIGID TAP BY MANUAL HANDLE
RENISHAW LASER SYSTEM
1000 PSI COOLANT THRU SPINDLE SYSTEM
OPTICAL TOUCH PROBE
