DAEWOO LYNX 210A
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
DAEWOO
Model:
LYNX 210A
Condition:
Not Specified
Year:
2004
Stock #:
35740
Status:
Sold
Description:
FANUC i Series CONTROL, 6" HYD CHUCK, TOOL EYE, PARTS CATCHER, CHIP CONVEYOR
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

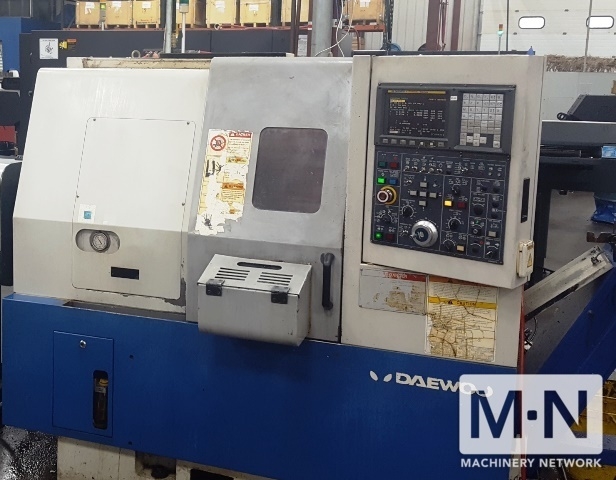

(1) USED LYNX 210A CNC LATHE
NEW 2004
SPECIFICATIONS:
SWING OVER BED: ..................20.1"
SWING OVER CARRIAGE: .............13.7"
X-AXIS TRAVEL: ...................6.3"
Z-AXIS TRAVEL:....................13"
Z AXIS RAPID TRAVERSE RATES: .....945 IPM
MAX BAR CAPACITY: ................1.81"
MAX TURNING DIAMETER: ............11"
MAX TURNING LENGTH: ..............12.7"
SPINDLE SPEEDS: ..................6,000 RPM
SPINDLE MOTOR: ...................15 HP
SPINDLE BORE: ....................2.08"

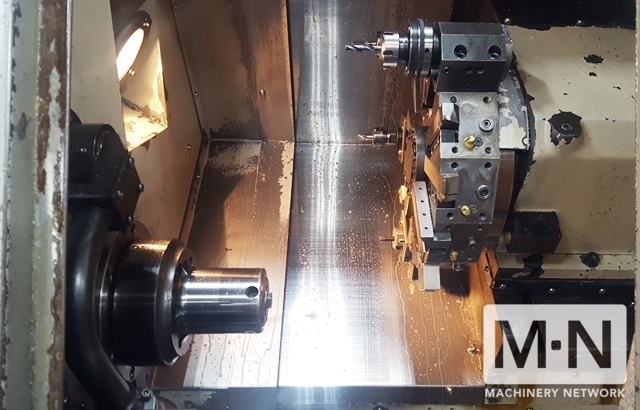

TURRET STATIONS: .................12
MACHINE WEIGHT: ..................7,190 LBS
FLOOR SPACE: .....................71"X63"
EQUIPPED WITH:

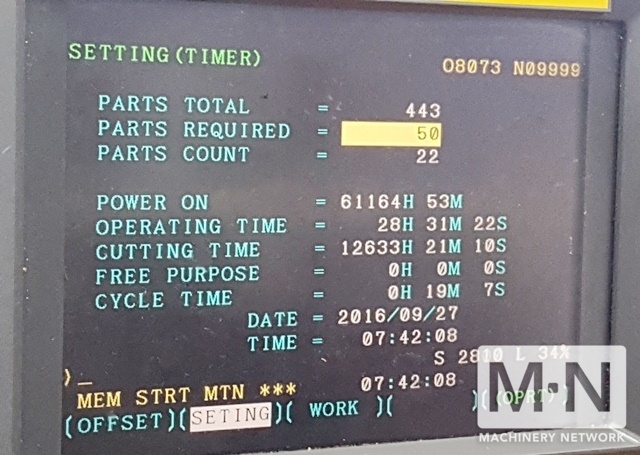

FANUC i Series CONTROL
6" HYD CHUCK(no collet chuck)
TOOL EYE
PARTS CATCHER
CHIP CONVEYOR
NEW 2004
SPECIFICATIONS:
SWING OVER BED: ..................20.1"
SWING OVER CARRIAGE: .............13.7"
X-AXIS TRAVEL: ...................6.3"
Z-AXIS TRAVEL:....................13"
Z AXIS RAPID TRAVERSE RATES: .....945 IPM
MAX BAR CAPACITY: ................1.81"
MAX TURNING DIAMETER: ............11"
MAX TURNING LENGTH: ..............12.7"
SPINDLE SPEEDS: ..................6,000 RPM
SPINDLE MOTOR: ...................15 HP
SPINDLE BORE: ....................2.08"
TURRET STATIONS: .................12
MACHINE WEIGHT: ..................7,190 LBS
FLOOR SPACE: .....................71"X63"
EQUIPPED WITH:
FANUC i Series CONTROL
6" HYD CHUCK(no collet chuck)
TOOL EYE
PARTS CATCHER
CHIP CONVEYOR
