Machinery Network > Used Inventory > DAEWOO PUMA 400

DAEWOO PUMA 400

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

DAEWOO

Model:

PUMA 400

Condition:

Not Specified

Stock #:

34152

Status:

Sold

Description:

**SOLD**DAEWOO PUMA 400,

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

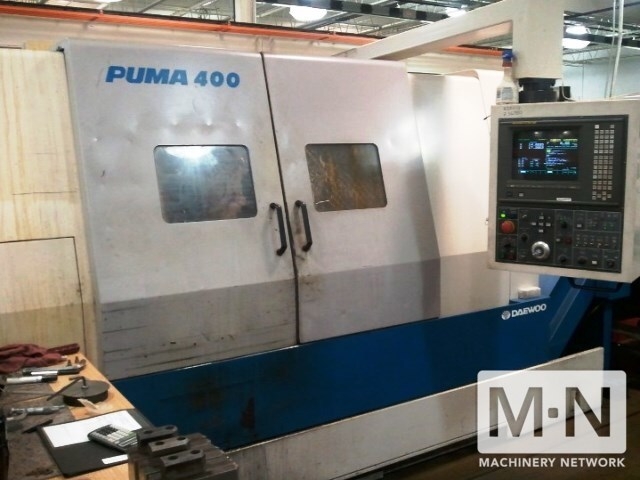

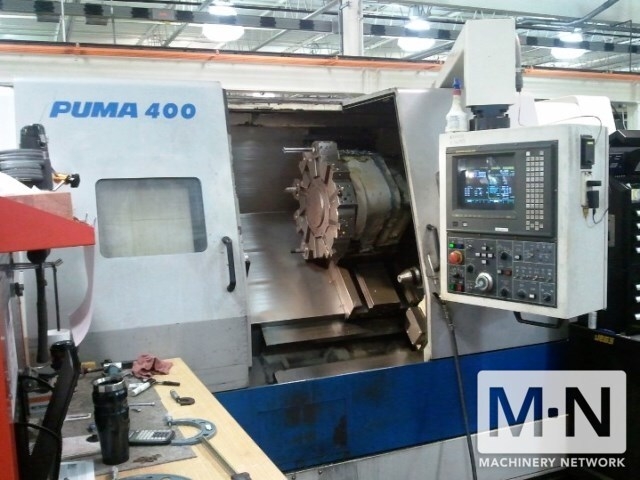

(1) USED DAEWOO PUMA 400 CNC TURNING CENTER
NEW 1998

SPECIFICATIONS:
MAXIMUM SWING OVER BED:................................27.5"
MAXIMUM SWING OVER CARRIAGE:...........................18.9"
MAXIMUM TURNING DIAMETER:...........................21.7"
MAXIMUM TURNING LENGTH:.............................41.1"
TRAVELS
- X-AXIS:...........................14.3"
- Z-AXIS:...........................43.5"
RAPID TRAVERSE RATE
- X-AXIS:...............................630" / MIN.
- Z-AXIS:................................790" / MIN.
SPINDLE BORE:................................5.2"
MAXIMUM BAR CAPACITY:............................4.62"
SPINDLE NOSE:...............................A2 - 11"
SPINDLE SPEEDS:......................2000 RPM
TAILSTOCK QUILL DIAMETER:............4.7"
TAILSTOCK QUILL STROKE:..............4.7"
TAILSTOCK BODY STROKE:...............39.4"
MOTOR:...............................50 HP 3/60
OVERALL DIMENSIONS (APPROX.):........153" X 94"
WEIGHT (EST.):.......................21,200 LBS.

EQUIPPED WITH:

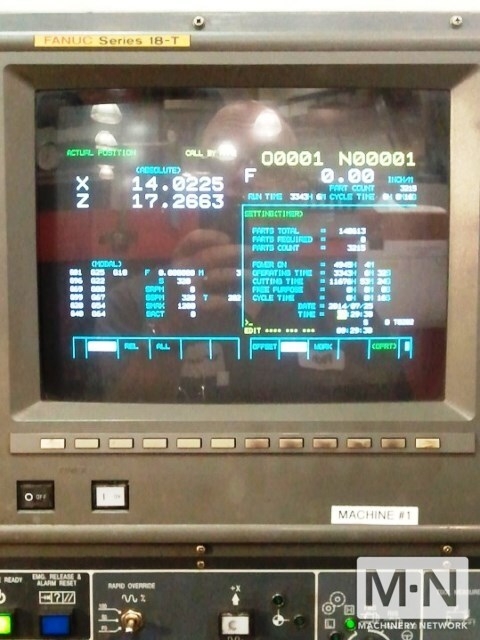

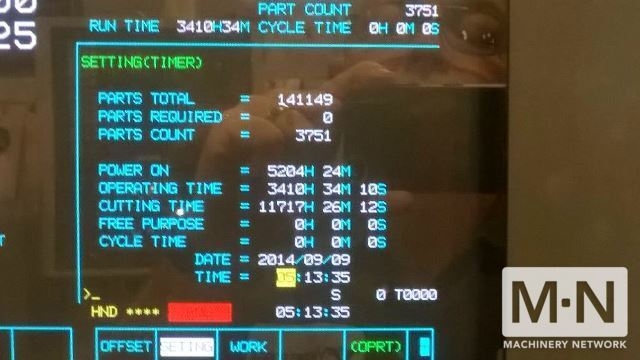

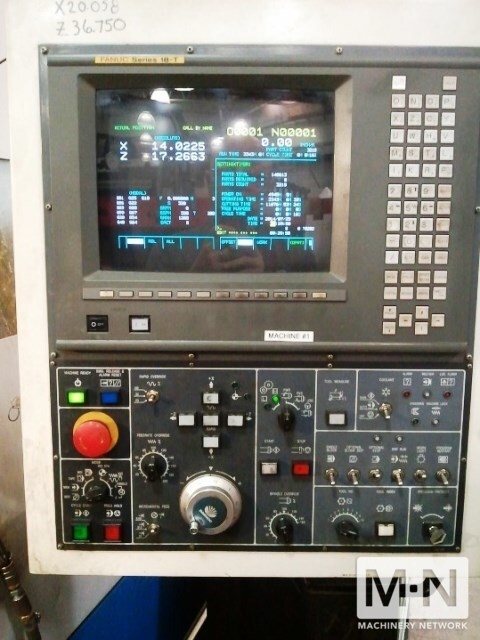

FANUC 18T CNC CONTROL
10-POSIITON BI-DIRECTIONAL TURRET
RS-232 PORT INTERFACE FOR DNC OPERATION

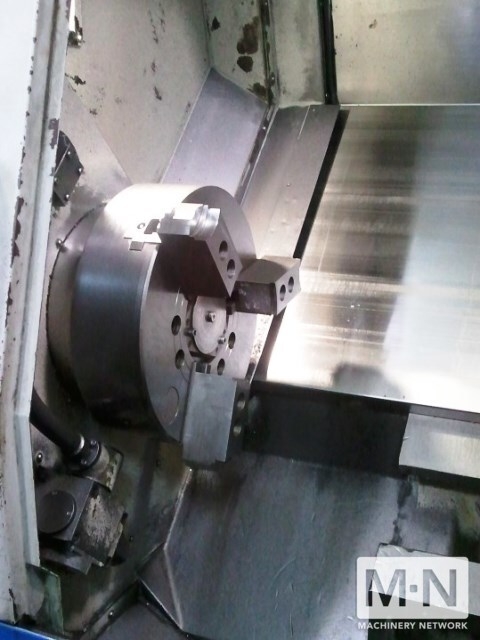

15" 3-JAW HYDRAULIC THROUGH-HOLE CHUCK
AUTOMATIC PARTS CATCHER
RIGHT-HAND DISCHARGE W/ LIFT-UP CHIP CONVEYOR
COOLANT SYSTEM W/ PUMP AND TANK
AUTOMATIC TOOL PRESETTER

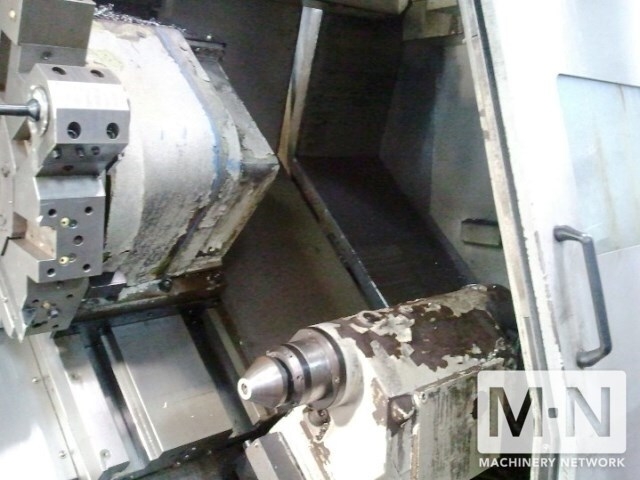

FULLY PROGRAMMABLE TAILSTOCK AND QUILL
BOX WAY CONSTRUCTION
ON LOCATION, PLANT SITE
