DAEWOO PUMA 250MB
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
DAEWOO
Model:
PUMA 250MB
Condition:
Not Specified
Year:
1998
Stock #:
20669
Status:
Sold
Description:
*INV* F-18T, LIVE TOOL, 3" HTS, 12 ATC, TLSTK, t/p .cc
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

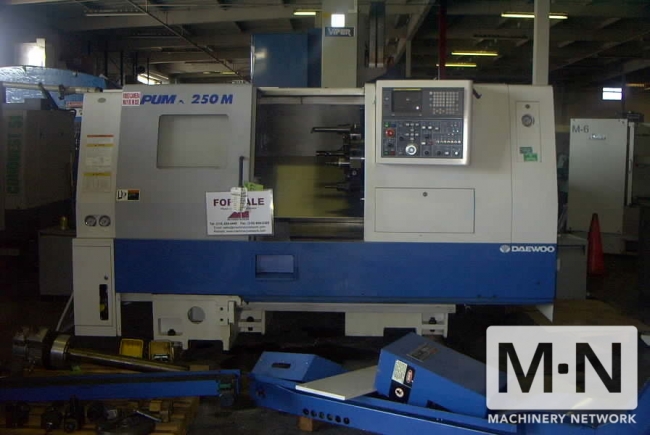

(1) USED DAEWOO PUMA 250MB CNC 3-AXIS TURNING
CENTER NEW 1998, S/N: SN:925M0108
SPECIFICATIONS:
SWING OVER BED: 22.4"
SWING OVER SADDLE: 14.5"
DISTANCE BETWEEN CENTERS: 27.1"
MAX. MACHINING DIAMETER: 14"
MAX TURNING LENGTH: 25.6"
TRAVELS X-AXIS: 11.1"
Z-AXIS: 26.8"
C-AXIS: 0.01 DEGREE
CHUCK DIAMETER: 10"
SPINDLE SPEED: 35-3500 RPM
SPINDLE MOTOR: 25/30 HP
SPINDLE TAPER: A2-8
SPINDLE BORE: 3.54"
DRAW TUBE ID: 3.03"
TOOL STATIONS: 12 (VDI)
ROTARY TOOL SPEED RANGE: 40-4000 RPM
ROTARY TOOL MOTOR: 3 / 5 HP
RAPID TRAVERSE RATE (X/Z): 800 / 945 IPM
CUTTING FEED: 0-20 IPR
POWER REQUIREMENTS: 50 kVA
MACHINE DIMENSIONS: 130" X 69" X 71.6"
MACHINE WEIGHT: 12990 LBS
EQUIPPED WITH:
FANUC 18T CNC CONTROL

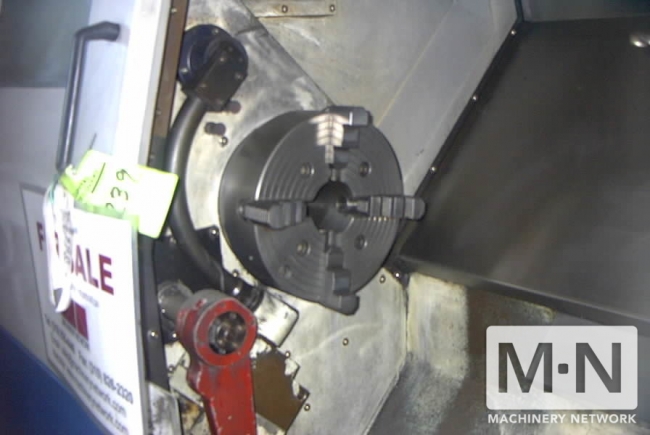

10" 4 JAW & 10" 3 JAW CHUCKS

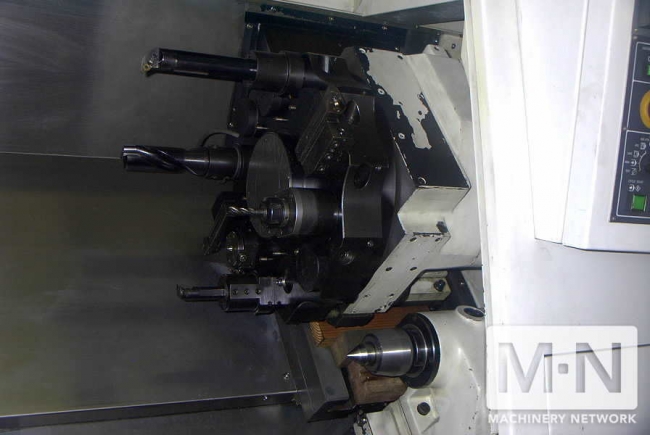

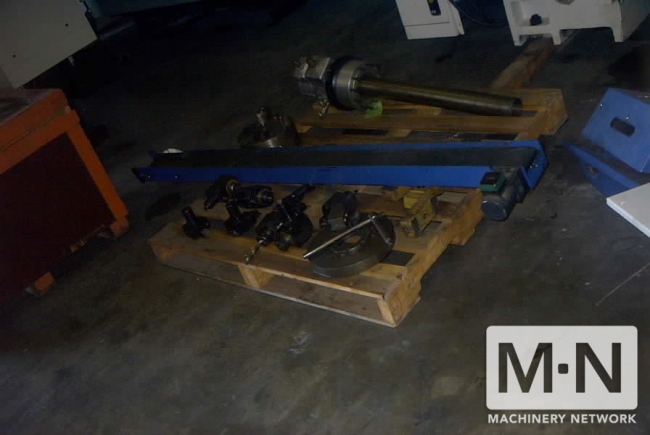

(5) LIVE TOOLS, (9) ID/OD TOOL HOLDERS
TOOL PRE-SETTER
FULLY PROGRAMMABLE TAILSTOCK
TRANSFORMER,220 volts

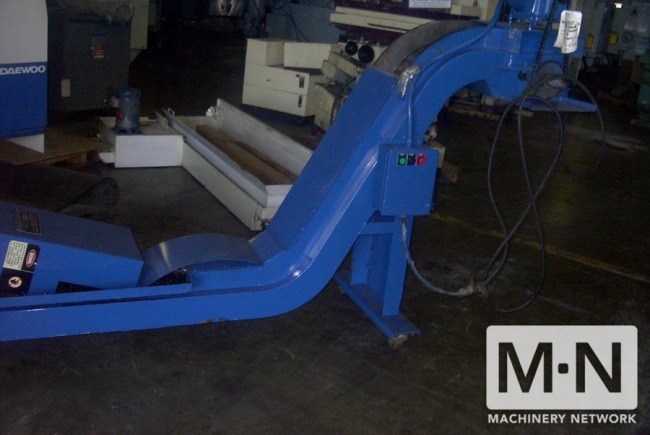

CHIP CONVEYOR
PRICE:
PRICE
CENTER NEW 1998, S/N: SN:925M0108
SPECIFICATIONS:
SWING OVER BED: 22.4"
SWING OVER SADDLE: 14.5"
DISTANCE BETWEEN CENTERS: 27.1"
MAX. MACHINING DIAMETER: 14"
MAX TURNING LENGTH: 25.6"
TRAVELS X-AXIS: 11.1"
Z-AXIS: 26.8"
C-AXIS: 0.01 DEGREE
CHUCK DIAMETER: 10"
SPINDLE SPEED: 35-3500 RPM
SPINDLE MOTOR: 25/30 HP
SPINDLE TAPER: A2-8
SPINDLE BORE: 3.54"
DRAW TUBE ID: 3.03"
TOOL STATIONS: 12 (VDI)
ROTARY TOOL SPEED RANGE: 40-4000 RPM
ROTARY TOOL MOTOR: 3 / 5 HP
RAPID TRAVERSE RATE (X/Z): 800 / 945 IPM
CUTTING FEED: 0-20 IPR
POWER REQUIREMENTS: 50 kVA
MACHINE DIMENSIONS: 130" X 69" X 71.6"
MACHINE WEIGHT: 12990 LBS
EQUIPPED WITH:
FANUC 18T CNC CONTROL
10" 4 JAW & 10" 3 JAW CHUCKS
(5) LIVE TOOLS, (9) ID/OD TOOL HOLDERS
TOOL PRE-SETTER
FULLY PROGRAMMABLE TAILSTOCK
TRANSFORMER,220 volts
CHIP CONVEYOR
PRICE:
PRICE
