CINCINNATI H5-800MT GEMINEX
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
CINCINNATI
Model:
H5-800MT GEMINEX
Condition:
Not Specified
Year:
2003
Stock #:
34942
Status:
Sold
Description:
CINCINNATI LAMB CNC MILL & TURN, ACRA 2100,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

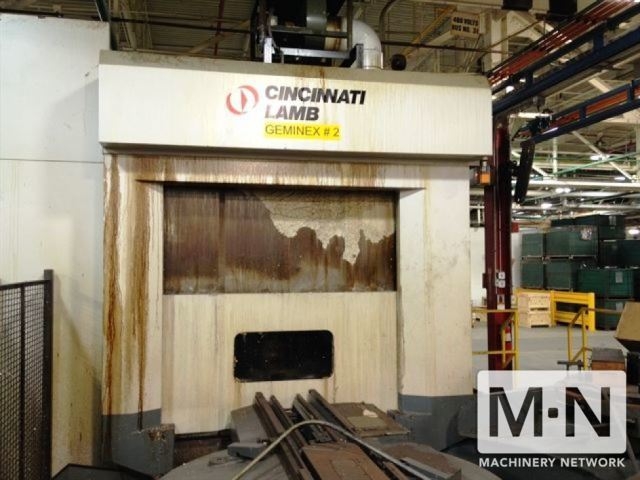

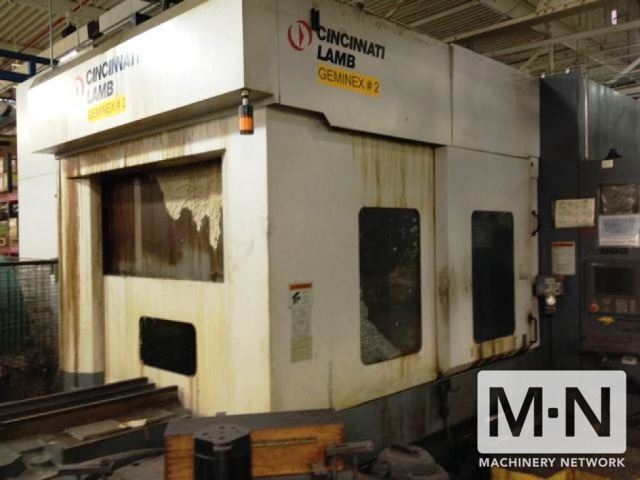

(1) USED CINCINNATI GEMINEX MAGNUM H5-800 7-AXIS CNC MILL/TURN MACHINING CENTER
NEW 2004
SPECIFICATIONS:
CHUCK/PALLET DIAMETER ...........30"
NUMBER OF PALLETS .............. 4
TRAVELS -
X AXIS........................... 61"
- Y AXIS ........................ 47.3"
- Z AXIS ........................ 47.2"
- A AXIS ........................ 180 DEG (+60/-120)
- B AXIS ....................... 0.001, 360,000 POSITION
MAX. WORK PIECE DIAMETER ....... 51.2"
MAX WORK PIECE HEIGHT .......... 50.2"
CHUCK/PALLET ROTATION SPEED .....700 RPM
MAX SPINDLE SPEED .............. 6,000 RPM
SPINDLE TAPER........... BIG CAT 50
SPINDLE MOTOR .................. 40 HP
TOOL CHANGER CAPACITY .......... 120 TOOLS
EQUIPPED WITH:
CINCINNATI ACRAMATIC A2100 CNC CONTROL
HIGH PRESSURE COOLANT THRU THE SPINDLE

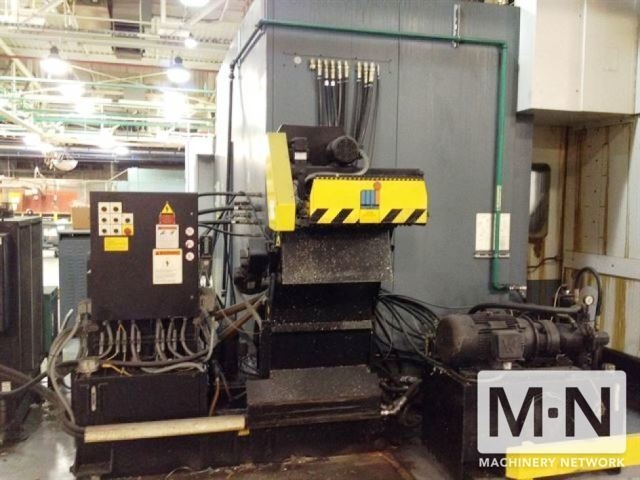

CHIP CONVEYOR
F.A.S.T. TOOLING ARTIFACT
SMOG HOG
NEW 2004
SPECIFICATIONS:
CHUCK/PALLET DIAMETER ...........30"
NUMBER OF PALLETS .............. 4
TRAVELS -
X AXIS........................... 61"
- Y AXIS ........................ 47.3"
- Z AXIS ........................ 47.2"
- A AXIS ........................ 180 DEG (+60/-120)
- B AXIS ....................... 0.001, 360,000 POSITION
MAX. WORK PIECE DIAMETER ....... 51.2"
MAX WORK PIECE HEIGHT .......... 50.2"
CHUCK/PALLET ROTATION SPEED .....700 RPM
MAX SPINDLE SPEED .............. 6,000 RPM
SPINDLE TAPER........... BIG CAT 50
SPINDLE MOTOR .................. 40 HP
TOOL CHANGER CAPACITY .......... 120 TOOLS
EQUIPPED WITH:
CINCINNATI ACRAMATIC A2100 CNC CONTROL
HIGH PRESSURE COOLANT THRU THE SPINDLE
CHIP CONVEYOR
F.A.S.T. TOOLING ARTIFACT
SMOG HOG
