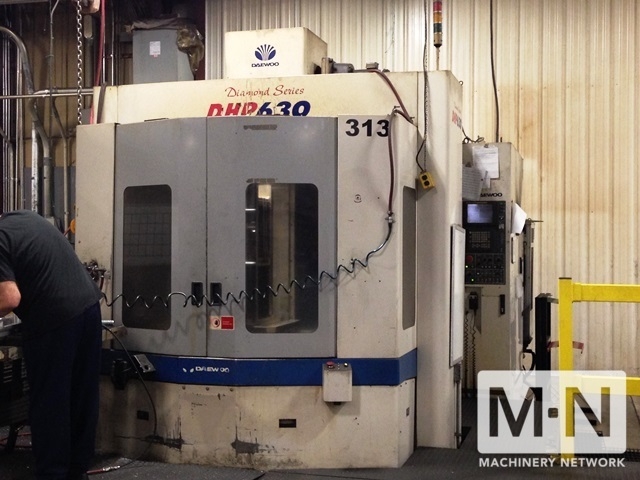

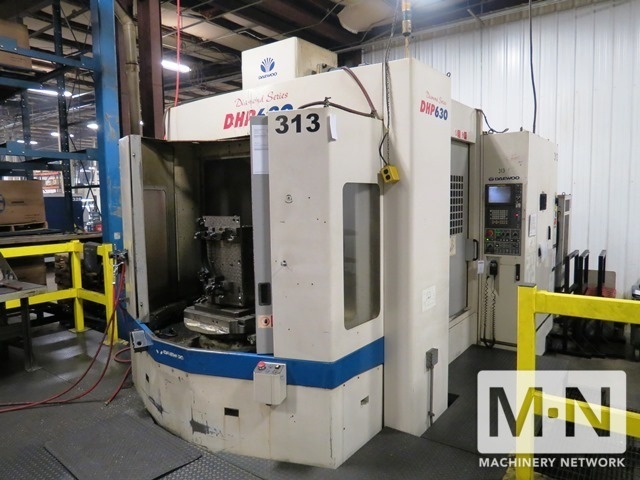

DAEWOO DHP630
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
DAEWOO
Model:
DHP630
Condition:
Not Specified
Year:
2001
Stock #:
34466
Status:
Sold
Description:
Fanuc 16iMB, Twin 24. Pallets, 39.4x33.6x33.5, 12K RPM, Cat 50, 60 ATC, Coolant Thru Spindle, Chip Conveyor
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED DAEWOO DHP-630 CNC HORIZONTAL MACHINING CENTER
NEW 2001
SPECIFICATIONS
PALLET SIZE:...........(2) 24" PALLETS
TRAVELS
X AXIS:................39.4"
Y AXIS:................33"
Z AXIS:................33"
B AXIS:................1 DEG/360 POS.
MAX SPINDLE SPEED:.....12,000 RPM
SPINDLE MOTOR:.........40 HP
RAPID TRAVERSE X,Y,Z,:.1,260 IPM
SPINDLE TAPER:........CAT 50
ATC CAPACITY:..........60 TOOLS
MACHINE DIMENSIONS:....212" X 138" X 135"
MACHINE WEIGHT:........45,200 LBS
EQUIPPED WITH:
FANUC 16IMB CNC CONTROL
COOLANT THRU THE SPINDLE
CHIP CONVEYOR
NEW 2001
SPECIFICATIONS
PALLET SIZE:...........(2) 24" PALLETS
TRAVELS
X AXIS:................39.4"
Y AXIS:................33"
Z AXIS:................33"
B AXIS:................1 DEG/360 POS.
MAX SPINDLE SPEED:.....12,000 RPM
SPINDLE MOTOR:.........40 HP
RAPID TRAVERSE X,Y,Z,:.1,260 IPM
SPINDLE TAPER:........CAT 50
ATC CAPACITY:..........60 TOOLS
MACHINE DIMENSIONS:....212" X 138" X 135"
MACHINE WEIGHT:........45,200 LBS
EQUIPPED WITH:
FANUC 16IMB CNC CONTROL
COOLANT THRU THE SPINDLE
CHIP CONVEYOR
