MULTICAM 3-204R
Type:
ROUTERS, N/C & CNC
Manufacturer:
MULTICAM
Model:
3-204R
Condition:
Not Specified
Stock #:
34326
Status:
Sold
Description:

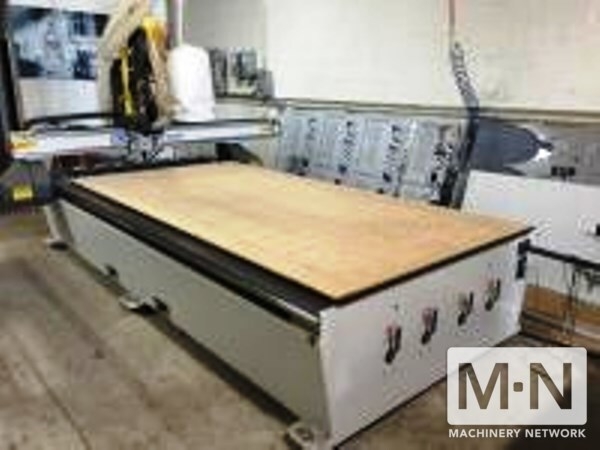

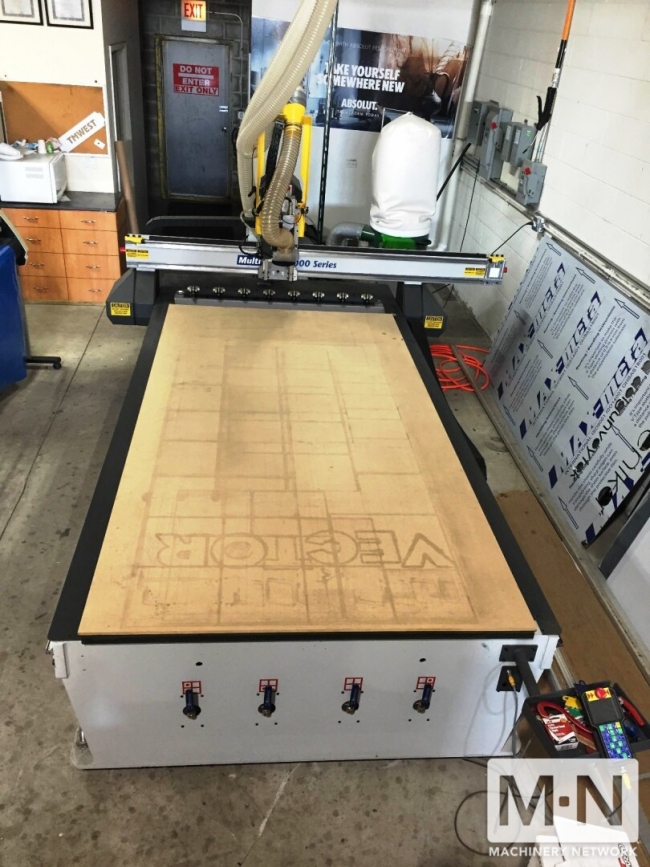

MULTICAM 5' X 10'
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

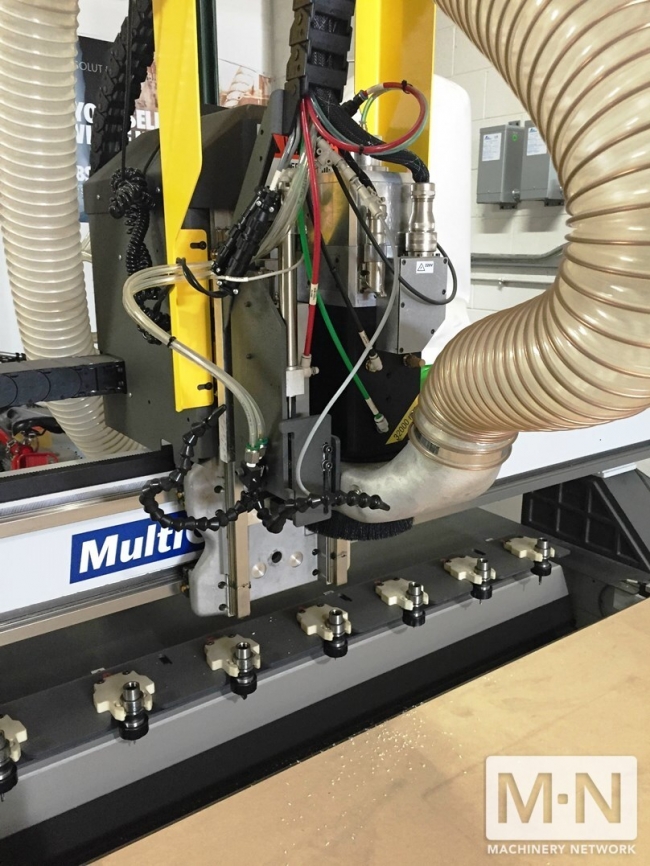

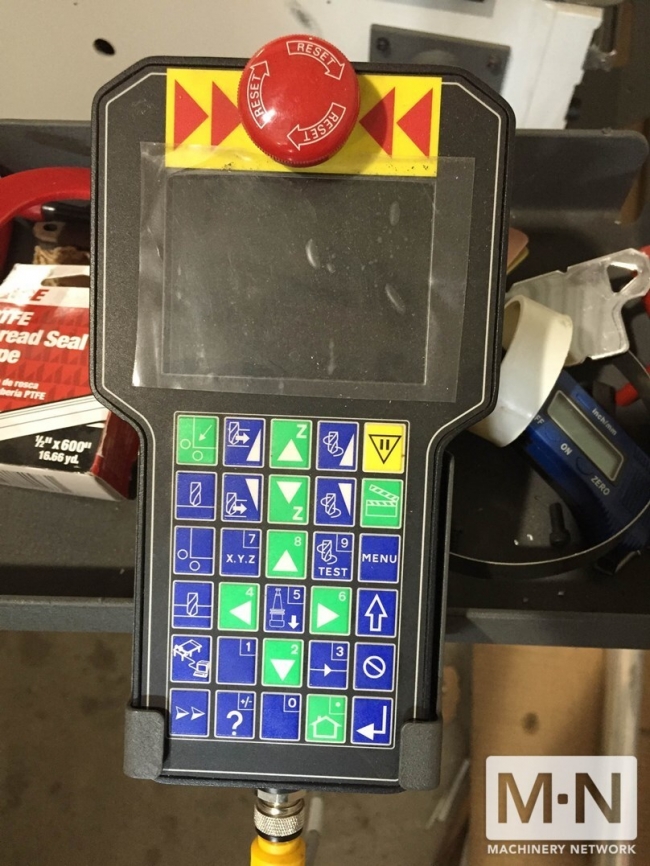

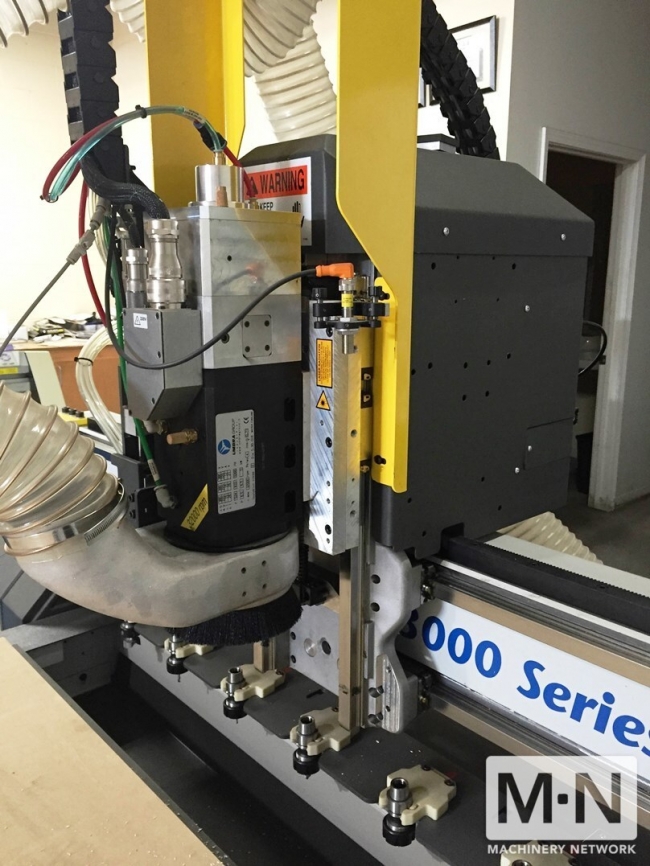

MultiCam 3-204-R process area 60' x 120' with full spindle coverage New in 2013 With under 50 hours of total use! Teknic digital servo drives with brushless AC servo motors traverse speed 2,500 IPM Dual driven moving gantry with 25 MM linear rails & four (4) bearing cars each axis Umbra 5.5 HP billet type HSKE32 automatic tool change spindle 32,000 RPM Eight (8) position linear tool change with automatic tool calibration Dust collection hood for chip extraction Laser pointer 12mm red 3 mW with cross hairs Unist auto misting with twin flexible hoses & nozzles Extended gantry provides additional coverage in Y axis Gantry rotary ATC ready Four (4) zone work table 1' thick phenolic with manual valves Material hold down - 17 HP 2 stage vacuum pump w/ valve and filter (13 Inches Hg 335 cfm) MultiCam EZ Control with hand held keypad HMI (Human Machine Interface) EnRoute 5 Pro 3D design & machining software includes Rapid Texture Machine weight 5,170 lbs Standard electrical 208/240V 3 Phase
They paid just under $80k when new. For further informationplease call Harvey Geller at 714-968-9985
They paid just under $80k when new. For further informationplease call Harvey Geller at 714-968-9985
