HAAS SR-100

Type:

ROUTERS, N/C & CNC

Manufacturer:

HAAS

Model:

SR-100

Condition:

Not Specified

Year:

2013

Stock #:

33283

Status:

Sold

Description:

HAAS SR-100 CNC ROUTER, 100"X52"X8", ISO 30 TAPER, 24K RPM

Location:

Washington, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED HAAS SR-100 CNC ROUTER NEW 2013
SPECIFICATIONS: X-AXIS TRAVEL: ...................... 100" Y-AXIS TRAVEL: ...................... 52" Z-AXIS TRAVEL: 8" SPINDLE NOSE TO TABLE TOP: .......... 3" - 11" TABLE SIZE: ......................... 96" X 48" TABLE THICKNESS: .................... 1" BETWEEN COLUMNS: .................... 62.5" BRIDGE TO TABLE CLEARANCE: .......... 6.25" TOOL CHANGER: ....................... 10 POCKET SPINDLE SPEED: ...................... 24,000 RPM SPINDLE TAPER: ...................... ISO 30 SPINDLE MOTOR: .............................. 8.9 HP MAX CUTTING SPEED: .................. 1000 IPM X-AXIS RAPID TRAVERSE: .............. 2000 IPM Y-AXIS RAPID TRAVERSE: .............. 2000 IPM Z-AXIS RAPID TRAVERSE: .............. 590 IPM MACHINE DIMENSIONS: ................. 123" X 159" X 69" MACHINE WEIGHT: ..................... 2800 LBS

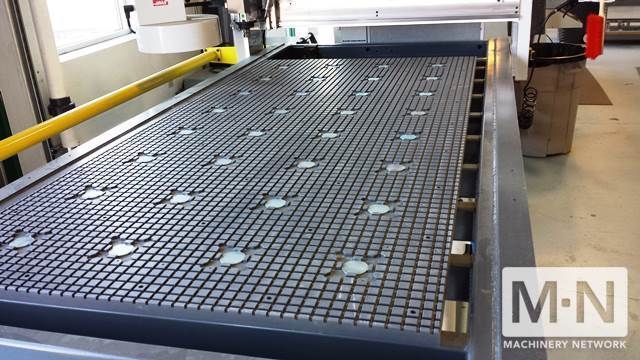

EQUIPPED WITH: USB PORT 10 STATION UMBRELLA TOOL CHANGER AUTO AIR GUN VACUUM TABLE- DOESN’T INCLUDE VACUUM PUMP MUST BUY PUMP SEPARATE ETHERNET CUSTOM MACROS REMOTE JOG HANDLE EXTERNAL TRANSFORMER FOR 480 POWER
