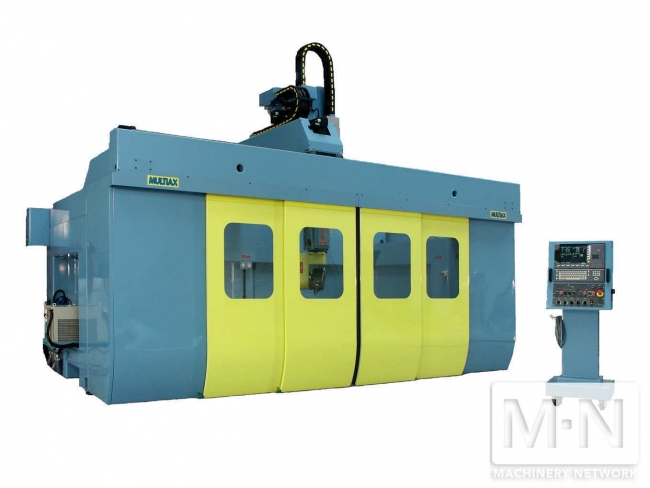

MULTIAX MULTIAX T 3616 CNC ROUTER

Type:

ROUTERS, N/C & CNC

Manufacturer:

MULTIAX

Model:

MULTIAX T 3616 CNC ROUTER

Condition:

Not Specified

Year:

2018

Stock #:

36884

Status:

Sold

Description:

5 axis 142" x 102.3 x 47.3" +/- 120 degrees x +/- 360 degrees Fanuc control Multiax T 1105 3616

Location:

Michigan, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) BRAND NEW MULTIAXS MODEL T 1105 3616 WITH FANUC CONTROL

STROKE-RAPID TRAVERSE

X/3,600 — 84 meters/min (142”-3307”min)
Y/1,800 — 84 meters/min (70.8”-3307”min)
Z/1,200 — 40 meters/min (47.24”-1574”min)
ROTATION A Axis +/-120 degrees 30 rpm
C Axis +/-360 degrees 30 rpm
CONSTRUCTION Moving bridge type

TABLE SIZE
3,640 mm x 1,540 mm. (143”X 60”) table

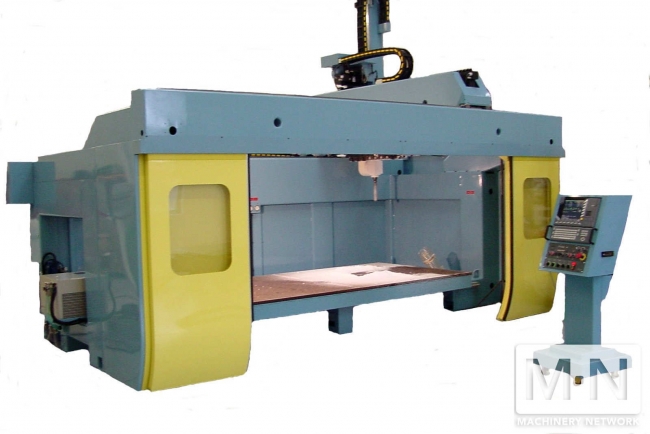

TABLE TYPE The work table is 3,640 x 1,540 mm open steel frame with M8
threaded holes on 600 x 300 mm centers, complete with one
removable center safety wall.

TABLE MANIFOLDS Twin 10 place vacuum manifolds
VACUUM PUMP TYPE No vacuum pump included

MAIN SPINDLE 10 kW, 13 hp, from 1,000 to 24,000 rpm
ATC 8 tool changing magazine
8 tool holders HSK 63 F with CCT treatment
8 collets
COOLING SYSTEM Liquid/refrigerator
INVERTER 11 kW up to 24.000 rpm

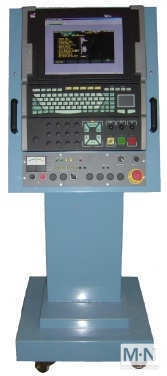

C.N.C. FANUC CONTROL
helical interpolation,

LUBRICATION SYSTEM Automatic by oil
MACHINE COLOR Blue/yellow Multiax standard.
SAFETY DEVICES Complete machine enclosure with two CNC controllable doors in
front of the machine.
