KITAKO HS4200N
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
KITAKO
Model:
HS4200N
Condition:
Not Specified
Year:
2010
Stock #:
33936
Status:
Sold
Description:

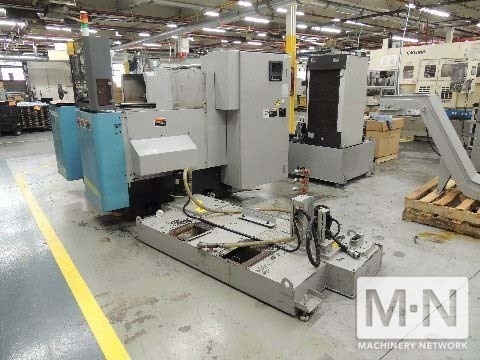

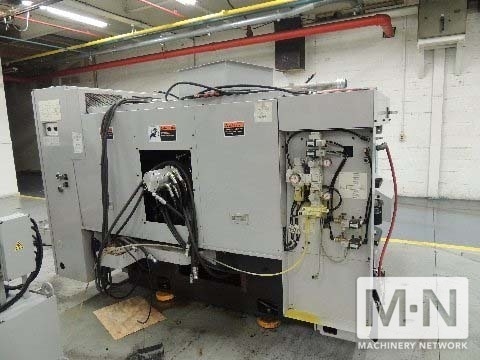

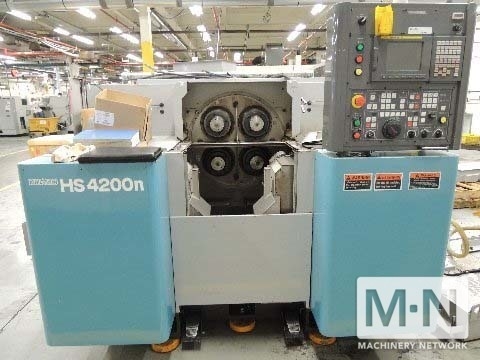

KITAKO HS4200N 4-SPINDLE 2-AXIS CNC TURNING LATHE
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED KITAKO HS4200N 4-SPINDLE 2-AXIS CNC TURNING LATHE*
NEW 2010
SPECIFICATIONS:
CHUCK SIZE .................8"

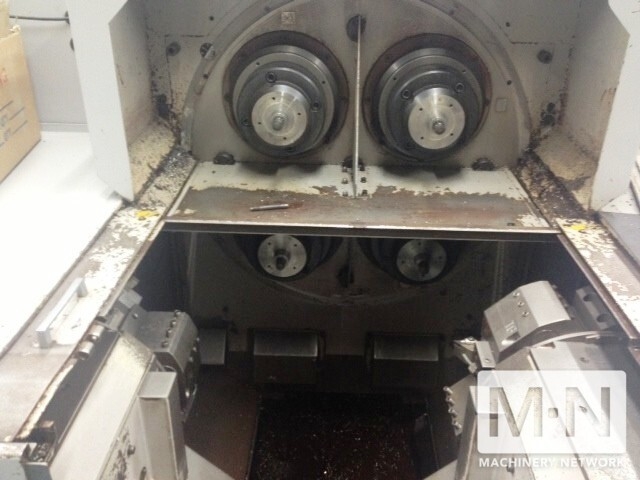

NUMBER OF SPINDLES .........4
SPINDLE NOSE ..............A2-6
SPINDLE SPEED RANGE ........45 - 4,500 RPM
CARRIER INDEX ..............1.5 SECONDS / 180
X-AXIS TRAVEL ..............6.3"
Z-AXIS TRAVEL ..............9.8"
RAPID TRAVERSE X-AXIS ......945 IPM
RAPID TRAVERSE Z-AXIS ......1181 IPM
TURNING DIAMETER - MAXIMUM .7.8"
TURNING LENGTH - MAXIMUM ...4"
MAIN MOTOR .................20 HP X 2
TURRET .....................8 STATION X 2
TOOL SIZE - OD .............1" SQUARED
TOOL SIZE - ID .............1-1/2" DIAMETER
EQUIPPED WITH:

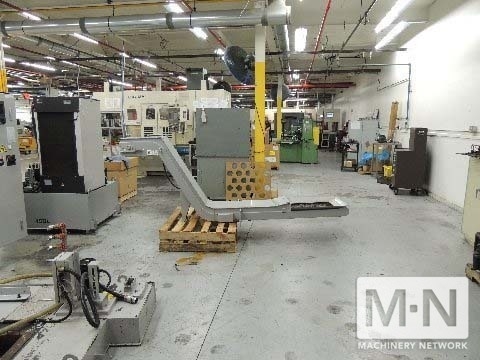

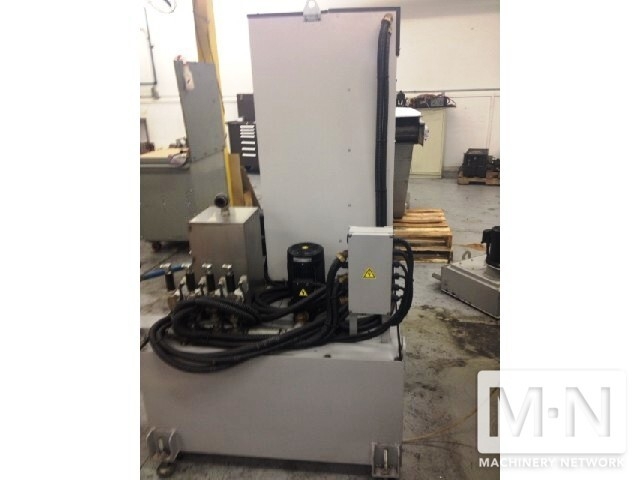

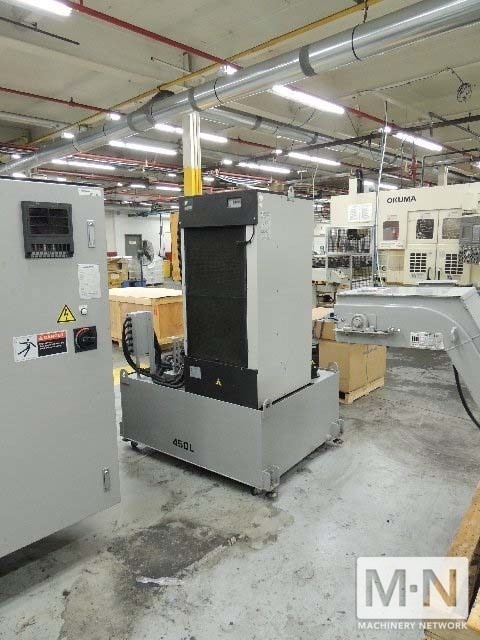

(4) 8" HYDRAULIC CHUCKS; SPLASH GUARD, COOLANT SYSTEM, CHUCK AIR BLAST, CHIP
CONVEYOR, COOLANT CHILLER, MICRO B OPTION RS 232 PORT INTERFACE, TOOLING &
MANUALS
NEW 2010
SPECIFICATIONS:
CHUCK SIZE .................8"
NUMBER OF SPINDLES .........4
SPINDLE NOSE ..............A2-6
SPINDLE SPEED RANGE ........45 - 4,500 RPM
CARRIER INDEX ..............1.5 SECONDS / 180
X-AXIS TRAVEL ..............6.3"
Z-AXIS TRAVEL ..............9.8"
RAPID TRAVERSE X-AXIS ......945 IPM
RAPID TRAVERSE Z-AXIS ......1181 IPM
TURNING DIAMETER - MAXIMUM .7.8"
TURNING LENGTH - MAXIMUM ...4"
MAIN MOTOR .................20 HP X 2
TURRET .....................8 STATION X 2
TOOL SIZE - OD .............1" SQUARED
TOOL SIZE - ID .............1-1/2" DIAMETER
EQUIPPED WITH:
(4) 8" HYDRAULIC CHUCKS; SPLASH GUARD, COOLANT SYSTEM, CHUCK AIR BLAST, CHIP
CONVEYOR, COOLANT CHILLER, MICRO B OPTION RS 232 PORT INTERFACE, TOOLING &
MANUALS
