HAAS SL-10
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HAAS
Model:
SL-10
Condition:
Not Specified
Year:
2006
Stock #:
33492
Status:
Sold
Description:
HAAS SL-10, 1.7" Bar Cap, 6K RPM, 15 HP, Tool Presetter, Chip Conveyor, Tail Stock, 2006, 33492
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

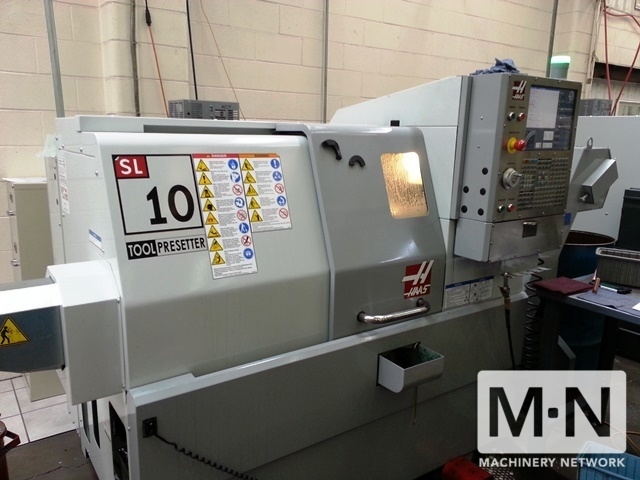

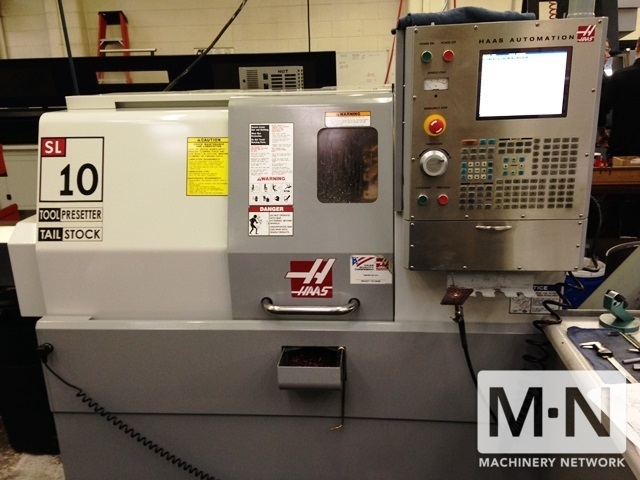

(1) USED HAAS SL-10 CNC TURNING CENTER
NEW: 2006
SPECIFICATIONS: SWING OVER FRONT APRON: ......... 16.25" SWING OVER CROSS SLIDE: ......... 8" MAXIMUM CUTTING LENGTH: ......... 14"
CHUCK SIZE: ..................... 6" X AXIS TRAVEL: .................. 6.25" Z AXIS TRAVEL: .................. 14" RAPID TRAVERSE RATE ALL AXES: ... 1200 IPM SPINDLE NOSE: ................... A2-5 SPINDLE SPEED: .................. 6000 RPM SPNDLE BORE: .................... 2.31" MAX. BAR CAPACITY: .............. 1.75" SPINDLE MOTOR: .................. 15 HP TURRET CAPACITY: ................ 12 STATIONS APPROX. DIMENSIONS: ............. 92" X 55" X 70" MACHINE WEIGHT (APPROX): ........ 5500 LBS
EQUIPPED WITH: TOOL PRESETTER CHIP AUGER
TAIL STOCK
VISUAL QUICK CODE
BARFEED INTERFACE
SPINDLE ORIENTATION
PARTS CATCHER
LOCATION: IN PLANT UNDER POWER HOURS: SERVO TIME - 10,995 IN MOTION - 5,885 SPINDLE - 6,817
NEW: 2006
SPECIFICATIONS: SWING OVER FRONT APRON: ......... 16.25" SWING OVER CROSS SLIDE: ......... 8" MAXIMUM CUTTING LENGTH: ......... 14"
CHUCK SIZE: ..................... 6" X AXIS TRAVEL: .................. 6.25" Z AXIS TRAVEL: .................. 14" RAPID TRAVERSE RATE ALL AXES: ... 1200 IPM SPINDLE NOSE: ................... A2-5 SPINDLE SPEED: .................. 6000 RPM SPNDLE BORE: .................... 2.31" MAX. BAR CAPACITY: .............. 1.75" SPINDLE MOTOR: .................. 15 HP TURRET CAPACITY: ................ 12 STATIONS APPROX. DIMENSIONS: ............. 92" X 55" X 70" MACHINE WEIGHT (APPROX): ........ 5500 LBS
EQUIPPED WITH: TOOL PRESETTER CHIP AUGER
TAIL STOCK
VISUAL QUICK CODE
BARFEED INTERFACE
SPINDLE ORIENTATION
PARTS CATCHER
LOCATION: IN PLANT UNDER POWER HOURS: SERVO TIME - 10,995 IN MOTION - 5,885 SPINDLE - 6,817
