HAAS SL-40TB

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

HAAS

Model:

SL-40TB

Condition:

Not Specified

Year:

2005

Stock #:

33242

Status:

Sold

Description:

HAAS SL 40TB (BIG BORE), 7" BORE, 18" 3-JAW HYDRAULIC CHUCK

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

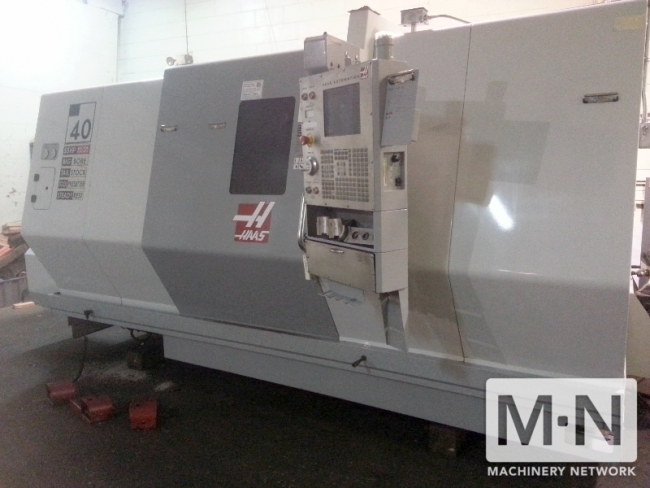

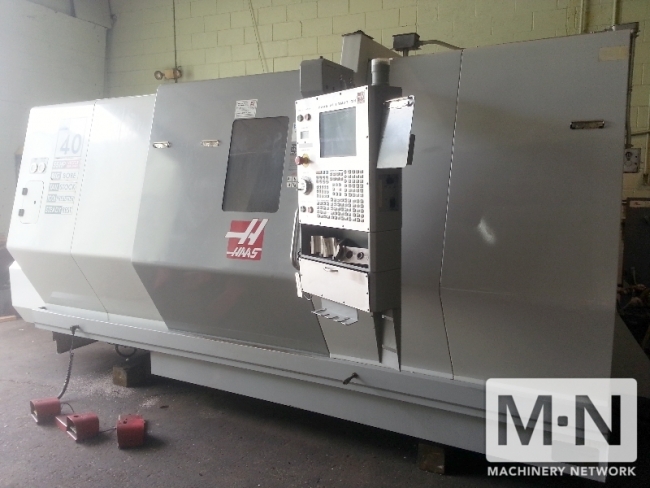

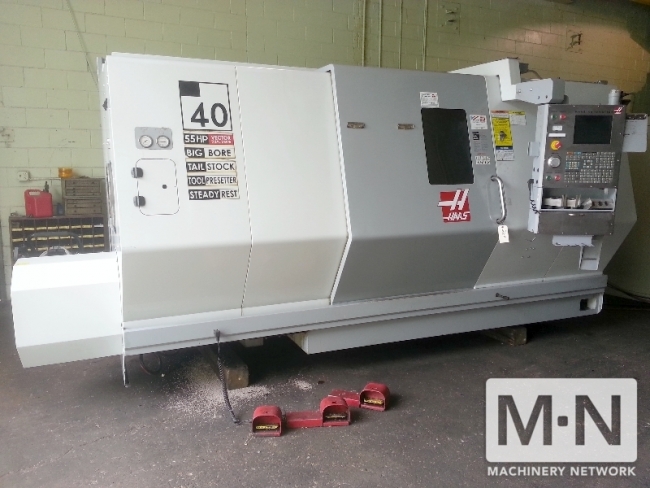

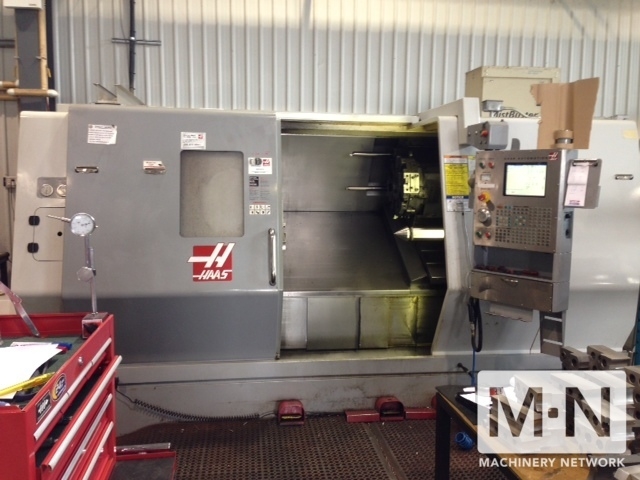

1) USED HAAS SL 40TB (BIG BORE) CNC TURNING CENTER
NEW 2005

Specifications:
Max. Swing Front Apron................34.5"
Max. Swing Over Cross Slide...........25.5"
Max. Turning Dia......................25.5"
Distance Between Centers..............51"
Max Shaft Length......................44"
Spindle Bore Dia......................7.08"
Max. Bar Capacity ....................6.625"
X-Axis Travel.........................17"
Z-Axis Travel.........................44"
Spindle Nose..........................A2-11"
Spindle Speeds........................1,400 RPM
Gear Box..............................2-Speed
Torque................................2,100 ft.-lbs.

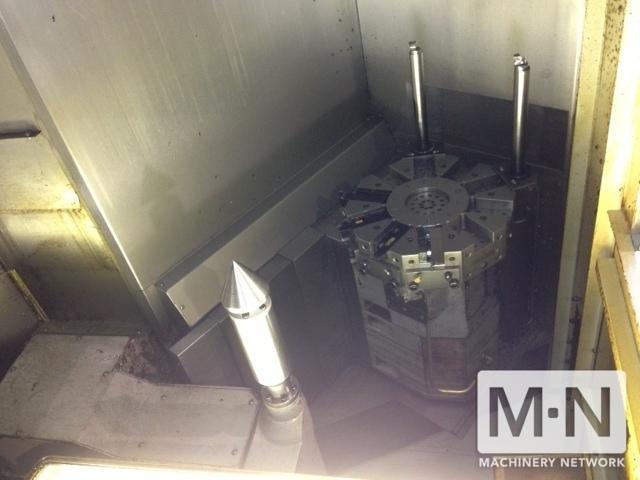

Turret Configuration..................10
Rapid Traverse X / Z .................710 IPM
Tail Stock Dia. ......................4.33"
Tail Stock Quill Stroke...............4.72"
Tailstock Spindle Nose............MT #5
Tailstock Body Stroke.................75.5"
Main Motor............................55 HP

Equipped With:

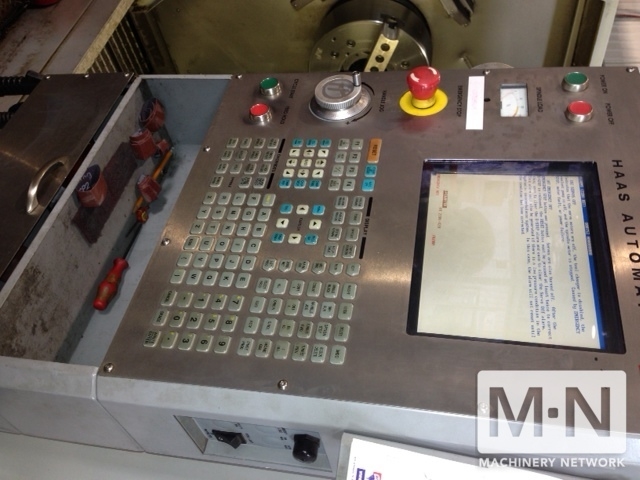

HAAS 64 BIT CNC CONTROL
TOOL SETTER
2-SPEAD GEAR BOX
EXTRA PERFORMANCE OPTION 55HP AND 12 HP Z-AXIS MOTOR
18" 3-JAW HYDRAULIC CHUCK
7.08" SPINDLE OPTION
CHIP CONVEYOR SYSTEM
REMOTE PULSE GENERATOR
HAAS INTUITIVE PROGRAMMING SYSTEM
VISUAL QUICK CODE
FULLY PROGRAMMABLE TAILSTOCK BODY
FLOPPY/1 MEG
ALL AVAILABLE MANUALS
ALL TOOL HOLDERS
