HAAS ST-20

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

HAAS

Model:

ST-20

Condition:

Not Specified

Year:

2011

Stock #:

32014

Status:

Sold

Description:

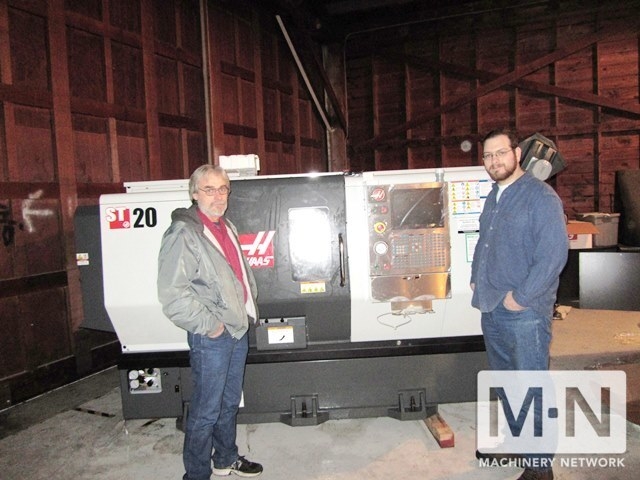

HAAS ST-20 CNC LATHE, 10" 3-JAW HYDRUALIC CHUCK,

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

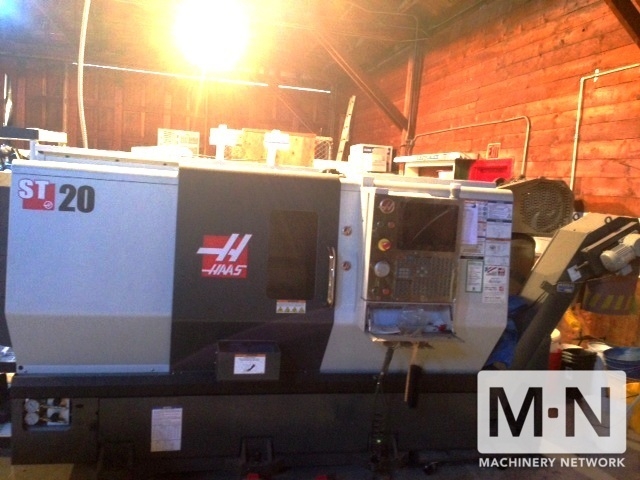

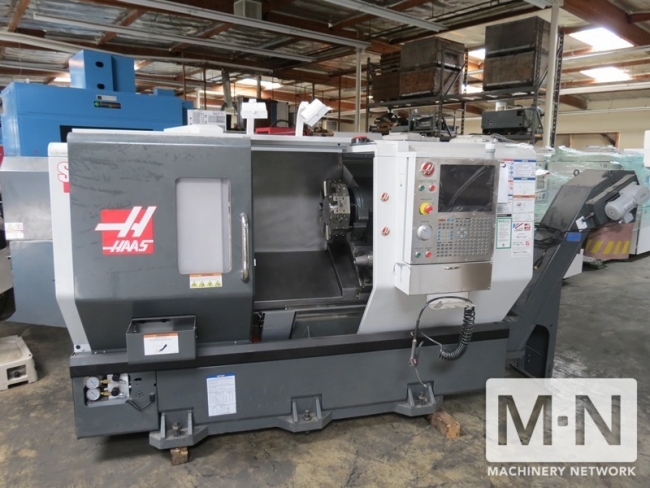

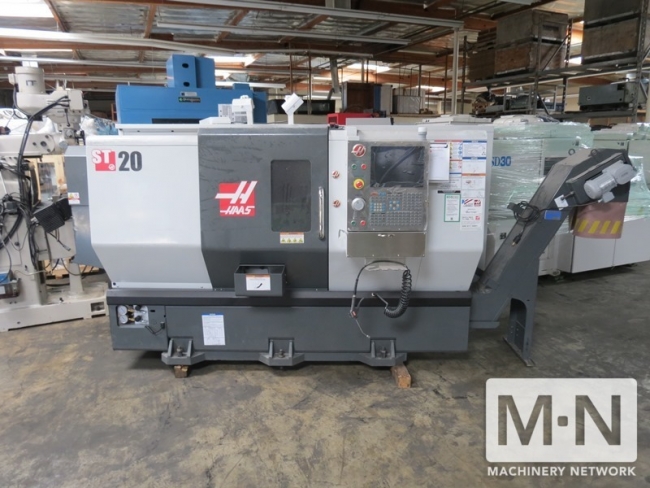

(1) USED HAAS ST-20 CNC LATHE
NEW 2011

SPECIFICATIONS:
Over Front Apron ............ 31.75 "
Over Cross Slide ............ 20.75 "
Over Tailstock .............. 23.0 "
CAPACITIES
Chuck Size .................. 8.3 "
Max Cutting Diameter ........ 15.0 "
Max Cutting Length .......... 21"
Bar Capacity ................ 2.0 "
TRAVELS & FEEDRATES
X Axis ...................... 9.3 "
Z Axis ...................... 21.0 "
Rapids on X ................. 945 in/min
Rapids on Z ................. 945 in/min
Max Thrust X ................ 4100 lb
Max Thrust Z ................ 5100 lb
SPINDLE
Max Rating .................. 20 hp
Max Speed ................... 4000 rpm
Max Torque .................. 150 ft-lb@500 rpm
Spindle Nose ................ A2-6
Spindle Bore ................ 3.50 "

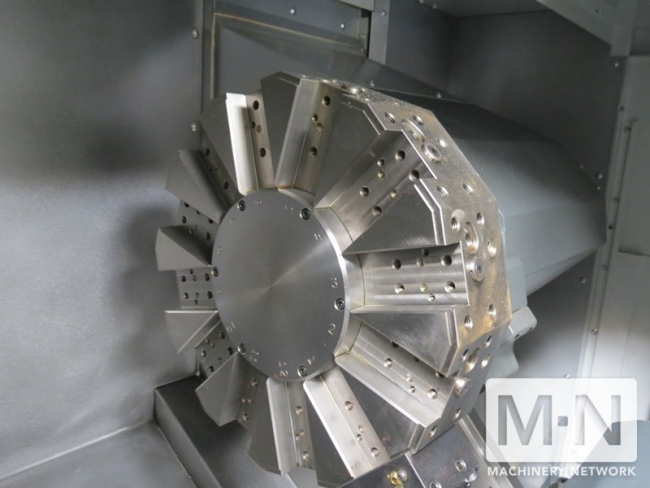

TURRET
Number of Tools ............. 12
GENERAL
Air Required ................ 100 psi
Coolant Capacity ............ 48 gal
Machine Weight .............. 9000 lb

EQUIPPED WITH:

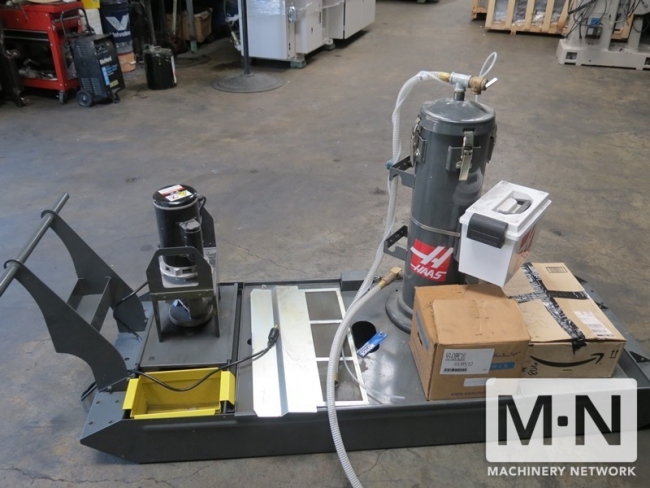

Coolant Filter System
Auto Tool Pre Setter
High Intensity Lighting

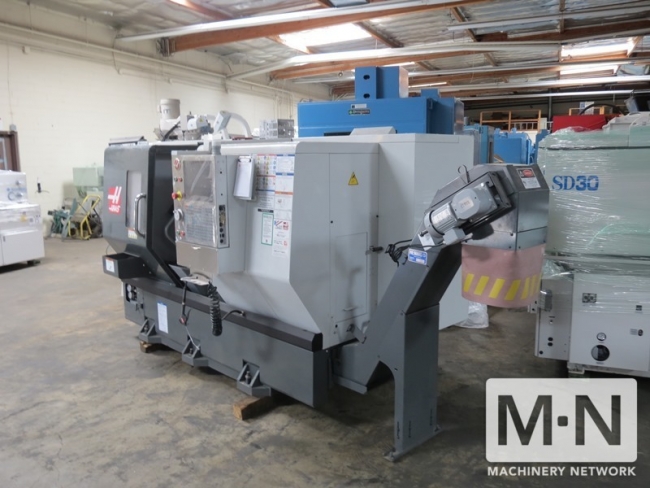

Belt Type Chip Conveyor

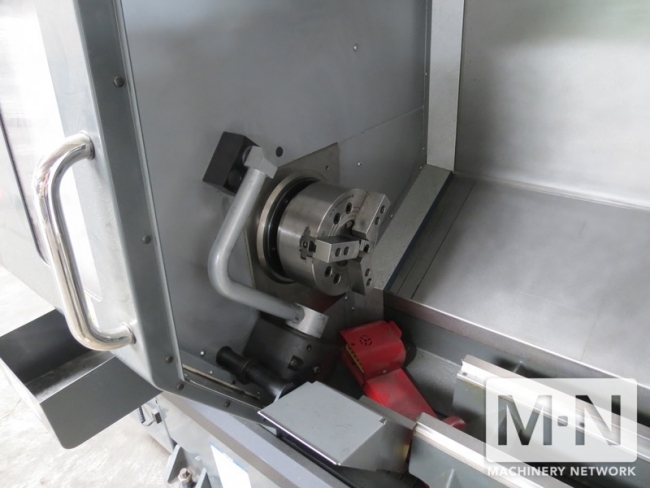

10” 3-Jaw Hydraulic Chuck Upgrade A2-6

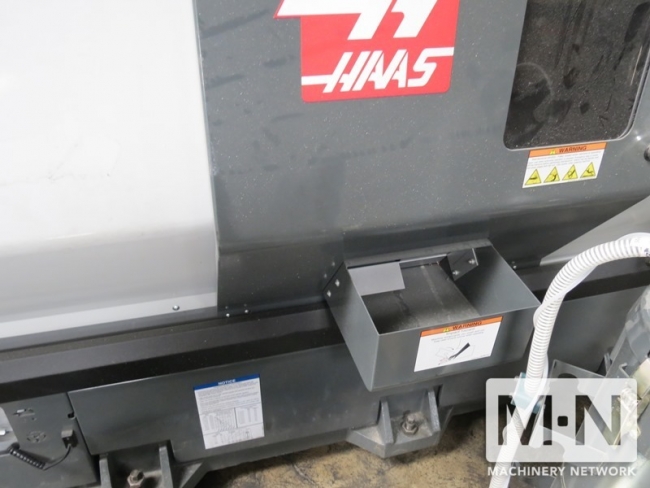

Parts catcher System

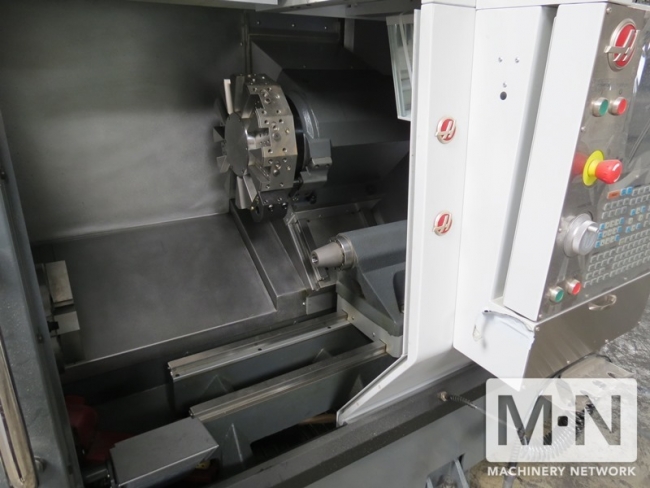

Programmable Hydraulic Tailstock
