AMADA VIPROS 2510 KING
Type:
PUNCHES, TURRET, N/C & CNC
Manufacturer:
AMADA
Model:
VIPROS 2510 KING
Condition:
Not Specified
Stock #:
31974
Status:
Sold
Description:
22 TON, 31 STNS, 3 AI, 50" X 98", 18P CONTROLS
Location:
Texas, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

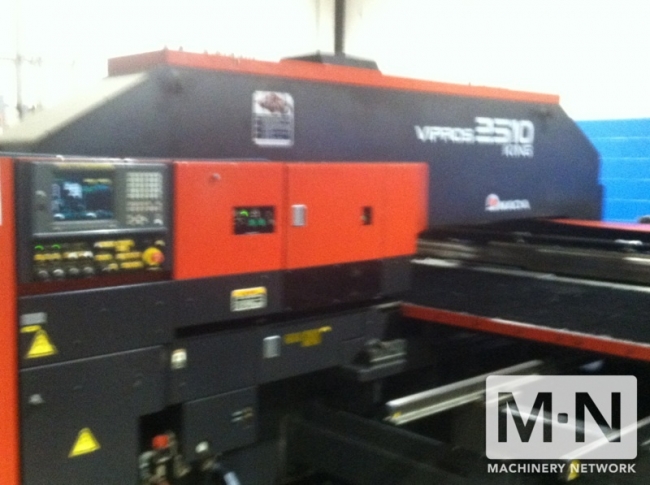

22 TON AMADA VIPROS 2510 KING CNC TURRET PUNCH
NEW 1999
TYPE BRIDGE FRAME HYDRAULIC -BALL TABLE MACHINE CAPACITY 20 TONS CONTROL FANUC SERIES 18P TURRET STYLE THICK 31 STATION A STATIONS 12.7mm 19 B STATIONS 31.7mm 6 C STATIONS 50.8mm 1 D STATIONS 88.9mm 2 B STATIONS 31.7mm AUTO-INDEX 2 C STATION 50.8mm AUTO-INDEX 1 MAX TRAVERSE AREA 1270 X 2500 MAX PROCESS AREA 1 REPRO 1270X 5000 MAX SIMULTANEOUS SPEED 128 METRES PER MIN TURRET SPEED 35 RPM MAX SHEET WEIGHT 75 KG MAX MATERIAL THICKNESS 6.4mm MAX HIT RATE 1000 HITS PER MIN STROKE LENGTH 40mm AIR REQUIREMENTS 50 kgf/cm/2 AIR FLOW 250 NI/MIN POWER CONSUMPTION 24 KVA WEIGHT 11 TONNES
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
NEW 1999
TYPE BRIDGE FRAME HYDRAULIC -BALL TABLE MACHINE CAPACITY 20 TONS CONTROL FANUC SERIES 18P TURRET STYLE THICK 31 STATION A STATIONS 12.7mm 19 B STATIONS 31.7mm 6 C STATIONS 50.8mm 1 D STATIONS 88.9mm 2 B STATIONS 31.7mm AUTO-INDEX 2 C STATION 50.8mm AUTO-INDEX 1 MAX TRAVERSE AREA 1270 X 2500 MAX PROCESS AREA 1 REPRO 1270X 5000 MAX SIMULTANEOUS SPEED 128 METRES PER MIN TURRET SPEED 35 RPM MAX SHEET WEIGHT 75 KG MAX MATERIAL THICKNESS 6.4mm MAX HIT RATE 1000 HITS PER MIN STROKE LENGTH 40mm AIR REQUIREMENTS 50 kgf/cm/2 AIR FLOW 250 NI/MIN POWER CONSUMPTION 24 KVA WEIGHT 11 TONNES
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
