AMADA VIPROS III 3510NT
Type:
PUNCHES, TURRET, N/C & CNC
Manufacturer:
AMADA
Model:
VIPROS III 3510NT
Condition:
Not Specified
Year:
2004
Stock #:
33734
Status:
Sold
Description:
33 TON, 58 STN 4 A.I., NT CONTROLS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

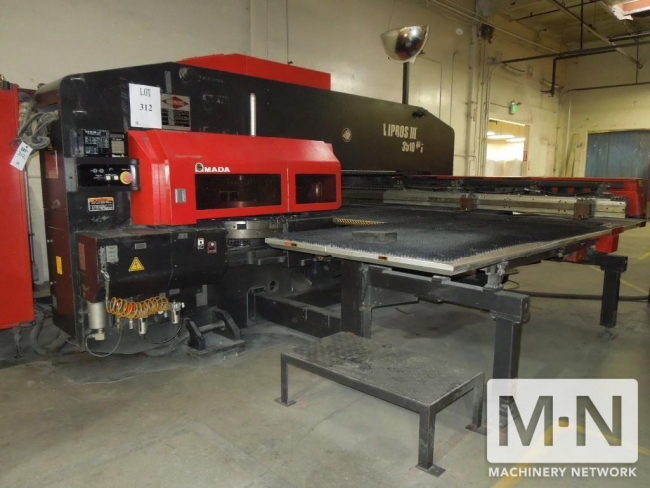

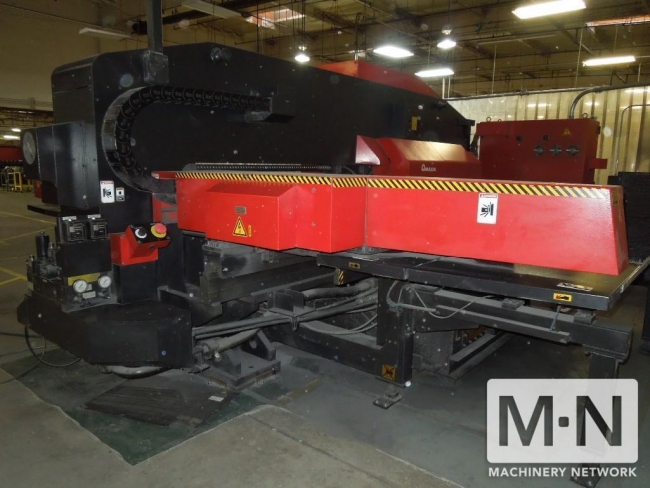

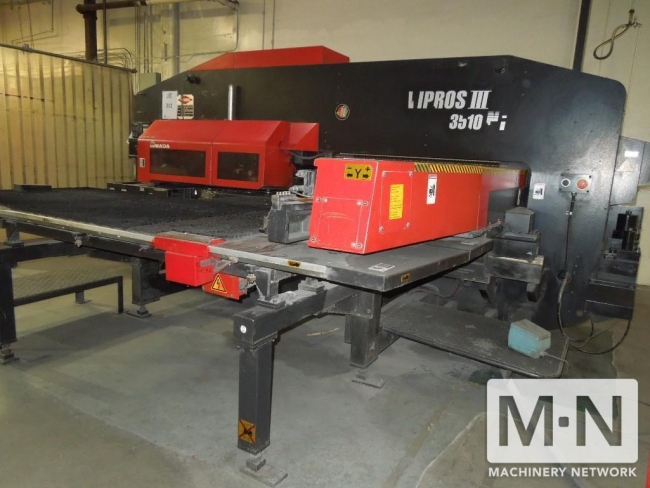

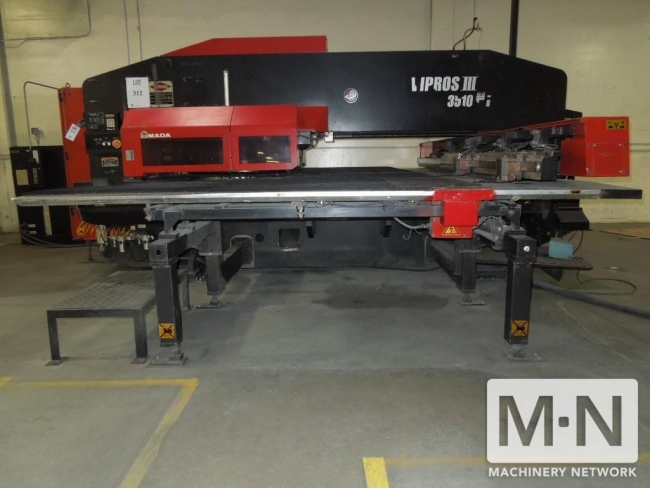

(1) USED 33 TON AMADA VIPROS III 3510NT HIGH SPEED HYDRAULIC TURRET PUNCH PRESS
MFG: 2004
SPECIFICATIONS:
TONNAGE:......................33 TON
AXIS DIMENSION:...............50" X 100"
MAX. MATERIAL THICKNESS:......0.125"
AXIS TABLE SPEED:
(X) ..........................3,937 IPM
(Y) ..........................3,150 IPM
HIT RATE 1" CENTERS:..........410 HPM
HIT RATE - MARKING FUNCTION:..3000 SPM
FEED CLEARANCE UP TO .........0.984"
TURRET CONFIGURATION:
58 STATION (4) - AUTO INDEX
24 (1/2")
24 (1-1/4")
4 (2")
2 (3-1/2")
2 (1-1/4" AUTO INDEX)
2 (4-1/2" AUTO INDEX)
EQUIPPED WITH:

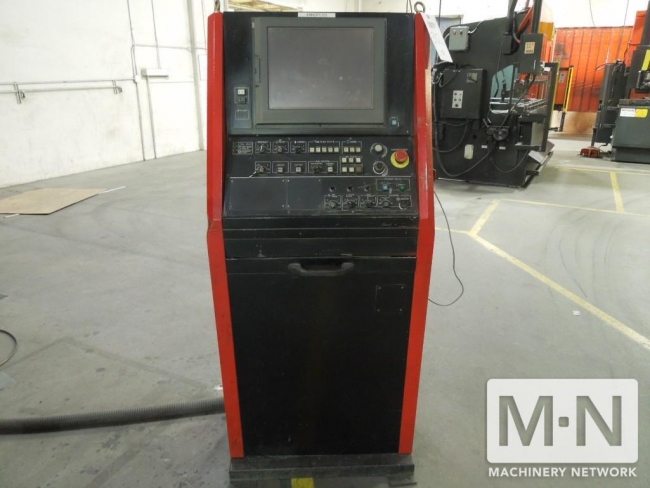

-FREE STANDING PC-BASED WINDOWS CONTROL >NETWORK COMPATIBLE
-RS-232 PORT
-RETRACTABLE KEYBOARD
-19.7" X 19.7" WORK CHUTE
-BRUSH TABLE - SCRATCH-FREE PROCESSING, ELIMINATES SECONDARY FINISHING, AND MINIMIZES NOISE DURING POSITIONING
THIS MACHINE WAS SPECIFICALLY DESIGNED FOR THE HIGH SPEED PRODUCTION OF SHORT-RUN SHEET METAL PARTS, ESPECIALLY THOSE THAT INCORPORATE FORMING.
UP TO A 20% INCREASE IN HIT RATE & SHEET POSITIONING OVER VIPROS II MODEL.
PRICE: $199,500.00 At your request, we previously quoted you a similar machine. The above machine has recently become available and we thought you would appreciate receiving this quote. If you are no longer in the market for this type of machine, please contact us via email, phone, or fax and we will immediately remove you from our list. FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
MFG: 2004
SPECIFICATIONS:
TONNAGE:......................33 TON
AXIS DIMENSION:...............50" X 100"
MAX. MATERIAL THICKNESS:......0.125"
AXIS TABLE SPEED:
(X) ..........................3,937 IPM
(Y) ..........................3,150 IPM
HIT RATE 1" CENTERS:..........410 HPM
HIT RATE - MARKING FUNCTION:..3000 SPM
FEED CLEARANCE UP TO .........0.984"
TURRET CONFIGURATION:
58 STATION (4) - AUTO INDEX
24 (1/2")
24 (1-1/4")
4 (2")
2 (3-1/2")
2 (1-1/4" AUTO INDEX)
2 (4-1/2" AUTO INDEX)
EQUIPPED WITH:
-FREE STANDING PC-BASED WINDOWS CONTROL >NETWORK COMPATIBLE
-RS-232 PORT
-RETRACTABLE KEYBOARD
-19.7" X 19.7" WORK CHUTE
-BRUSH TABLE - SCRATCH-FREE PROCESSING, ELIMINATES SECONDARY FINISHING, AND MINIMIZES NOISE DURING POSITIONING
THIS MACHINE WAS SPECIFICALLY DESIGNED FOR THE HIGH SPEED PRODUCTION OF SHORT-RUN SHEET METAL PARTS, ESPECIALLY THOSE THAT INCORPORATE FORMING.
UP TO A 20% INCREASE IN HIT RATE & SHEET POSITIONING OVER VIPROS II MODEL.
PRICE: $199,500.00 At your request, we previously quoted you a similar machine. The above machine has recently become available and we thought you would appreciate receiving this quote. If you are no longer in the market for this type of machine, please contact us via email, phone, or fax and we will immediately remove you from our list. FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
