AMADA PEGA 345Q

Type:

PUNCHES, TURRET, N/C & CNC

Manufacturer:

AMADA

Model:

PEGA 345Q

Condition:

Not Specified

Year:

1997

Stock #:

35128

Status:

Sold

Description:

33 TON, 58 STNS., 2 A.I. FANUC 04PC, 40" X 50", AIR BLOW

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

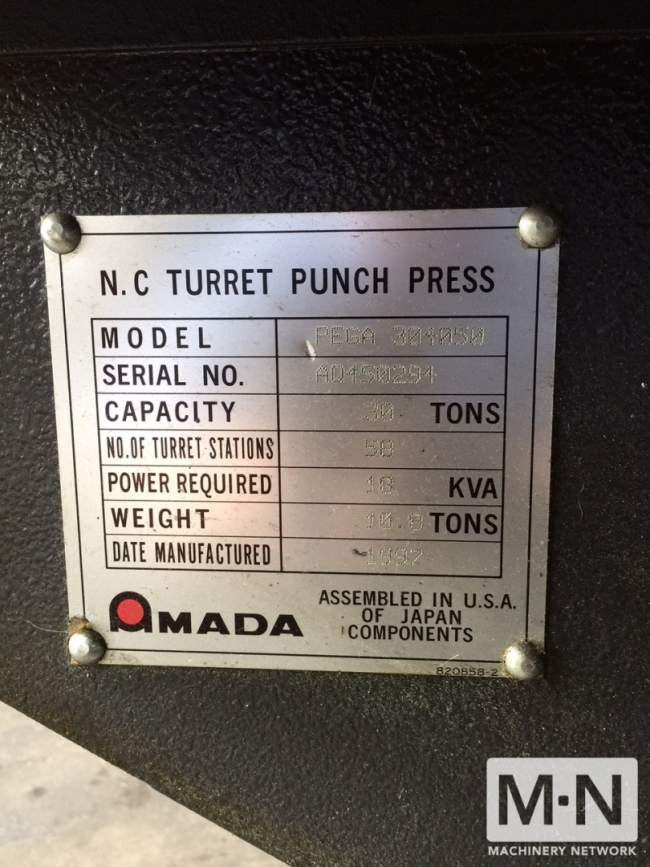

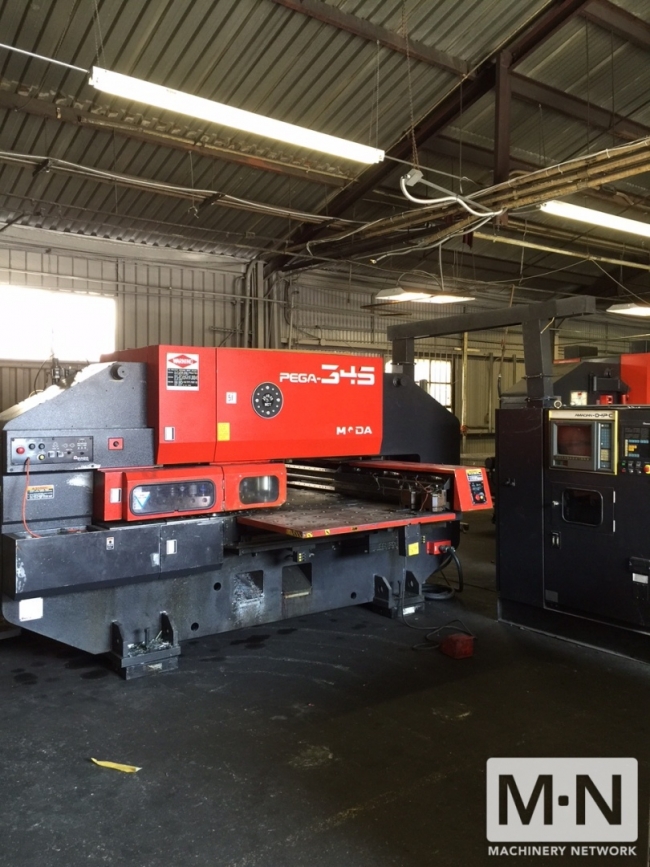

(1) Used Amada Model Pega 345 Queen, CNC Turret Punch, New 1997

Specifications:
Punching Capacity 30 U.S. Tons
Maximum Sheet Size 40" X 50"
With Auto Repo 40" X 100"
Maximum Punching Capacity 1/4" (Mild Steel)
Maximum Hits Per Minute 350
Maximum Sheet Weight 175 Lbs
Maximum Positioning Speed 2795 Inches Per Minute
Total Tool Stations In Turret 58
Turret Configuration H Type Thick Turret
36 @ 1/2" Diameter.
12 @ 1-1/4" Dia.
4 @ 2" Dia.
2 @ 3-1/2" Dia.
2 @ 4-1/2' Dia.
2 @ Auto Index (1-1/4" Dia.)
Auto Index Configuration
Angular Increment 0.01 Degree
Maximum Nibbling Angle 8 Degree
Bi Directional Rotation
Ac Servo Drive 60 RPM
Turret Speed 30 RPM
Air Requirement 80 PSI
Main Motor Horsepower 5.5 Kw /7.5 HP
Power Requirement 18 Kva
Approximate Overall Dimensions 9' W X 7'h X 16' L
Approximate Overall Weight 22,500 Lbs

Equipped With:

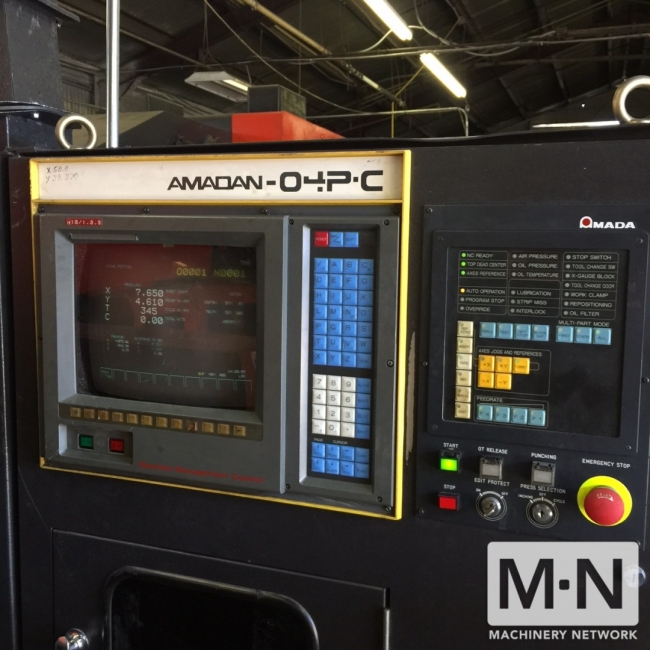

GE Fanuc 04 PC CNC Control
Auto Repositioning
Hydraulic Clutch & Brake

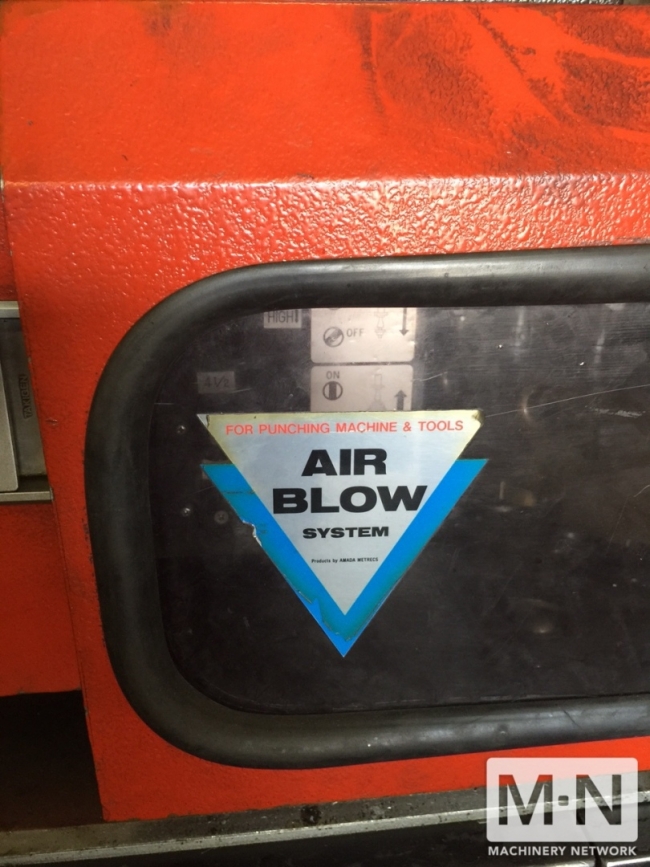

Air Blow
