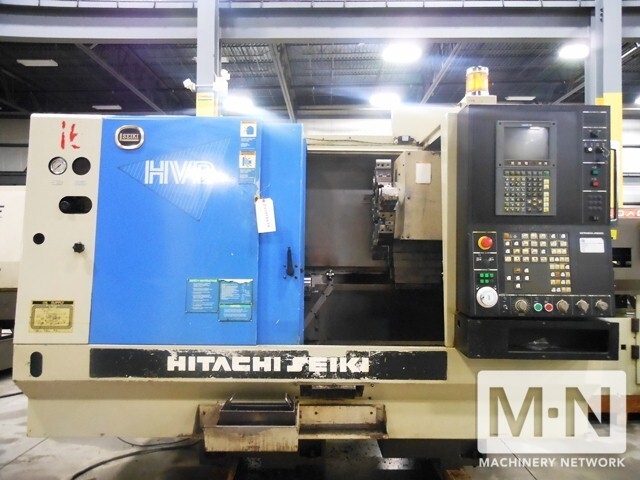

HITACHI SEIKI HPV-23
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HITACHI SEIKI
Model:
HPV-23
Condition:
Not Specified
Year:
1996
Stock #:
31890
Status:
Sold
Description:
HITACHI SEIKI HPV-23, Max Swing 18", 2.7" Bar, 3,600 RPM,
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED HITACHI SEIKI HPV-23 CNC LATHE WITH
NEW 1996
SPECIFICATIONS:
CAPACITY
MAXIMUM SWING:.................18"
MAXIMUM CUTTING DIAMETER:......10” W/O INTERFERENCE
MAXIMUM CUTTING DIAMETER:......14.5”
BAR CAPACITY:..................2.75"
STROKE
X-AXIS TRAVEL:.................8.1"
Z-AXIS TRAVEL:.................15.7”
SPINDLE
SPINDLE SPEED:.................20 – 3600 RPM
SPINDLE NOSE:..................A2-8
SPINDLE BORE:...................3.0”
SPINDLE BEARING, ID:...........4.30”
TURRET
STYLE OF TURRET:BASE HOLDER TYPE
NUMBER OF POSITIONS:...........10
TOOL SIZE, OD:.................1”
TOOL SIZE, ID:.................1.5”
INDEX TIME:....................1 SECOND (ADJACENT TOOL)
RAPID TRAVERSE
X-AXIS:........................984 IPM
Y-AXIS:........................1181 IPM
MOTOR
SPINDLE:.......................20 HP
FEEDS:.........................1.4 HP
HYDRAULIC:.....................25 HP
COOLANT:.......................1 HP
DIMENSIONS:....................8' LR X 6'3” FB X 6'6” H
WEIGHT: .......................10,560 LBS
ELECTRICS:.....................220 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH:
YASNAC i80 CONTROL
BLOCK TYPE TURRET
S-26 COLLET CHUCK
TOOL PROBE
TOOL HOLDERS
PARTS CATCHER
LNS QUICKLOAD BARFEED
CHIP CONVEYOR
NEW 1996
SPECIFICATIONS:
CAPACITY
MAXIMUM SWING:.................18"
MAXIMUM CUTTING DIAMETER:......10” W/O INTERFERENCE
MAXIMUM CUTTING DIAMETER:......14.5”
BAR CAPACITY:..................2.75"
STROKE
X-AXIS TRAVEL:.................8.1"
Z-AXIS TRAVEL:.................15.7”
SPINDLE
SPINDLE SPEED:.................20 – 3600 RPM
SPINDLE NOSE:..................A2-8
SPINDLE BORE:...................3.0”
SPINDLE BEARING, ID:...........4.30”
TURRET
STYLE OF TURRET:BASE HOLDER TYPE
NUMBER OF POSITIONS:...........10
TOOL SIZE, OD:.................1”
TOOL SIZE, ID:.................1.5”
INDEX TIME:....................1 SECOND (ADJACENT TOOL)
RAPID TRAVERSE
X-AXIS:........................984 IPM
Y-AXIS:........................1181 IPM
MOTOR
SPINDLE:.......................20 HP
FEEDS:.........................1.4 HP
HYDRAULIC:.....................25 HP
COOLANT:.......................1 HP
DIMENSIONS:....................8' LR X 6'3” FB X 6'6” H
WEIGHT: .......................10,560 LBS
ELECTRICS:.....................220 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH:
YASNAC i80 CONTROL
BLOCK TYPE TURRET
S-26 COLLET CHUCK
TOOL PROBE
TOOL HOLDERS
PARTS CATCHER
LNS QUICKLOAD BARFEED
CHIP CONVEYOR
