HITACHI SEIKI HT250
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HITACHI SEIKI
Model:
HT250
Condition:
Not Specified
Year:
2005
Stock #:
24852
Status:
Sold
Description:
SEICOS P C FLEXI, 12" CHUCK, 26.75" SWG, 10.25" x 23", 3" BAR CAP, A2-8, 4200 RPM, 40 HP
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

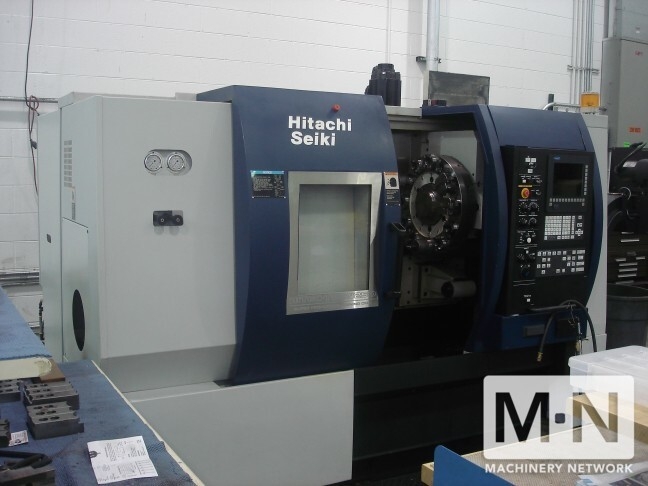

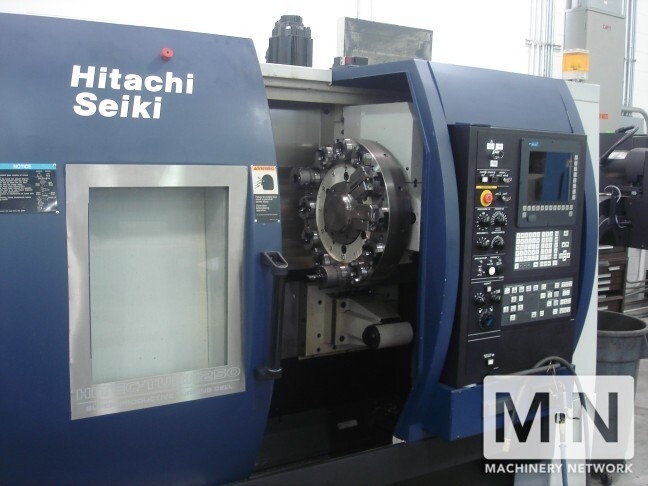

(1) USED HITACHI-SEIKI HT-250 CNC TURNING CENTER
NEW 2005
SPECIFICATIONS:
SWING: 26.75"
CHUCK OUTER DIAMETER: 12"
MAXIMUM MACHINING DIAMETER 19.5"
MAXIMUM MACHINING LENGTH 18.5"
BAR CAPACITY: 3"
X-AXIS TRAVEL 10.25"
Z-AXIS TRAVEL 23"
SPINDLE SPEEDS: 42-4200 RPM (INFINITE)
SPINDLE NOSE A2-8
SPINDLE DIAMETER THRU HOLE: 3.75"
SPINDLE BEARING INSIDE DIAM: 5.5"
TURRET: 12 STATIONS(KENNEMETAL-K.V.)
TOOLS: 12 TOOLS
RAPID TRAVERSE FEEDRATES (X,Z): 1575
CUTTING FEEDRATE: 0.001-40
TAILSTOCK QUILL STROKE: 21.6"
TAILSTOCK SPDL TAPER HOLE: MT-5
SPINDLE MOTOR: 40 HP
POWER SOURCE: 18 KVA
MACHINE WEIGHT: 10,890 LBS
EQIUPPED WITH:
SEICOS P C FLEXI CNC CONTROL.
12 STATION TURRET WITH TOOLING
CHIP CONVEYOR
FULLY PROGRAMMABLE TAILSTOCK.
MACHINE HAS 700 CUTTING HOURS!!
NEW 2005
SPECIFICATIONS:
SWING: 26.75"
CHUCK OUTER DIAMETER: 12"
MAXIMUM MACHINING DIAMETER 19.5"
MAXIMUM MACHINING LENGTH 18.5"
BAR CAPACITY: 3"
X-AXIS TRAVEL 10.25"
Z-AXIS TRAVEL 23"
SPINDLE SPEEDS: 42-4200 RPM (INFINITE)
SPINDLE NOSE A2-8
SPINDLE DIAMETER THRU HOLE: 3.75"
SPINDLE BEARING INSIDE DIAM: 5.5"
TURRET: 12 STATIONS(KENNEMETAL-K.V.)
TOOLS: 12 TOOLS
RAPID TRAVERSE FEEDRATES (X,Z): 1575
CUTTING FEEDRATE: 0.001-40
TAILSTOCK QUILL STROKE: 21.6"
TAILSTOCK SPDL TAPER HOLE: MT-5
SPINDLE MOTOR: 40 HP
POWER SOURCE: 18 KVA
MACHINE WEIGHT: 10,890 LBS
EQIUPPED WITH:
SEICOS P C FLEXI CNC CONTROL.
12 STATION TURRET WITH TOOLING
CHIP CONVEYOR
FULLY PROGRAMMABLE TAILSTOCK.
MACHINE HAS 700 CUTTING HOURS!!
