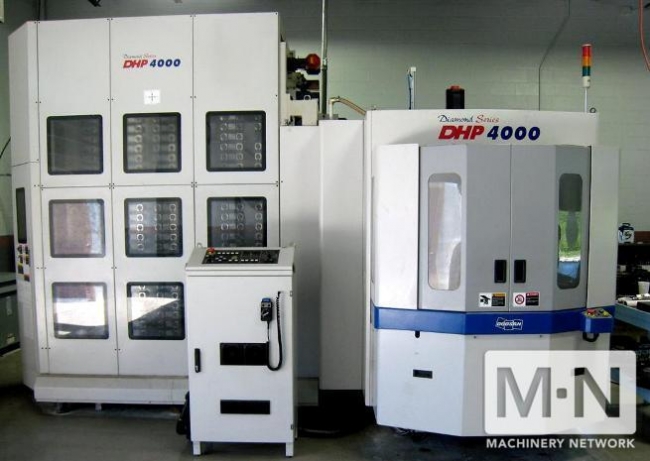

DOOSAN DHP-4000

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

DOOSAN

Model:

DHP-4000

Condition:

Not Specified

Year:

2007

Stock #:

30861

Status:

Sold

Description:

FANUC 18iMB, 23"x22"x23"

Location:

Maryland, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

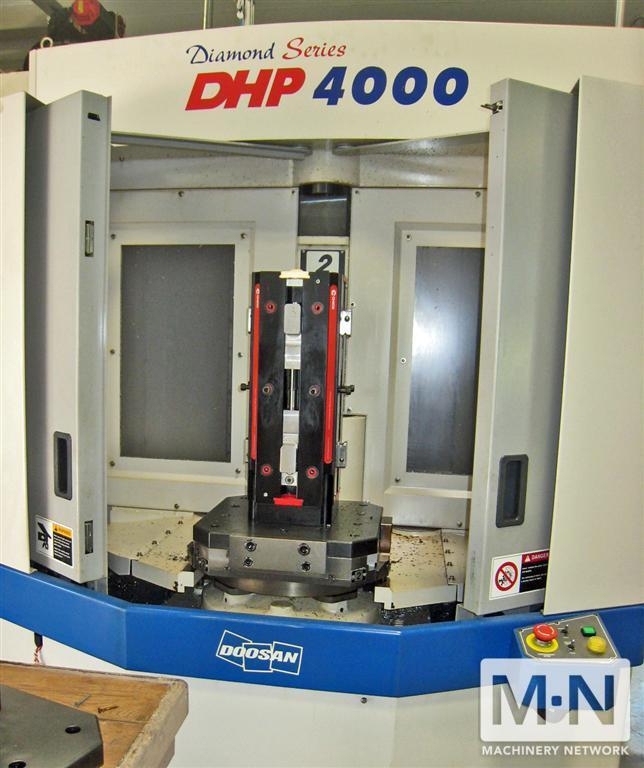

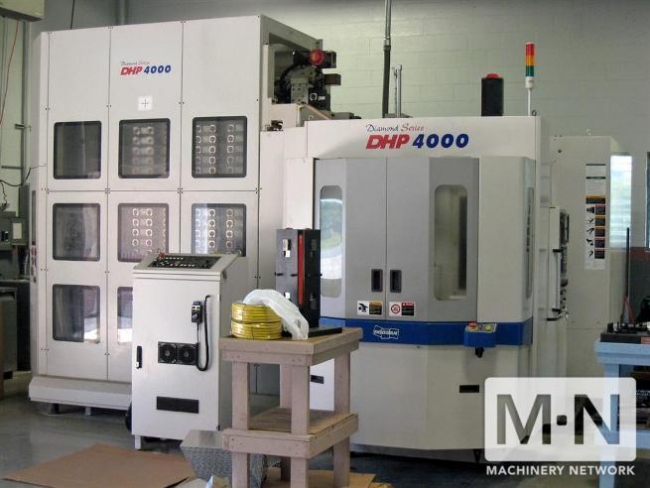

(1) USED DOOSAN DHP-4000 CNC 4 AXIS HORIZONTAL MACHINING CENTER WITH
262 POSITION A.T.C NEW 2007 INSTALLED 2009

700 POWER ON HOURS !!

SPECIFICATIONS:
TRAVELS: X Axis Travel: 23.6"
Y Axis Travel: 22.0"
Z Axis Travel: 23.6"
Pallet Table Size: 15.75" x 15.75"
Max Table Load: 880 LBS
Pallet Index Time: 5.9 Seconds
Spindle Nose to Pallet Center: 5.9" - 29.5"
Spindle Center To Pallet Top: 1.97"-24.0"
Spindle Taper: ISO 40
Spindle Speed Range: 14,000 RPM
Spindle Motor: 30HP
Rapid Traverse Rates: 2,362

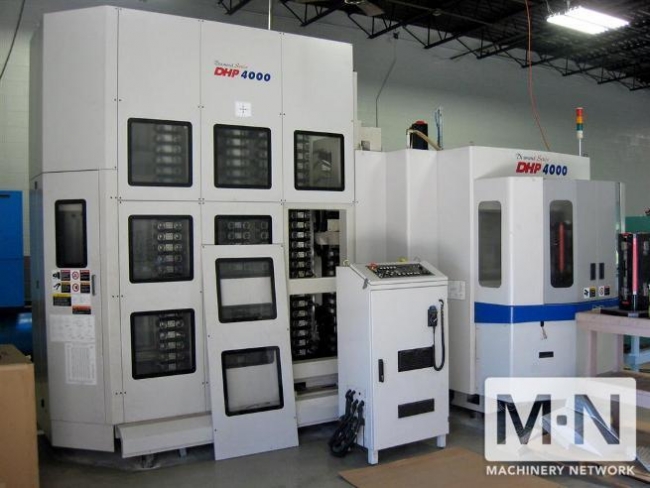

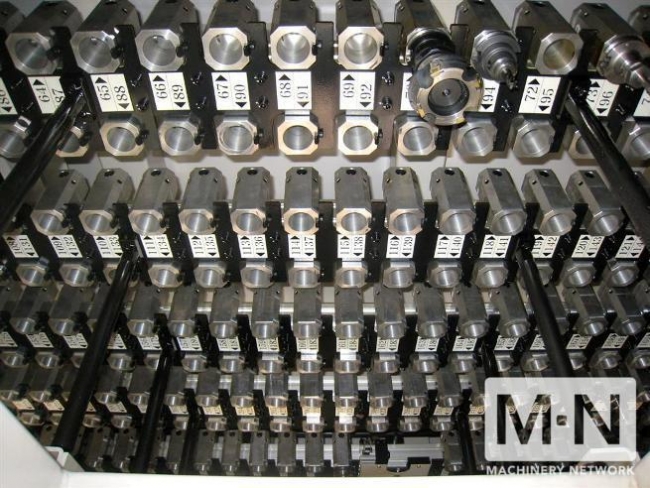

Tool Changer: 262 Position
Machine Weight: 27,500 LBS
Machine Dimensions: 139" W x 229" D x 113" H

EQUIPPED WITH:

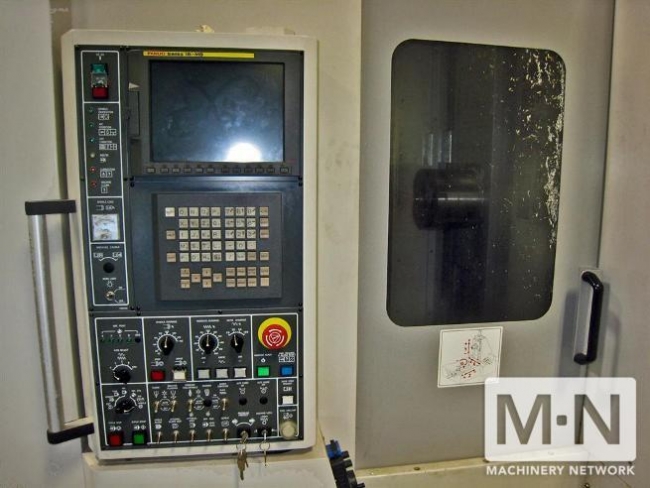

-FANUC 18i-MB CONTROL
-POWERFUL 22KW (30 HP) SPINDLE MOTOR
-BIG PLUS DUAL CONTACT SPINDLE TAPER
-HIGH PRECISION SPINDLE WITH TWO D AND TWO ANGULAR CONTACT BALL BEA
-SPINDLE TAPER AIR BLOW, RENISHAW PART PROBE
-AIR THROUGH SPINDLE SYSTEM (M14)
-SPINDLE ORIENTATION
-SPINDLE OVERRIDE 50% TO 150%
-OIL JACKET SPINDLE COOLER
- THROUGH THE SPINDLE COOL
-PREP FOR 1,000 PSI TSC
-90 DEGREE, SWIVELING OPERATOR CO
-MASSIVE MEEHANITE CAST IRON BED
-LARGE LINEAR MOTION GUIDES
-TABLE CLAMPING BY LARGE DIAMETER
-SERVOMOTORS MOUNTED DIRECTLY TO
-DOUBLE PRE-TENSIONED BALL SCREW
-FAST 60M/MIN (2,362 IPM) X,Y A
-RIGID TAPPING
-CUSTOM MACRO B (USER DEFINABLE

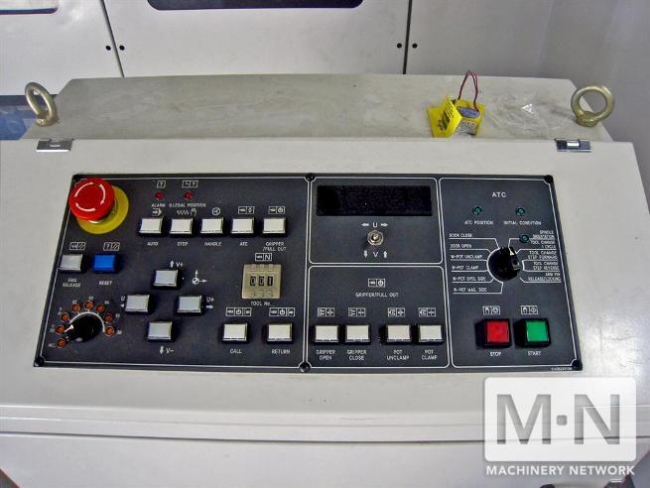

-CAM TYPE DOUBLE ARM ATC 60 1

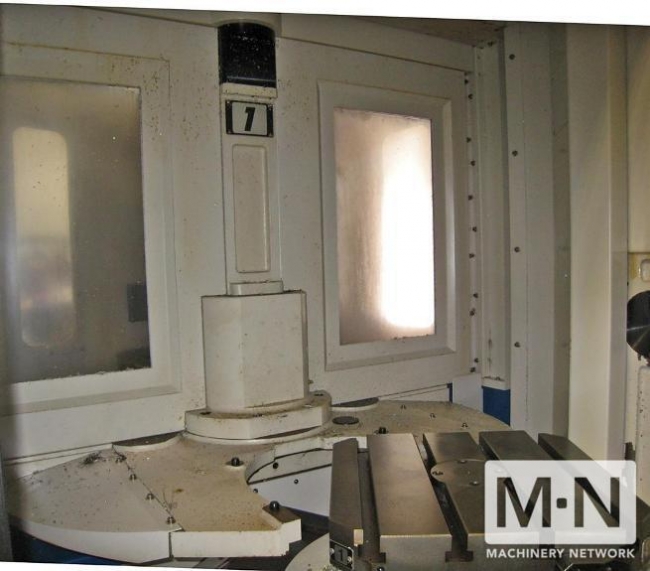

-AUTOMATIC PALLET CHANGER WITH (2)
-QUALIFIED EDGE LOCATORS
-PALLET CLAMPING BY 4-CONE TYPE P
-PALLET ROTATION AT PALLET LOADING ST
-PORTABLE MANUAL PULSE GENERATOR
-PROGRAM AND DATA PROTECTION KEY
-METERED PISTON DISTRIBUTOR LUBRICATION
-TELESCOPIC WAY COVERS
-FULL ENCLOSURE SPLASH GUARD
-DUAL SCREW TYPE CONVEYORS
-FLOOD COOLANT WITH LARGE SEPARATE
-WORK LIGHT
-3 COLOR TOWER SIGNAL LIGHT
-INSTRUCTION MANUAL, PARTS LIST, ANC
-FANUC OPERATOR AND MAINTENANCE

GENERAL:
MACHINE HEIGHT: (113")
FLOOR SPACE REQUIRED: (139" X 229") - MACHINE ONLY
MACHINE WEIGHT: (31,680 LBS)
POWER REQUIRED: 70 KVA / 185 AMP @220V
VOLTAGE REQUIRED: 205 - 235 VOLTS / 3 PHASE
