CHALLENGER SL 350
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
CHALLENGER
Model:
SL 350
Condition:
Not Specified
Year:
2010
Stock #:
29796
Status:
Sold
Description:
DEALER DEMO!
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

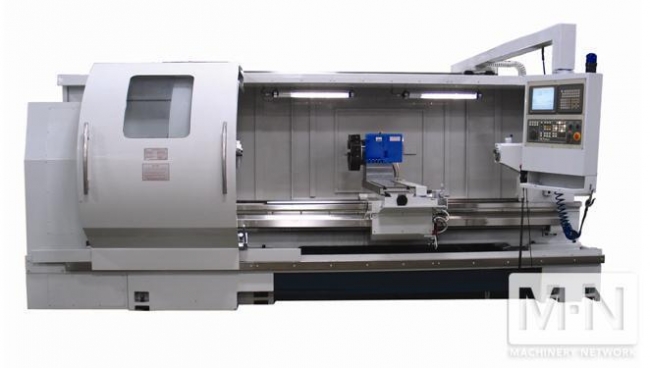

(1) CHALLENGER SL-350 CNC TURNING CENTER 10" SPINDLE BORE
120" CENTERS DEALER DEMO NO CUT HOURS MFG DATE 2010
INCLUDES FANUC WARRANTY
SPECIFICATIONS:
MAX SWING IN GAP: 45"
MAX SWING OVER BED: 36.3"
SWING OVER CROSS SLIDE: 21.6"
CENTER DISTANCE: 120"
SPINDLE NOSE: A2-15
SPINDLE BORE: 10"
BORING BAR HOLDERS: 1.5"
SQUARE TURNING HOLDERS: 1.25"
SPINDLE RPM: 1500 RPM
SPINDLE HORSEPOWER: 45 HP
SPINDLE RANGE: 2 SPEED
RAPID TRAVERSE X/Z: 500 IPM
TAILSTOCK CENTER: MT #6
DIAMETER: 4.9"
QUILL TRAVEL: 8.0"
FOLLOW REST: 1"-7"
STEADY REST: 12-22"
MACHINE WEIGHT: 19,200 LBS
EQUIPPED WITH:
FANUC 0iTB CONTROL
FULLY GROUND BOX WAYS WITH TURCITE
REMOVABLE GAP
STANDARD WORK LIGHT
COMPLETE COOLANT SYSTEM
SEMI ENCLOSED SPLASH GUARD
TAILSTOCK WITH QUILL REDUCTION DEVICE
CHIP DRAWER CHIP REMOVAL SYSTEM
REMOTE MANUAL PULSE HANDWHEEL
CHIP CONVEYOR
8 STATION TURRET
TOOL GEOMETRY WEAR OFFSET
REAR SPINDLE PREP & REAR A2-15 NOSE
(CHUCK NOT INCLUDED)
STEADY REST & FOLLOW REST
120" CENTERS DEALER DEMO NO CUT HOURS MFG DATE 2010
INCLUDES FANUC WARRANTY
SPECIFICATIONS:
MAX SWING IN GAP: 45"
MAX SWING OVER BED: 36.3"
SWING OVER CROSS SLIDE: 21.6"
CENTER DISTANCE: 120"
SPINDLE NOSE: A2-15
SPINDLE BORE: 10"
BORING BAR HOLDERS: 1.5"
SQUARE TURNING HOLDERS: 1.25"
SPINDLE RPM: 1500 RPM
SPINDLE HORSEPOWER: 45 HP
SPINDLE RANGE: 2 SPEED
RAPID TRAVERSE X/Z: 500 IPM
TAILSTOCK CENTER: MT #6
DIAMETER: 4.9"
QUILL TRAVEL: 8.0"
FOLLOW REST: 1"-7"
STEADY REST: 12-22"
MACHINE WEIGHT: 19,200 LBS
EQUIPPED WITH:
FANUC 0iTB CONTROL
FULLY GROUND BOX WAYS WITH TURCITE
REMOVABLE GAP
STANDARD WORK LIGHT
COMPLETE COOLANT SYSTEM
SEMI ENCLOSED SPLASH GUARD
TAILSTOCK WITH QUILL REDUCTION DEVICE
CHIP DRAWER CHIP REMOVAL SYSTEM
REMOTE MANUAL PULSE HANDWHEEL
CHIP CONVEYOR
8 STATION TURRET
TOOL GEOMETRY WEAR OFFSET
REAR SPINDLE PREP & REAR A2-15 NOSE
(CHUCK NOT INCLUDED)
STEADY REST & FOLLOW REST
