HACO ERMS2575
Type:
BRAKES, PRESS, HYDRAULIC (Inch/Ton)
Manufacturer:
HACO
Model:
ERMS2575
Condition:
Not Specified
Year:
2004
Stock #:
29552
Status:
Sold
Description:
82.5 TON X 8', ATS 560 B.G.
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

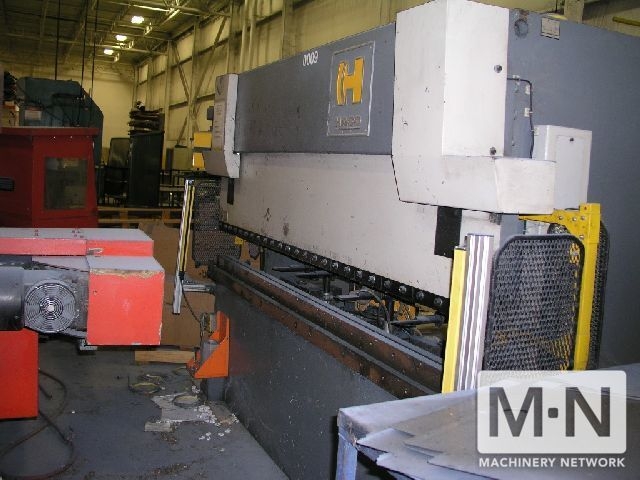

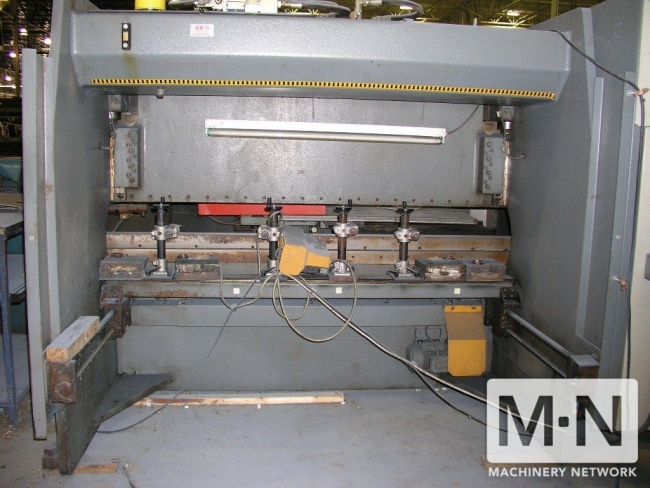

(1) 82.5 TON X 8' HACO SYNCHROMASTER CNC HYDRAULIC PRESS BRAKE MODEL ERMS 2575 NEW 2004
SPECIFICATIONS: TONNAGE: ............... 82.5 TONS OVERALL LENGTH: ........ 8' SHUT HEIGHT: ........... 7.1" STROKE LENGTH: ......... 3.9" OPEN HEIGHT: ........... 11" THROAT DEPTH: .......... 7.8" RAPID APPROACH: ........ 189 IPM PRESS SPEED: ........... 24 IPM RETURN SPEED: .......... 165 IPM MACHINE DIMENSIONS: .... 114" L, 57"W, 88" H APPROX. WEIGHT: ........ 10,340 LBS

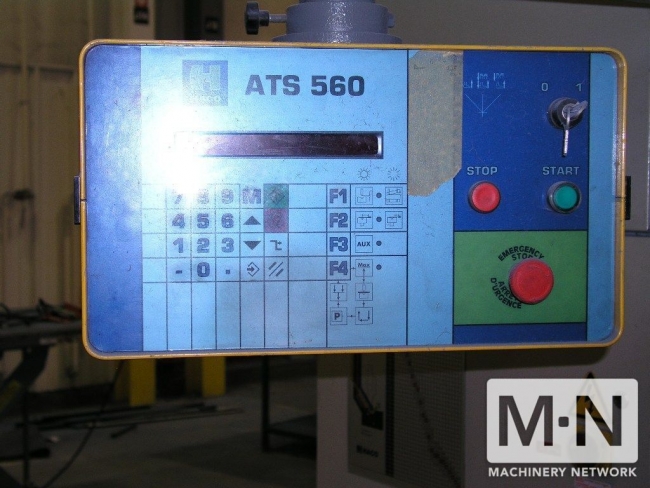

EQUIPPED WITH: ATS 560 CNC BACK GAUGE (1000 mm RANGE) RISER BLOCK 575 VOLT
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
SPECIFICATIONS: TONNAGE: ............... 82.5 TONS OVERALL LENGTH: ........ 8' SHUT HEIGHT: ........... 7.1" STROKE LENGTH: ......... 3.9" OPEN HEIGHT: ........... 11" THROAT DEPTH: .......... 7.8" RAPID APPROACH: ........ 189 IPM PRESS SPEED: ........... 24 IPM RETURN SPEED: .......... 165 IPM MACHINE DIMENSIONS: .... 114" L, 57"W, 88" H APPROX. WEIGHT: ........ 10,340 LBS
EQUIPPED WITH: ATS 560 CNC BACK GAUGE (1000 mm RANGE) RISER BLOCK 575 VOLT
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
