ACCURPRESS 725014
Type:
BRAKES, PRESS, HYDRAULIC (Inch/Ton)
Manufacturer:
ACCURPRESS
Model:
725014
Condition:
Not Specified
Year:
2008
Stock #:
28319
Status:
Sold
Description:
250 TON X 14', ETS 3000/P 2-AXIS, POWER CNC CROWNING DIE RAIL
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

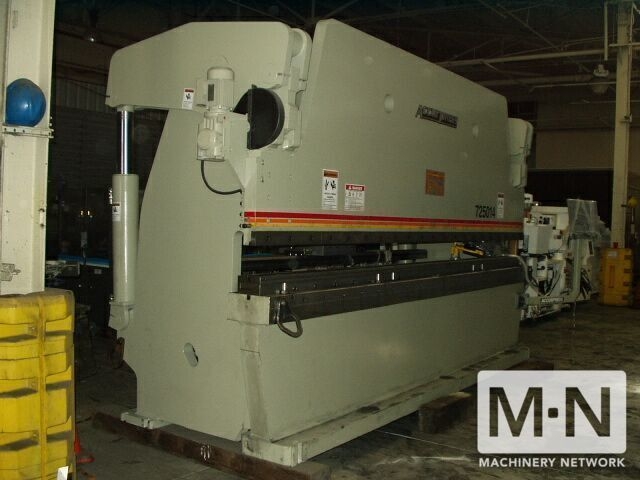

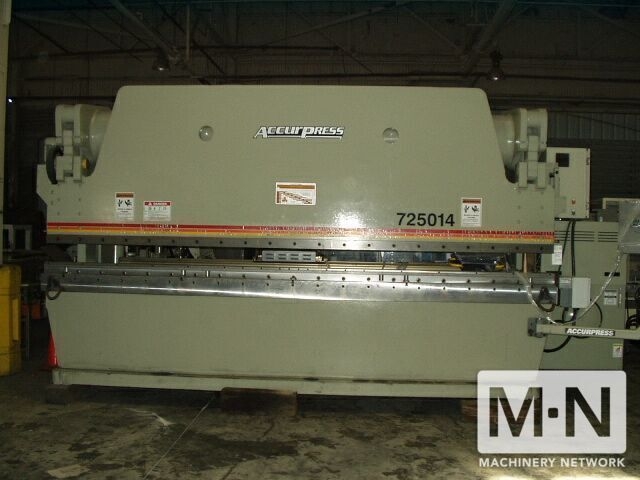

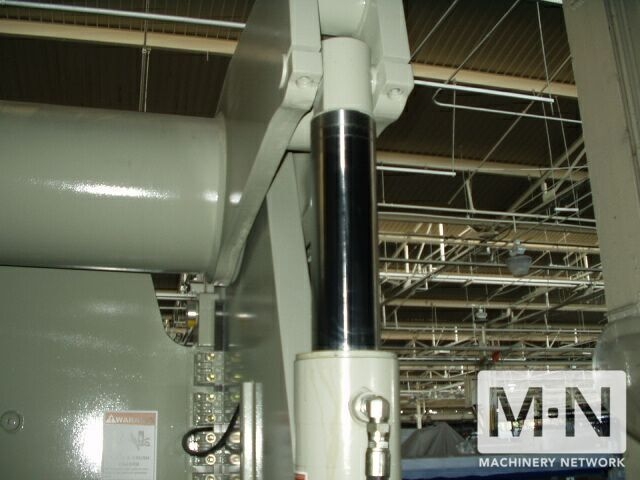

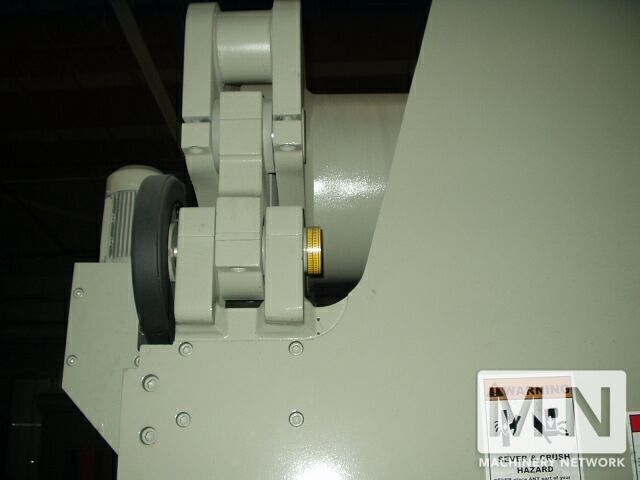

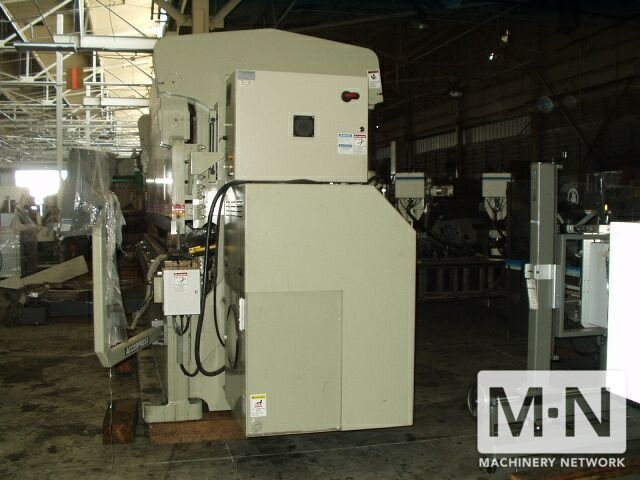

250 TON X 14' ACCURPRESS HYDRAULIC PRESS BRAKE

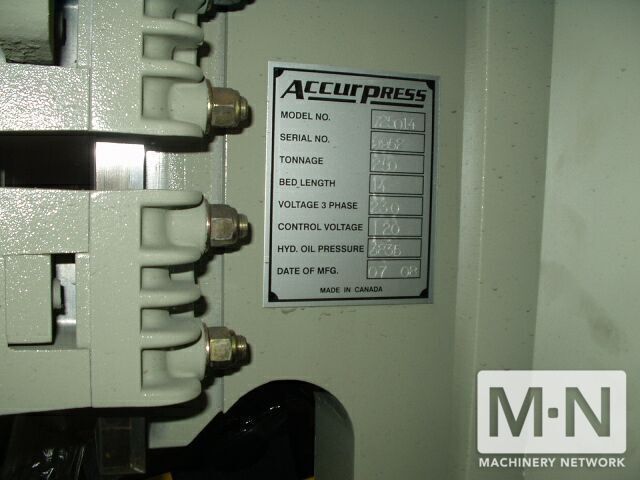

MODEL: 725014 SN/9952 NEW 2008
BENDING CAPACITY 14' X 1/4" M.S.
TONNAGE 250 TONS
LENGTH OF BED 14'
DISTANCE BETWEEN HOUSINGS 148"
BED HEIGHT 34"
BED CAP WIDTH 14"
STROKE LENGTH 8"
OPEN HEIGHT 16"
CLOSED HEIGHT 8"
THROAT DEPTH 10"
SPEEDS: FAST APPROACH 60 IPM
SLOW BEND 16 IPM
FAST RETURN 140 IPM
MAIN MOTOR HP 20 HP
APPROX. DIMENSIONS 174"L X 70"W X 108"H
APPROX. WEIGHT 35,000 LBS
EQUIPPED WITH:

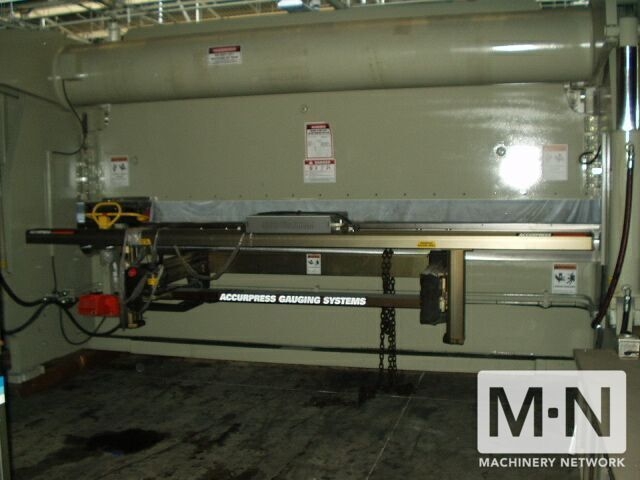

ETS-3000/P BACKGAUGE W/2-AXIS CNC CONTROL

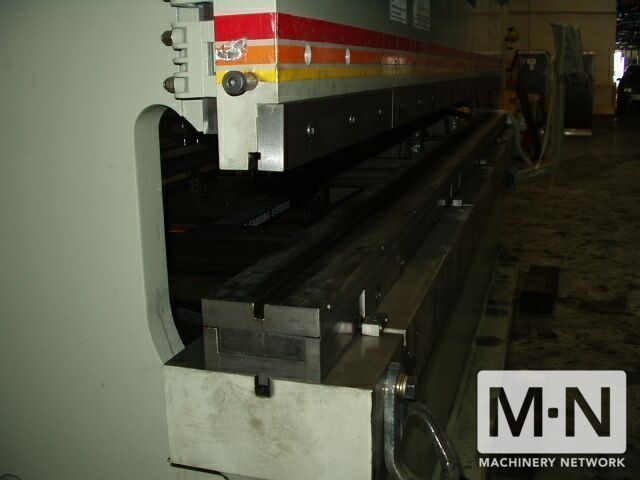

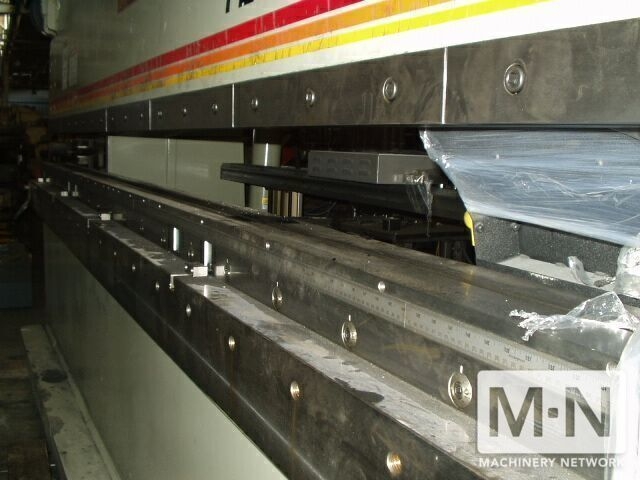

POWER CNC CROWNING DIE RAIL, 6.0" W - 3.75" H
MACHINE GROOVE IN BED
ONE SET OF PUNCH AND DIE
THIS MACHINE IS BEING OFFERED FOR THE BANK AND APPEARS TO BE IN
ALMOST NEW CONDITION
* NEW COST WHEN PURCHASED JULY 2008 WAS $108,344.75
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
MODEL: 725014 SN/9952 NEW 2008
BENDING CAPACITY 14' X 1/4" M.S.
TONNAGE 250 TONS
LENGTH OF BED 14'
DISTANCE BETWEEN HOUSINGS 148"
BED HEIGHT 34"
BED CAP WIDTH 14"
STROKE LENGTH 8"
OPEN HEIGHT 16"
CLOSED HEIGHT 8"
THROAT DEPTH 10"
SPEEDS: FAST APPROACH 60 IPM
SLOW BEND 16 IPM
FAST RETURN 140 IPM
MAIN MOTOR HP 20 HP
APPROX. DIMENSIONS 174"L X 70"W X 108"H
APPROX. WEIGHT 35,000 LBS
EQUIPPED WITH:
ETS-3000/P BACKGAUGE W/2-AXIS CNC CONTROL
POWER CNC CROWNING DIE RAIL, 6.0" W - 3.75" H
MACHINE GROOVE IN BED
ONE SET OF PUNCH AND DIE
THIS MACHINE IS BEING OFFERED FOR THE BANK AND APPEARS TO BE IN
ALMOST NEW CONDITION
* NEW COST WHEN PURCHASED JULY 2008 WAS $108,344.75
FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
