SUPERMAX XV1250A
Type:
Vertical Machining Centers
Manufacturer:
SUPERMAX
Model:
XV1250A
Condition:
Not Specified
Year:
2008
Stock #:
29413
Status:
Sold
Description:
FANUC MXP-100i, 4TH AXIS ROTARY TABLE, 50"x20"x21"
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

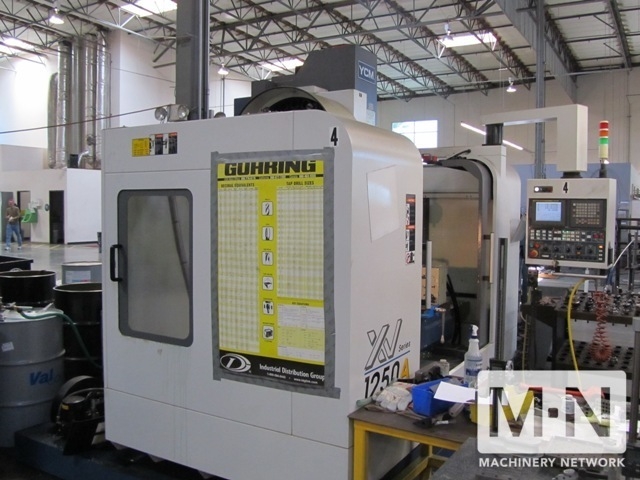

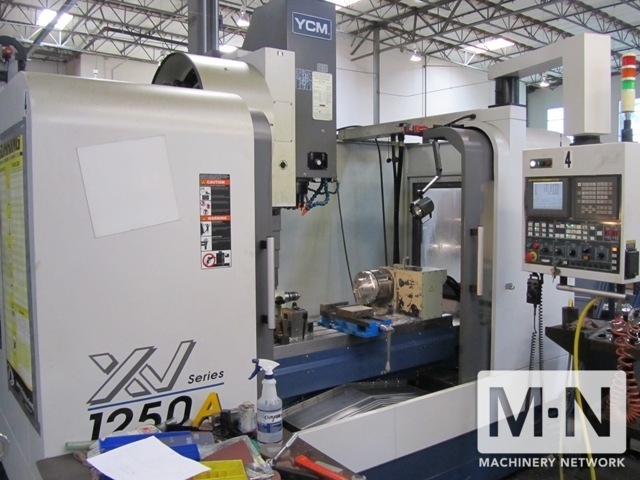

(1) USED YCM SUPERMAX XV1250A CNC VERTICAL MACHINING CENTER
NEW 2008
SPECIFICATIONS:
TABLE SIZE: 53.1"x20.4"
TRAVELS:
X-AXIS: 50"
Y-AXIS: 20.4"
Z-AXIS: 21.1"
SPINDLE SPEED: 10,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: CAT 40
TOOLS: 24 ATC
EQUIPPED WITH:

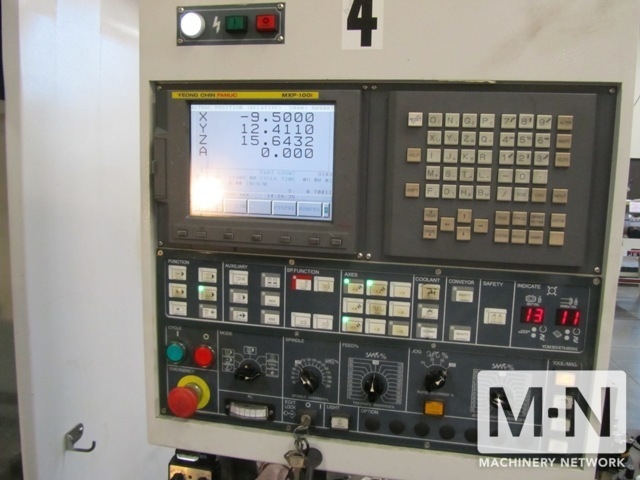

FANUC MXP-100i 4 AXIS CONTROL
8.4" LCD COLOR MONITOR W/ DYNAMIC GRAPHIC
1,280M MEMORY, PCMCIA EXPANSION SLOT, RS-232C INTERFACE
FULL ALPHANUMERICAL KEYBOARD

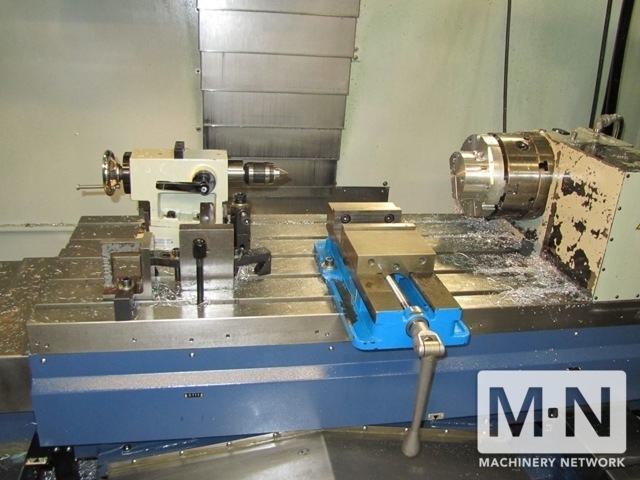

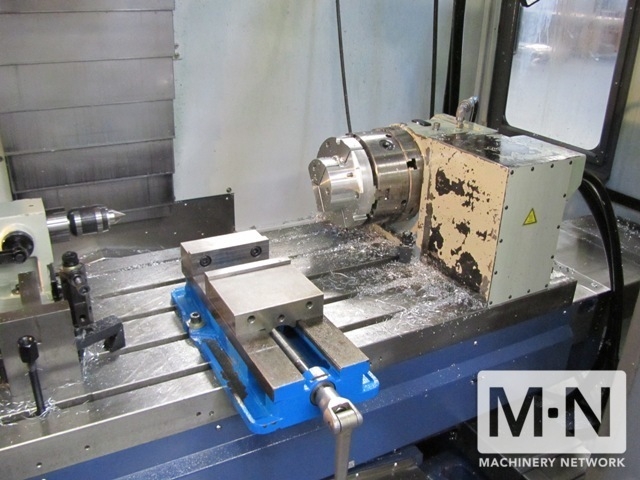

4TH AXIS ROTARY TABLE
TAILSTOCK
RIGID TAPPING
TOOL KIT
OIL SKIMMER
WORK LAMP
COOLANT GUN & AIR NOZZLE
SPINDLE AIR CURTAIN
CHIP ENCLOSURE
AUTOMATIC LUBRICATION SYSTEM
CUTTING & SPINDLE AIR BLAST
COOLANT EQUIPMENT
GUIDEWAY COVER (X,Y,Z)
LEVELING BLOCKS & BOLTS
HEAT EXCHANGER FOR ELECTRICAL CABINET
AC DIGITAL SERVO & SPINDLE DRIVES
SERVO MOTORS WITH ABSOLUTE ENCODER
AI NANO CC WITH 50 BLOCKS LOOK AHEAD
CUSTOM MACRO B & HIGH SPEED SKIP
ADDITIONAL WORK & TOOL OFFSETS
RANDOM ACCESS & BI-DIRECTIONAL TOOL MAGAZINE
THK NR TYPE LINEAR GUIDE ON X,Y & Z
4" SLIDEWAYS & 6 SLIDING BLOCKS ON THE Y-AXIS
6 SLIDING BLOCKS ON X-AXIS GUIDE FOR HEAVY LOAD
SERVO MOTORS DIRECT DIRECT COUPLE TO BALLSCREWS
PRE-TENSIONED HARDENED & GROUND BALLSCREWS
PISTON TYPE AUTO LUBRICATION SYSTEM
HIGH QUALITY AND RUGGED MEEHANITE CASTINGS
NEW 2008
SPECIFICATIONS:
TABLE SIZE: 53.1"x20.4"
TRAVELS:
X-AXIS: 50"
Y-AXIS: 20.4"
Z-AXIS: 21.1"
SPINDLE SPEED: 10,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: CAT 40
TOOLS: 24 ATC
EQUIPPED WITH:
FANUC MXP-100i 4 AXIS CONTROL
8.4" LCD COLOR MONITOR W/ DYNAMIC GRAPHIC
1,280M MEMORY, PCMCIA EXPANSION SLOT, RS-232C INTERFACE
FULL ALPHANUMERICAL KEYBOARD
4TH AXIS ROTARY TABLE
TAILSTOCK
RIGID TAPPING
TOOL KIT
OIL SKIMMER
WORK LAMP
COOLANT GUN & AIR NOZZLE
SPINDLE AIR CURTAIN
CHIP ENCLOSURE
AUTOMATIC LUBRICATION SYSTEM
CUTTING & SPINDLE AIR BLAST
COOLANT EQUIPMENT
GUIDEWAY COVER (X,Y,Z)
LEVELING BLOCKS & BOLTS
HEAT EXCHANGER FOR ELECTRICAL CABINET
AC DIGITAL SERVO & SPINDLE DRIVES
SERVO MOTORS WITH ABSOLUTE ENCODER
AI NANO CC WITH 50 BLOCKS LOOK AHEAD
CUSTOM MACRO B & HIGH SPEED SKIP
ADDITIONAL WORK & TOOL OFFSETS
RANDOM ACCESS & BI-DIRECTIONAL TOOL MAGAZINE
THK NR TYPE LINEAR GUIDE ON X,Y & Z
4" SLIDEWAYS & 6 SLIDING BLOCKS ON THE Y-AXIS
6 SLIDING BLOCKS ON X-AXIS GUIDE FOR HEAVY LOAD
SERVO MOTORS DIRECT DIRECT COUPLE TO BALLSCREWS
PRE-TENSIONED HARDENED & GROUND BALLSCREWS
PISTON TYPE AUTO LUBRICATION SYSTEM
HIGH QUALITY AND RUGGED MEEHANITE CASTINGS
