Machinery Network > Used Inventory > SUPERMAX MAX-1 REBEL

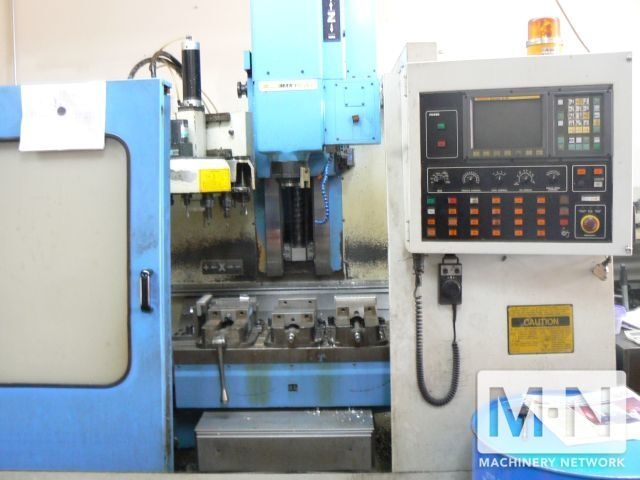

SUPERMAX MAX-1 REBEL

Type:

Vertical Machining Centers

Manufacturer:

SUPERMAX

Model:

MAX-1 REBEL

Condition:

Not Specified

Year:

1994

Stock #:

25038

Status:

Sold

Description:

FANUC OM, 25.59" x 15.70" x 18.10", 8K RPM, CAT 40

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED SUPERMAX MODEL MAX-1 REBEL VERTICAL MACHINING CENTER
NEW- 1994

SPECIFICATIONS:
RANGE TABLE TRAVEL (X-AXIS)....... 25.59"
SADDLE TRAVEL (Y-AXIS)............ 15.70"
SPINDLE TRAVEL (Z-AXIS)........... 18.10"
RAPID FEED RATE X & Y/Z............630/394 IPM
CUTTING FEED RATE X,Y,&Z...........1-196 IPM
SPINDLE HORSEPOWER (PEAK)......... 10/7.5 HP
SPINDLE SPEED RANGE............... 8,000 RPM
SPINDLE TOOL TAPER................ 40
TOOL TAPER........................ CAT 40
TOOL CHANGER CAPACITY............. 16
TABLE WORKING SURFACE............. 33.1" X 16.5"
HEIGHT ABOVE FLOOR................ 32.68"
TABLE LOAD........................ 770 LBS
FLOOR SPACE: 86.1" D X 83.0" W X 94.5" H
SHIPPING DIMENSIONS: 86.0" L X 84.0" W X 98.0" H

EQUIPPED WITH:

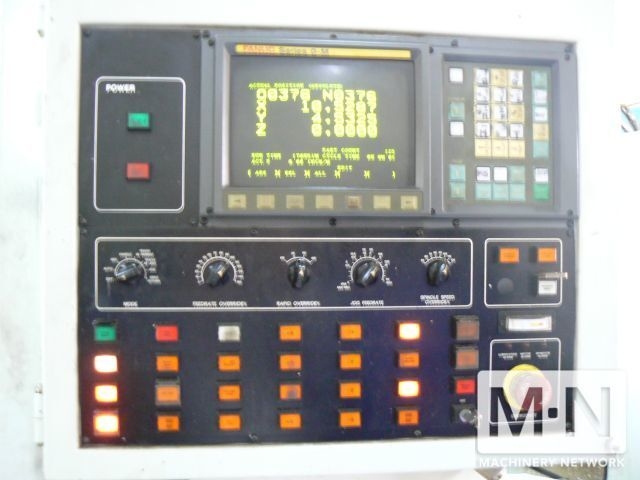

FANUC OM CNC CONTROL
