SUPERMAX XV-1020A
Type:
Vertical Machining Centers
Manufacturer:
SUPERMAX
Model:
XV-1020A
Condition:
Not Specified
Year:
2003
Stock #:
24151
Status:
Sold
Description:
FANUC MXP-100i, 40" x 20.4" x 21.2", 8K RPM, 24 ATC, CAT 40, 20HP,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

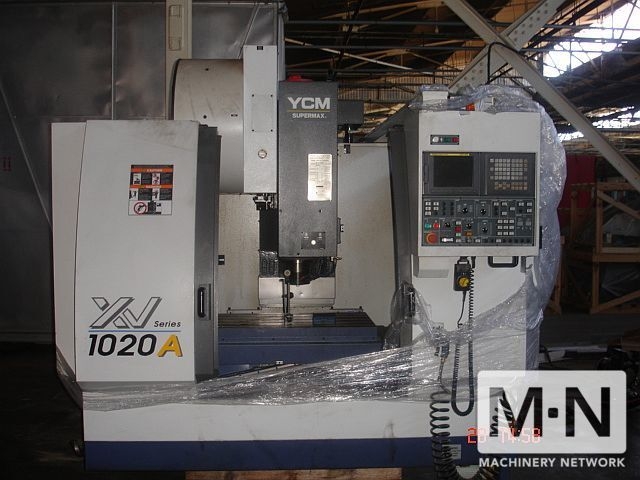

(1) USED YCI SUPERMAX XV-1020A CNC VERTICAL MACHINING CENTER
s/n: 303484, NEW 2003
SPECIFICATIONS:
TABLE TRAVELS X-AXIS 40"
Y-AXIS 20.4"
Z-AXIS 21.2"
SPINDLE MOTOR: 20 HP
SPINDLE TAPER: CAT 40
SPINDLE SPEED: 8,000 RPM
RAPID FEED RATE: 1418 IPM (X;Y);945 IPM(Z)
ATC: 24 ATC

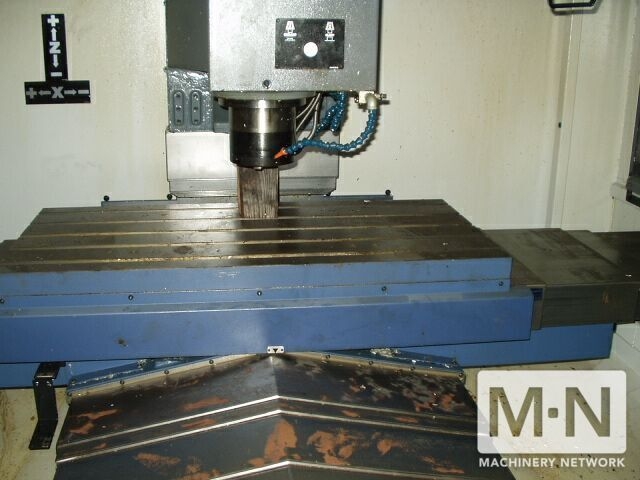

TABLE SIZE: 44" X 20.4"
TOOL CHANGE TIME: 2.5 SECONDS
MAX. TABLE LOAD: 1100 LBS
MACHINE WEIGHT: 11850 LBS
MACHINE DIMS: 120"W X 111"D X 115"H
EQUIPPED WITH:

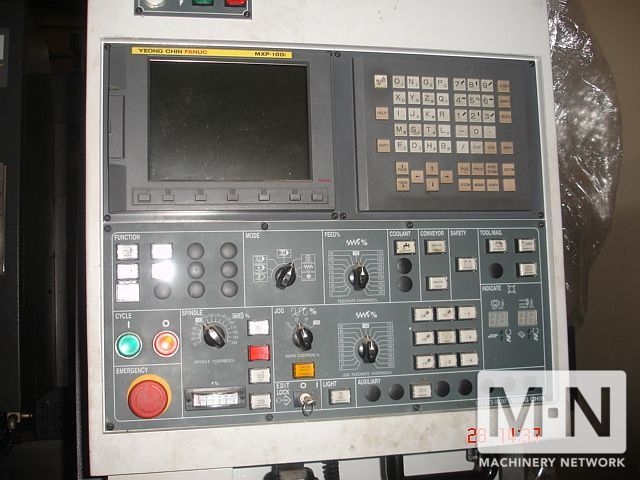

FANUC MXP100i CNC CONTROL W/HIGH SPEED CONTOURING
FULL ENCLOSURE
RIGID TAPPING
HELICAL INTERPOLATION
CHIP AUGER
INSPECT IN SOUTHERN CALIFORNIA
s/n: 303484, NEW 2003
SPECIFICATIONS:
TABLE TRAVELS X-AXIS 40"
Y-AXIS 20.4"
Z-AXIS 21.2"
SPINDLE MOTOR: 20 HP
SPINDLE TAPER: CAT 40
SPINDLE SPEED: 8,000 RPM
RAPID FEED RATE: 1418 IPM (X;Y);945 IPM(Z)
ATC: 24 ATC
TABLE SIZE: 44" X 20.4"
TOOL CHANGE TIME: 2.5 SECONDS
MAX. TABLE LOAD: 1100 LBS
MACHINE WEIGHT: 11850 LBS
MACHINE DIMS: 120"W X 111"D X 115"H
EQUIPPED WITH:
FANUC MXP100i CNC CONTROL W/HIGH SPEED CONTOURING
FULL ENCLOSURE
RIGID TAPPING
HELICAL INTERPOLATION
CHIP AUGER
INSPECT IN SOUTHERN CALIFORNIA
