SNK HPS-120B
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
SNK
Model:
HPS-120B
Condition:
Not Specified
Year:
2007
Stock #:
29375
Status:
Sold
Description:
FANUC 31i-A5, 48"x120" TBL,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

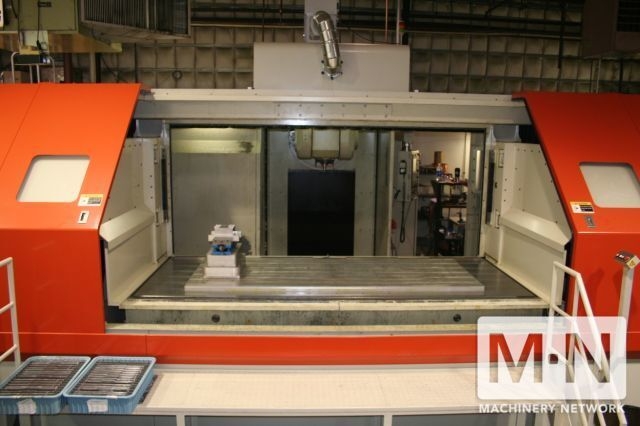

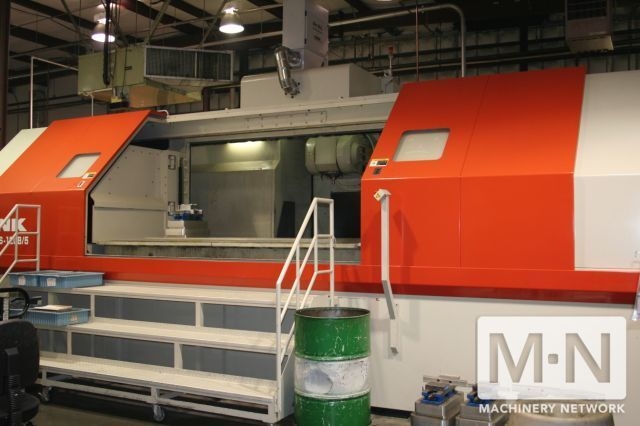

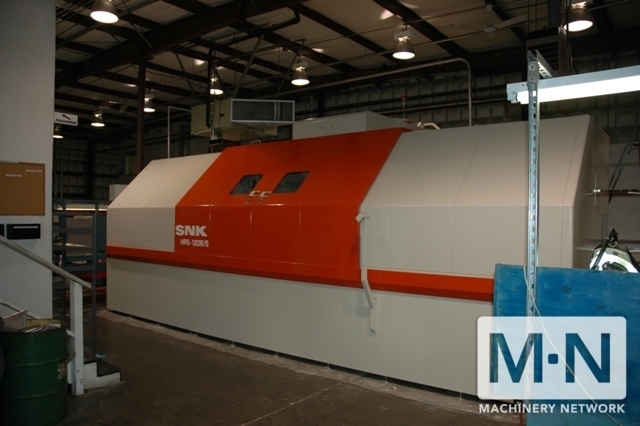

(1) USED SNK HPS-120B 5-AXIS CNC HORIZONTAL MACHINING CENTER
NEW 2007
SPECIFICATIONS:

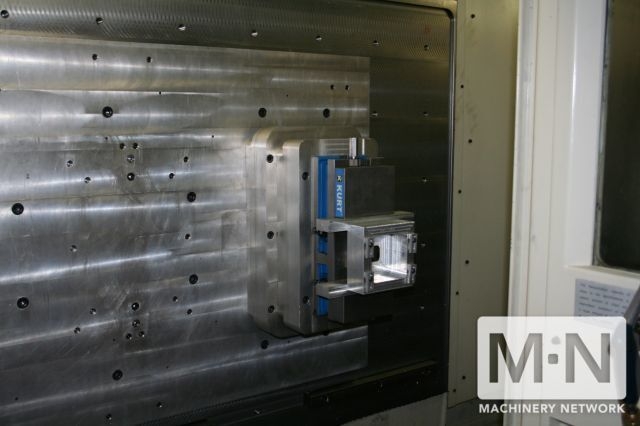

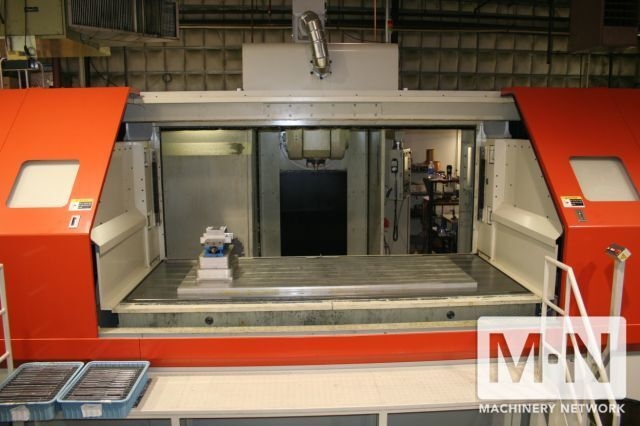

TABLE SIZE........................ 48" X 120"
DIST. FROM TABLE TOP TO SPINDLE... 2" to 30"
MAX. WORKPIECE WEIGHT ON TABLE.... 11,000 lbs.
X AXIS............................ 124"
Y AXIS............................ 52"
Z AxIS............................ 30"

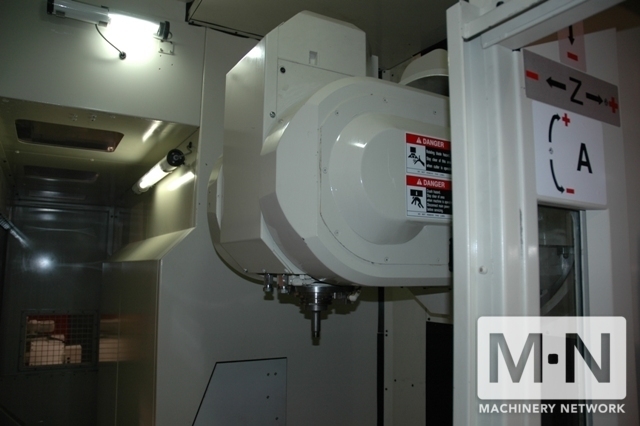

SPINDLEHEAD TILT / A AXIS......... +/- 90 DEG.
SPINDLEHEAD ROTATION / C AXIS..... +/- 270 DEG
NO. OF TOOL POSITIONS............. 60 ATC
SPINDLE TAPER..................... CAT 50
SPINDLE SPEEDS.................... 150 to 15,000 RPM
SPINDLE MOTOR..................... 50/40 HP
FEEDRATE:
RAPID TRAVERSE / X, Y AXIS........ 1,000 IPM
RAPID TRAVERSE / Z AXIS........... 800 IPM
RAPID TRAVERSE / A, C AXIS........ 3,600 DPM
FEEDRATE / X, Y, Z AXIS........... 0.01 TO 400 IPM
FEEDRATE / A, C AXIS.............. 0 TO 1,800 DPM
EQUIPPED WITH:

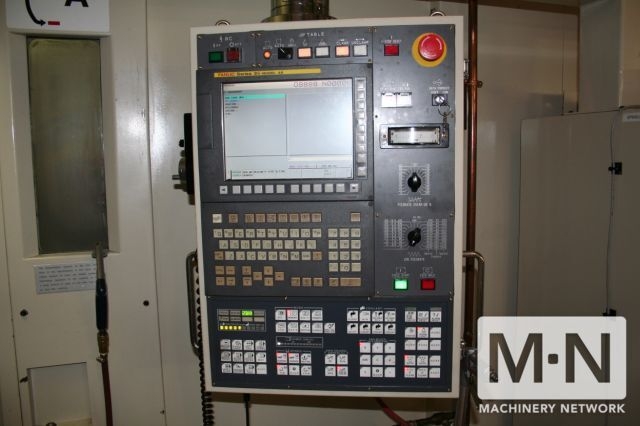

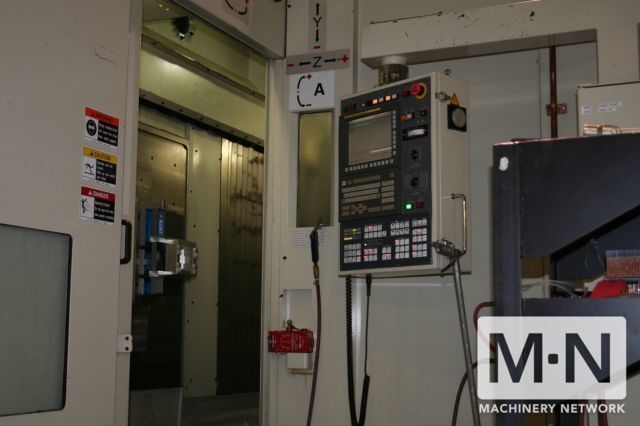

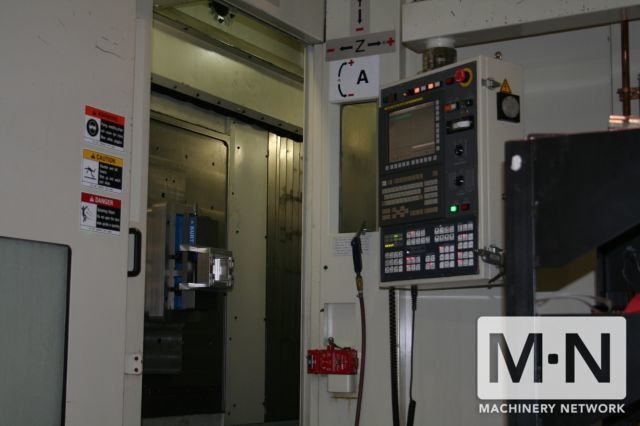

FANUC 31i-A5 CNC CONTROL
BIG PLUS SPINDLE
60 POSITION ATC
15,000 RPM SPINDLE (12,000 RPM STANDARD)
SCALES FEEDBACK: X,Y & Z-AXES

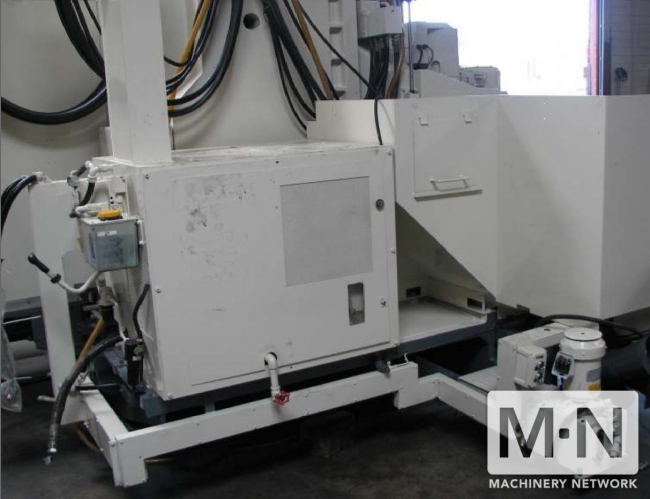

CHIP CONVEYOR
SPLASH GUARD
MIST COOLANT
AIR BLOW
3-LAMP INICATION LIGHT

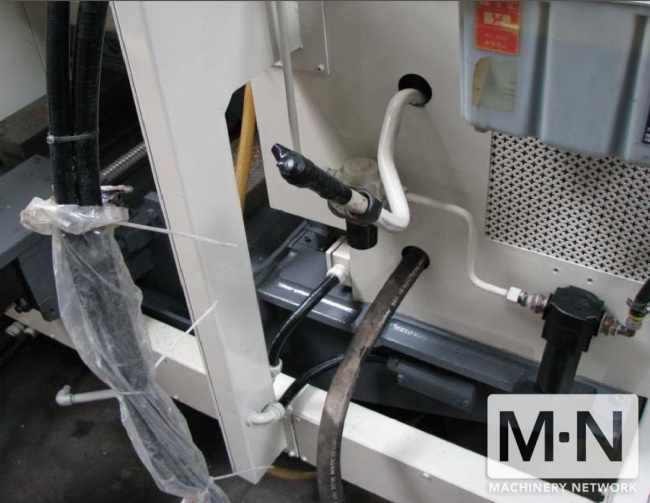

HIGH PRESSURE THRU TOOL COOLANT
ETHERNET DATA SERVER / ATA 320MB
PART PROGRAM STORAGE / 256KBYTE 640M
HELICAL INTERPOLATION
ADDITION OF WORK PIECE COORDINATE SYSTEM PAIRS (48 SETS)
RIDGED TAPPING
TOOL OFFSET MEMORY C
(20) CAT 50 TOOLHOLDERS (TO INCLUDE 5 "BIG KAISER" HOLDERS)
WORK HISTORY:TOOLING IS WORTH OVER 40K
RUN ALUMINUM ONLY !!!
** MACHINE IS IN EXCELLENT, LIKE NEW CONDITION.
** AVAILABLE IMMEDIATELY. IN PLANT & UNDER POWER FOR INSPECTION.
NEW 2007
SPECIFICATIONS:
TABLE SIZE........................ 48" X 120"
DIST. FROM TABLE TOP TO SPINDLE... 2" to 30"
MAX. WORKPIECE WEIGHT ON TABLE.... 11,000 lbs.
X AXIS............................ 124"
Y AXIS............................ 52"
Z AxIS............................ 30"
SPINDLEHEAD TILT / A AXIS......... +/- 90 DEG.
SPINDLEHEAD ROTATION / C AXIS..... +/- 270 DEG
NO. OF TOOL POSITIONS............. 60 ATC
SPINDLE TAPER..................... CAT 50
SPINDLE SPEEDS.................... 150 to 15,000 RPM
SPINDLE MOTOR..................... 50/40 HP
FEEDRATE:
RAPID TRAVERSE / X, Y AXIS........ 1,000 IPM
RAPID TRAVERSE / Z AXIS........... 800 IPM
RAPID TRAVERSE / A, C AXIS........ 3,600 DPM
FEEDRATE / X, Y, Z AXIS........... 0.01 TO 400 IPM
FEEDRATE / A, C AXIS.............. 0 TO 1,800 DPM
EQUIPPED WITH:
FANUC 31i-A5 CNC CONTROL
BIG PLUS SPINDLE
60 POSITION ATC
15,000 RPM SPINDLE (12,000 RPM STANDARD)
SCALES FEEDBACK: X,Y & Z-AXES
CHIP CONVEYOR
SPLASH GUARD
MIST COOLANT
AIR BLOW
3-LAMP INICATION LIGHT
HIGH PRESSURE THRU TOOL COOLANT
ETHERNET DATA SERVER / ATA 320MB
PART PROGRAM STORAGE / 256KBYTE 640M
HELICAL INTERPOLATION
ADDITION OF WORK PIECE COORDINATE SYSTEM PAIRS (48 SETS)
RIDGED TAPPING
TOOL OFFSET MEMORY C
(20) CAT 50 TOOLHOLDERS (TO INCLUDE 5 "BIG KAISER" HOLDERS)
WORK HISTORY:TOOLING IS WORTH OVER 40K
RUN ALUMINUM ONLY !!!
** MACHINE IS IN EXCELLENT, LIKE NEW CONDITION.
** AVAILABLE IMMEDIATELY. IN PLANT & UNDER POWER FOR INSPECTION.
