HAAS TL-15
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HAAS
Model:
TL-15
Condition:
Not Specified
Year:
2008
Stock #:
29299
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED HAAS TL-15 CNC TURNING CENTER W/ SUB SPINDLE & LIVE TOOLING.........
NEW 2008
SPECIFICATIONS:
SWING OVER FRONT APRON: 23"
SWING OVER CROSS SLIDE: 9.5"
CHUCK SIZE: 8.3"
SUB SPINDLE CHUCK SIZE: 5.3"
MAX CUTTING DIAMETER: 8.2"
MAX CUTTING LENGTH: 17.5"
BAR CAPACITY: 2"
SUB SPINDLE BAR CAPACITY: 1.18"
BETWEEN CENTERS: 12.7"
X-AXIS: 7.5"
Z-AXIS: 17.50"
RAPIDS ON X,Z: 1200, 710 IPM
MAX THRUST X,Z: 2400, 3700 LB
SPINDLE NOSE: A2-6
SPINDLE MOTOR: 20 HP
SUB SPINDLE MOTOR: 8 HP
SPINDLE SPEED: 4,000 RPM
EQUIPPED WITH:
HAAS CNC CONTROL
CHIP CONVEYOR, BELT TYPE
LIVE TOOLING C AXIS
PARTS CATCHER SYSTEM
A2-6-16C COLLET NOSE
HIGH INTENSITY LIGHTING
TOOL PRESETTER
SPINDLE ORIENTATION
RIGID TAPPING
HAAS INTUITIVE PROGRAMMING
(2) AXIAL DRIVEN TOOL HOLDER
(2) RADIAL DRIVEN TOOL HOLDER

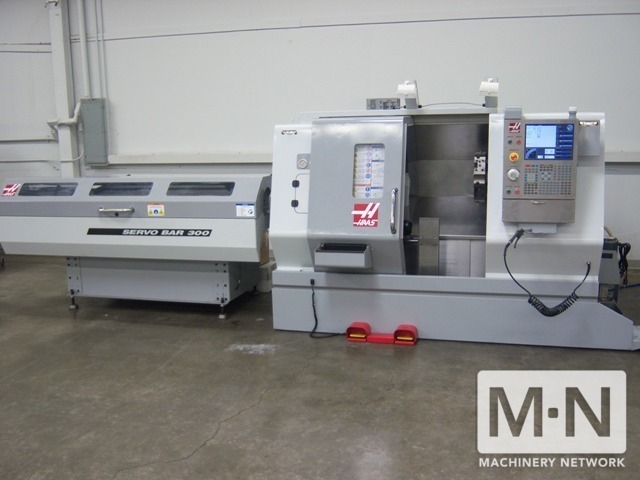

(BARFEED SHOWN IN PICTURE IS NOT INCLUDED)
NEW 2008
SPECIFICATIONS:
SWING OVER FRONT APRON: 23"
SWING OVER CROSS SLIDE: 9.5"
CHUCK SIZE: 8.3"
SUB SPINDLE CHUCK SIZE: 5.3"
MAX CUTTING DIAMETER: 8.2"
MAX CUTTING LENGTH: 17.5"
BAR CAPACITY: 2"
SUB SPINDLE BAR CAPACITY: 1.18"
BETWEEN CENTERS: 12.7"
X-AXIS: 7.5"
Z-AXIS: 17.50"
RAPIDS ON X,Z: 1200, 710 IPM
MAX THRUST X,Z: 2400, 3700 LB
SPINDLE NOSE: A2-6
SPINDLE MOTOR: 20 HP
SUB SPINDLE MOTOR: 8 HP
SPINDLE SPEED: 4,000 RPM
EQUIPPED WITH:
HAAS CNC CONTROL
CHIP CONVEYOR, BELT TYPE
LIVE TOOLING C AXIS
PARTS CATCHER SYSTEM
A2-6-16C COLLET NOSE
HIGH INTENSITY LIGHTING
TOOL PRESETTER
SPINDLE ORIENTATION
RIGID TAPPING
HAAS INTUITIVE PROGRAMMING
(2) AXIAL DRIVEN TOOL HOLDER
(2) RADIAL DRIVEN TOOL HOLDER
(BARFEED SHOWN IN PICTURE IS NOT INCLUDED)
