HYUNDAI KIA HIT-18S
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HYUNDAI KIA
Model:
HIT-18S
Condition:
Not Specified
Year:
1999
Stock #:
29097
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

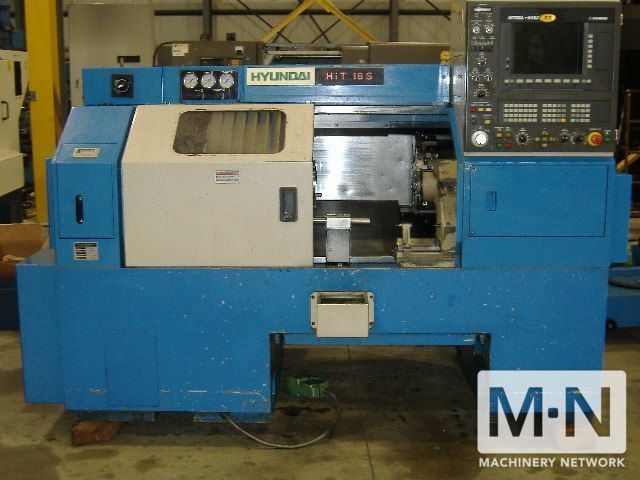

(1) USED HYUNDIA KIA HIT-18S CNC LATHE
NEW 1999
SPECIFICATIONS:
MAXIMUM SWING: 17.3"
MAXIMUM CUTTING (DIAMETER X LENGTH): 11" X 20"
MAXIMUM BAR WORK SIZE: 2.8"
SPINDLE SPEED, MAXIMUM: 3600 RPM
SPINDLE DRIVE MOTOR: AC 20 HP
SPINDLE NOSE/BORE: A2-8/3.1"
TRAVEL (X/Z): 7"/20"
RAPID TRAVERSE (X/Z): 1180 IPM/1180 IPM

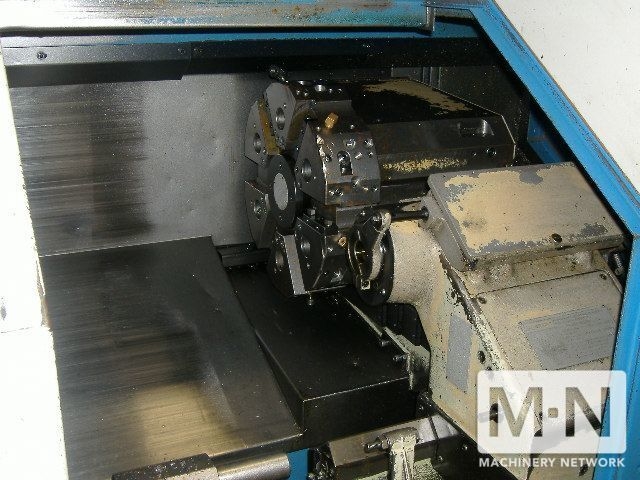

TOOL CAPACITY: 8 EACH
TURRET INDEX TIME (1/FULL STEP): 0.35 SEC./0.72 SEC
DIAMETER OF TAILSTOCK QUILL: 3.1"
STROKE OF TAILSTOCK QUILL: 5.1"
TAPER TYPE: MT #4
STROKE OF TAILSTOCK BODY: 18.1"
BED TYPE: FLAT
FLOOR SPACE: 101.1"L X 64.2"W
MACHINE HEIGHT: 72"
ELECTRICAL POWER SUPPLY: 44 kVA
MACHINE WEIGHT: 9,480 LBS
ELECTRICS: 220V, 3 PH, 60 CYC

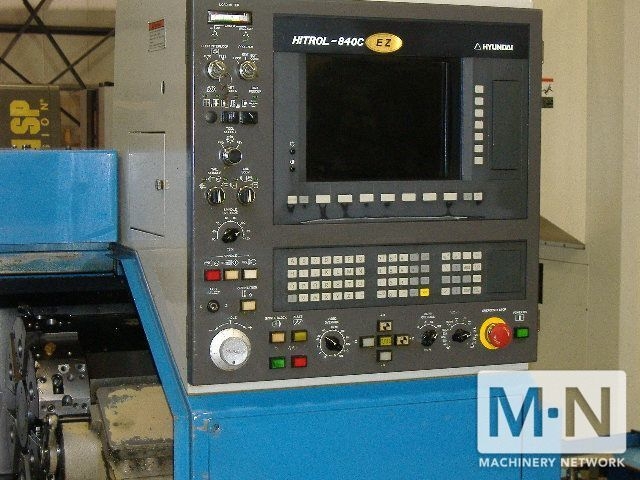

HiTROL 840C CNC CONTROL SPECIFICATIONS:
14" COLOR SCREEN
FIVE-LINE PROGRAM WINDOW FOR DISPLAYING THE CURRENT BLOCK
OPERATOR GUIDANCE USING 14 SOFTKEYS WITH SOFTKEY MENUS
EASY EDITING WITH THE INTEGRATED TEXT EDITOR
(INSERT/FIND STRING/INSERT BLOCK NUMBER ETC.)
AUTOMATIC
JOG
TEACH IN
MDI (MANUAL DATA INPUT)
THREE M FUNCTIONS PER CNC BLOCK
SUBROUTINE TECHNIQUE
ABSOLUTE & INCREMENTAL PROGRAMMING
POLAR COORDINATES, ALSO CIRCULAR
ORIENTED SPINDLE STOP
CONSTANT CUTTING SPEED
SPINDLE OVERRIDE 50% TO 120% ETC.
LINEAR & CIRCULAR INTERPOLATION
FEEDRATE OVERRIDE 0~100%
TOOL OFFSETS 819 BLOCKS FOR TOOL NUMBER, TOOL TYPE GEOMETRY,
WEAR, BASIC DIMENSION
TOOL NOSE/CUTTER RADIUS PATH COMPENSATION
BACKLASH COMPENSATION PER AXIS
PROGRAMMING INPUT SIMULTANEOUS WITH MACHINING
DATA EXCHANGE: RS232C/TTY INTERFACE
INTERFACE DIAGNOSTICS
WORKING AREA LIMITATION, PROGRAMMABLE
EQUIPPED WITH
SIEMENS HiTROL 840C CONTROL WITH 14" COLOR CRT

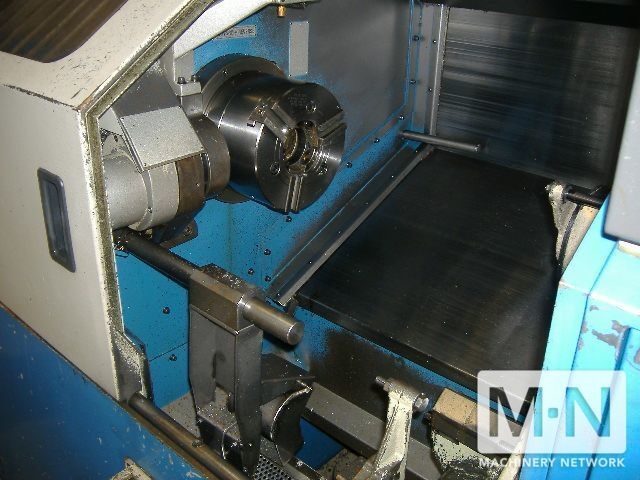

8" 3-JAW CHUCK
TOOL PRESETTER
PARTS CATCHER
MAYFRAN CHIP CONVEYOR
MISCELLANEOUS TOOLHOLDERS
NEW 1999
SPECIFICATIONS:
MAXIMUM SWING: 17.3"
MAXIMUM CUTTING (DIAMETER X LENGTH): 11" X 20"
MAXIMUM BAR WORK SIZE: 2.8"
SPINDLE SPEED, MAXIMUM: 3600 RPM
SPINDLE DRIVE MOTOR: AC 20 HP
SPINDLE NOSE/BORE: A2-8/3.1"
TRAVEL (X/Z): 7"/20"
RAPID TRAVERSE (X/Z): 1180 IPM/1180 IPM
TOOL CAPACITY: 8 EACH
TURRET INDEX TIME (1/FULL STEP): 0.35 SEC./0.72 SEC
DIAMETER OF TAILSTOCK QUILL: 3.1"
STROKE OF TAILSTOCK QUILL: 5.1"
TAPER TYPE: MT #4
STROKE OF TAILSTOCK BODY: 18.1"
BED TYPE: FLAT
FLOOR SPACE: 101.1"L X 64.2"W
MACHINE HEIGHT: 72"
ELECTRICAL POWER SUPPLY: 44 kVA
MACHINE WEIGHT: 9,480 LBS
ELECTRICS: 220V, 3 PH, 60 CYC
HiTROL 840C CNC CONTROL SPECIFICATIONS:
14" COLOR SCREEN
FIVE-LINE PROGRAM WINDOW FOR DISPLAYING THE CURRENT BLOCK
OPERATOR GUIDANCE USING 14 SOFTKEYS WITH SOFTKEY MENUS
EASY EDITING WITH THE INTEGRATED TEXT EDITOR
(INSERT/FIND STRING/INSERT BLOCK NUMBER ETC.)
AUTOMATIC
JOG
TEACH IN
MDI (MANUAL DATA INPUT)
THREE M FUNCTIONS PER CNC BLOCK
SUBROUTINE TECHNIQUE
ABSOLUTE & INCREMENTAL PROGRAMMING
POLAR COORDINATES, ALSO CIRCULAR
ORIENTED SPINDLE STOP
CONSTANT CUTTING SPEED
SPINDLE OVERRIDE 50% TO 120% ETC.
LINEAR & CIRCULAR INTERPOLATION
FEEDRATE OVERRIDE 0~100%
TOOL OFFSETS 819 BLOCKS FOR TOOL NUMBER, TOOL TYPE GEOMETRY,
WEAR, BASIC DIMENSION
TOOL NOSE/CUTTER RADIUS PATH COMPENSATION
BACKLASH COMPENSATION PER AXIS
PROGRAMMING INPUT SIMULTANEOUS WITH MACHINING
DATA EXCHANGE: RS232C/TTY INTERFACE
INTERFACE DIAGNOSTICS
WORKING AREA LIMITATION, PROGRAMMABLE
EQUIPPED WITH
SIEMENS HiTROL 840C CONTROL WITH 14" COLOR CRT
8" 3-JAW CHUCK
TOOL PRESETTER
PARTS CATCHER
MAYFRAN CHIP CONVEYOR
MISCELLANEOUS TOOLHOLDERS
