Machinery Network > Used Inventory > BRIDGEPORT EZ-PATH III SL

BRIDGEPORT EZ-PATH III SL

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

BRIDGEPORT

Model:

EZ-PATH III SL

Condition:

Not Specified

Year:

1998

Stock #:

27825

Status:

Sold

Description:

27"X80", BPCT CTRL,

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

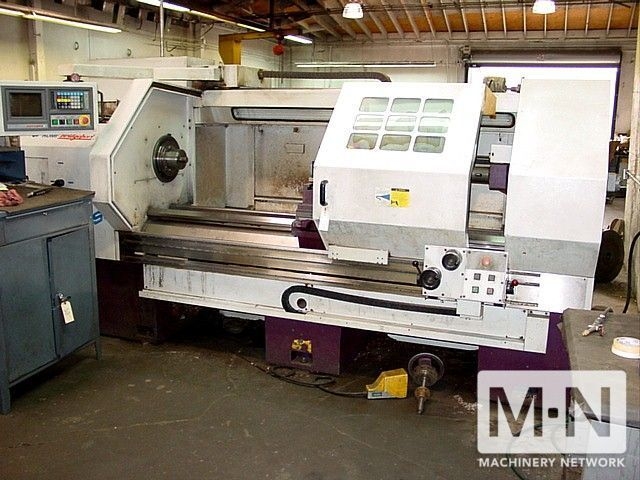

(1) USED 27" X 80" BRIDGEPORT ROMI EZ PATH III S LATHE
S/N: 084663, NEW: 1999

SPECIFICATIONS:
SWING OVER BED......................... 27"
DISTANCE BETWEEN CENTERS............... 80"
SWING OVER CROSS SLIDE................. 16.93"
CROSS SLIDE TRAVEL .................... 14.17"
SPINDLE NOSE........................... ASA A2-8"
SPINDLE BORE........................... 3"
SPINDLE SPEEDS VARIABLE ............... 25 TO 2,000 RPM
TAILSTOCK QUILL TRAVEL................. 7.09"
TAILSTOCK QUILL DIAMETER............... 3.94"
TAILSTOCK TAPER........................ #5MT
FLOOR SPACE REQUIRED................... 80" X 176"
APPROXIMATE WEIGHT..................... 15,000 LBS.

EQUIPPED WITH:
- BRIDGEPORT EZ PATH BPCT CNC CONTROL, 32 BIT PROCESSOR WITH
- TURN PARTS MANUALLY OR AUTOMATICALLY
- "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY
- 24 OFFSETS, GRAPHIC TOOL LIBRARY, TOOL PATH VIEWED ON-SCREEN
- THREADING, TURNING, DRILLING, GROOVING, FACING CYCLES & MORE
- DUAL ELECTRONIC HANDWHEELS
- 3.5" FLOPPY DISK DRIVE & RS 232 PORT
- DORIAN QUICK CHANGE TOOLPOST W/ HOLDERS
- SPLASH GUARDING SINGLE SLIDING DOOR
- COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
- 20 HORSE POWER SPINDLE MOTOR
- AC BRUSHLESS SERVO MOTORS & DRIVES
- MANUALS
