TAKAHASHI MICRO STAR TNC-LO
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
TAKAHASHI
Model:
MICRO STAR TNC-LO
Condition:
Not Specified
Year:
1997
Stock #:
25878
Status:
Sold
Description:
FANUC 21T, 5-C COLLET/ 5" CHUCK, GANG TYPE, 1.3" BORE, 4K RPM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

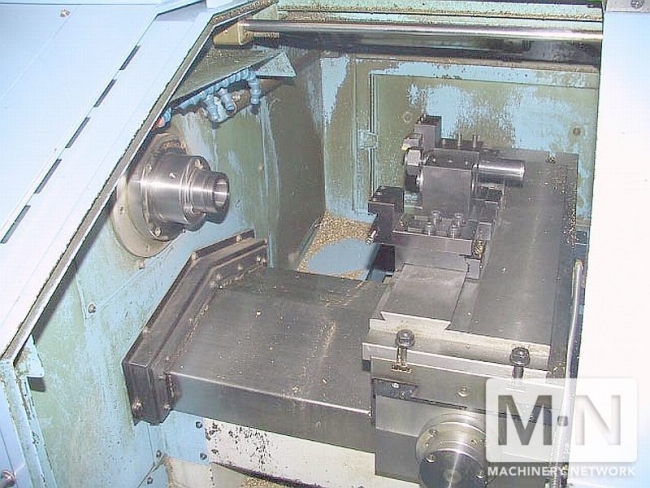

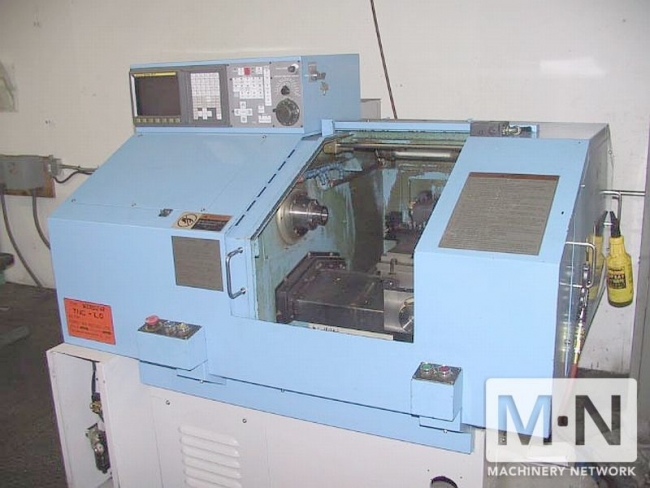

(1) USED TAKAHASHI MICROSTAR TNC-LO
GANG TYPE CNC LATHE - NEW -1997
SPECIFICATIONS:
WORKPIECE DIAMETER MAX: 5.5"
WORKPIECE LENGTH MAX: 4.7"
CHUCK SIZE MAX: 6"
X-AXIS TRAVEL: 9.8"
Z-AXIS TRAVEL: 9.8"
BARSTOCK DIAMETER: .98"
SPINDLE NOSE CONFIGURATION: JIS A2-3
SPINDLE THRU HOLE DIAMETER: 1.3"
SPINDLE SPEEDS: 400-4000 RPM
X-AXIS RAPID TRAVERSE SPEED: 236.2"/MIN
Z-AXIS RAPID TRAVERSE SPEED: 472.4"/MIN
SPINDLE MOTOR: 3 HP (A/C)
MACHINE DIMENSIONS: 57.5" X 44.3" X 60.7"
MACHINE WEIGHT: 3,527 LBS
EQUIPPED WITH:

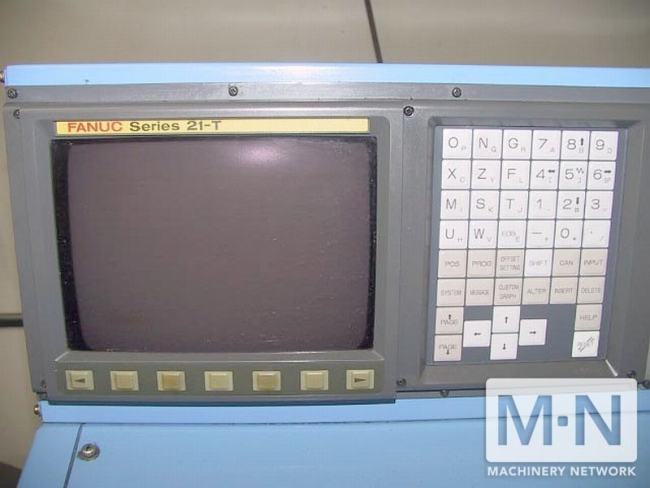

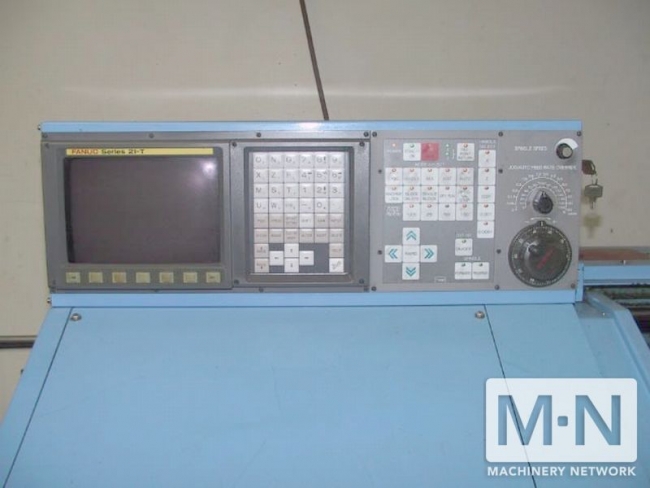

FANUC 21T CNC CONTROL

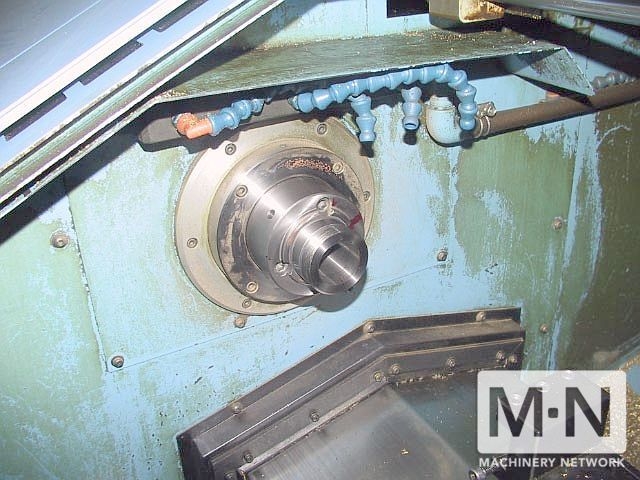

5-C COLLET
5" CHUCK
(3) I.D. HOLDERS
(4) O.D. HOLDERS
GANG TYPE CNC LATHE - NEW -1997
SPECIFICATIONS:
WORKPIECE DIAMETER MAX: 5.5"
WORKPIECE LENGTH MAX: 4.7"
CHUCK SIZE MAX: 6"
X-AXIS TRAVEL: 9.8"
Z-AXIS TRAVEL: 9.8"
BARSTOCK DIAMETER: .98"
SPINDLE NOSE CONFIGURATION: JIS A2-3
SPINDLE THRU HOLE DIAMETER: 1.3"
SPINDLE SPEEDS: 400-4000 RPM
X-AXIS RAPID TRAVERSE SPEED: 236.2"/MIN
Z-AXIS RAPID TRAVERSE SPEED: 472.4"/MIN
SPINDLE MOTOR: 3 HP (A/C)
MACHINE DIMENSIONS: 57.5" X 44.3" X 60.7"
MACHINE WEIGHT: 3,527 LBS
EQUIPPED WITH:
FANUC 21T CNC CONTROL
5-C COLLET
5" CHUCK
(3) I.D. HOLDERS
(4) O.D. HOLDERS
