STRIPPIT 1250H20

Type:

PUNCHES, TURRET, N/C & CNC

Manufacturer:

STRIPPIT

Model:

1250H20

Condition:

Not Specified

Year:

1997

Stock #:

25521

Status:

Sold

Description:

22 TONS, 20 STNS. 3 A.I., "THIN", 50" X 50", FANUC 0P, MULTI TOOL

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

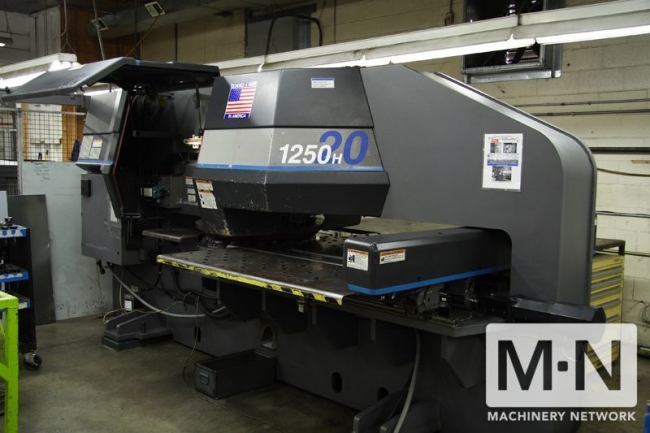

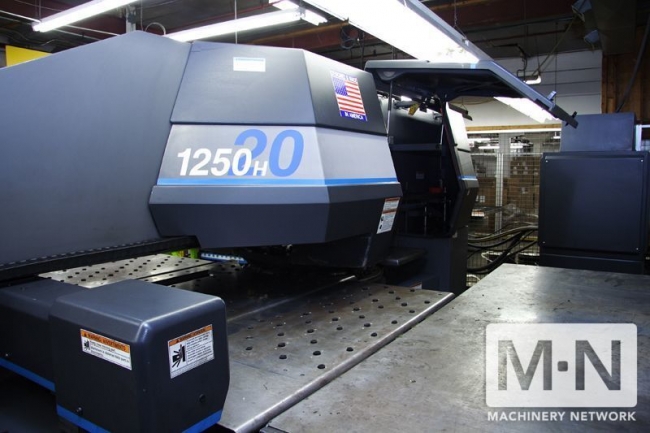

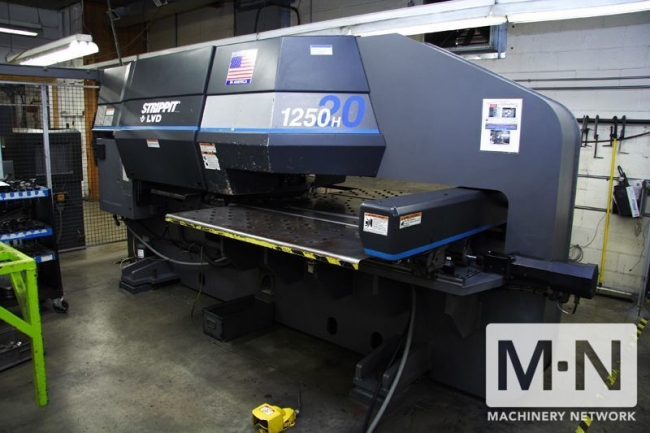

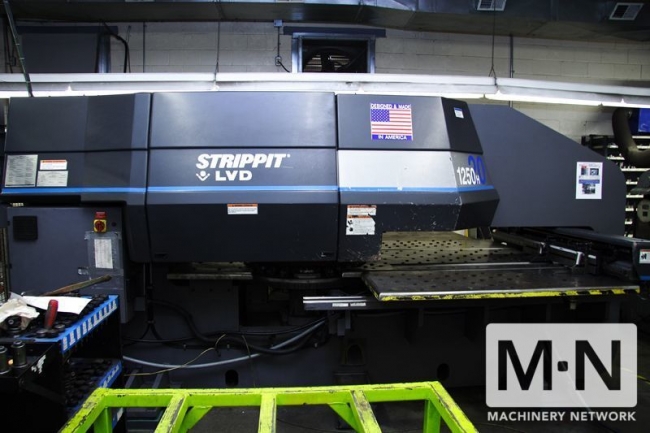

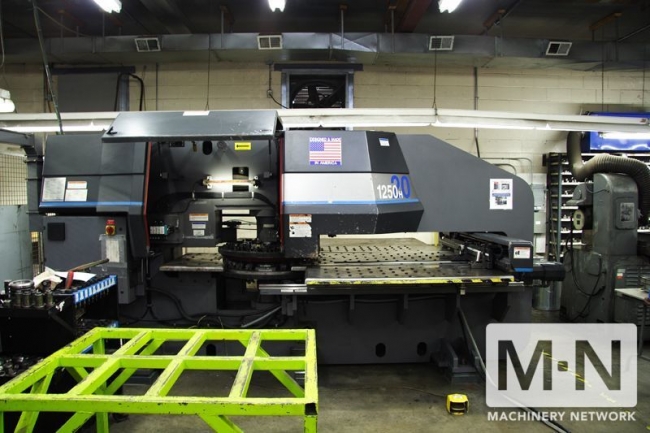

22 Ton Strippit/LVD CNC Turret Punch Press
Age: 1997
Model: 1250 H/20

Tonnage Capacity ..................... 22 Tons
Table Travel ......................... 50" x 50"
Nominal Work Piece Size............... 49.2" x 98.4"
Maximum Work Piece Weight ............ 205 Lbs.
Maximum Sheet Thickness .............. .250"
Maximum Hole Diameter ................ 3.5" in .074"
Maximum Hole in Maximum Thickess ..... 1.169" in .250"
Hits Per Minute On 1" Moves .......... 440
Hits Per Minute On .062" Moves ....... 1000
Axis Speed ........................... 3,150"/Min.
Shipping Weight ...................... 27,185 Lbs.

Equipped With:
"Smart Stroke" Hydraulic Press Drive

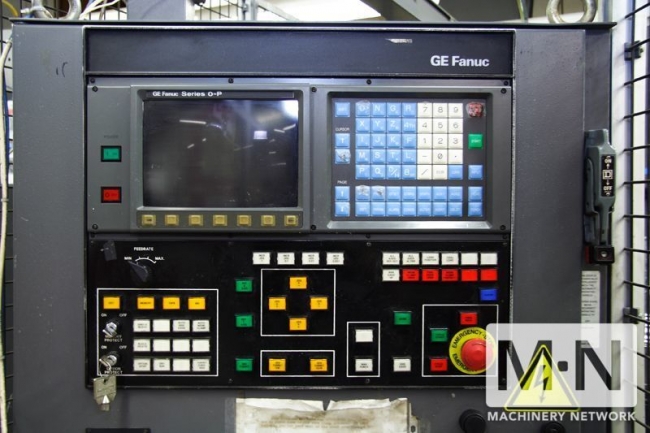

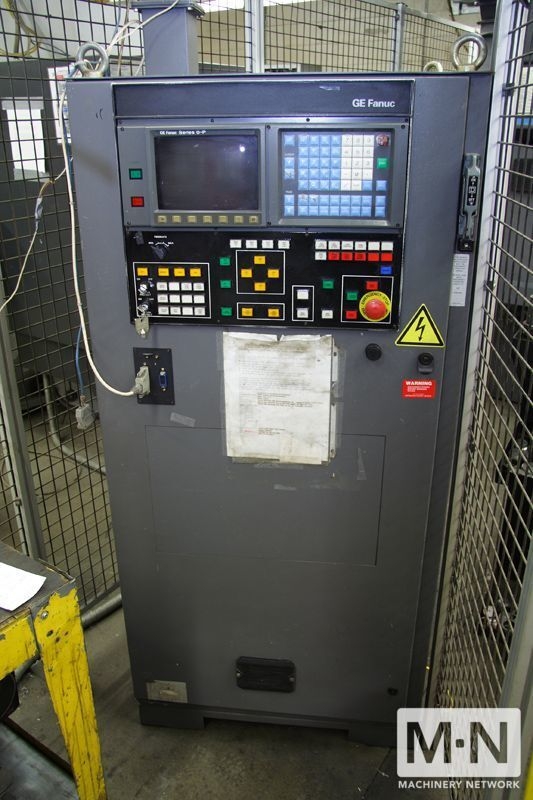

Fanuc OP CNC Control

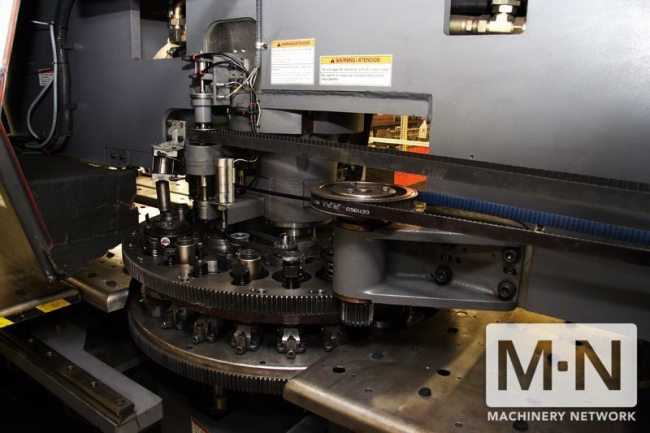

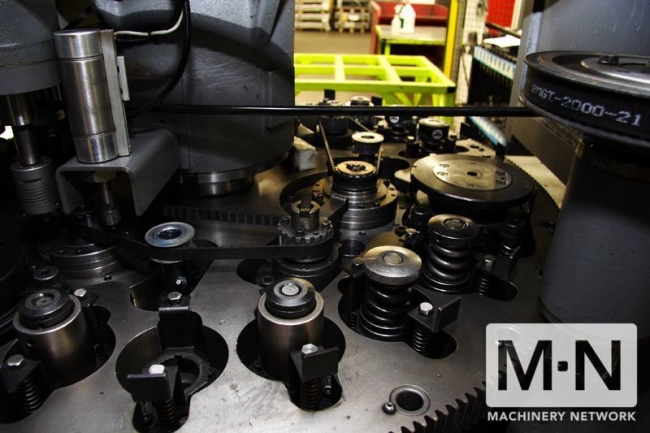

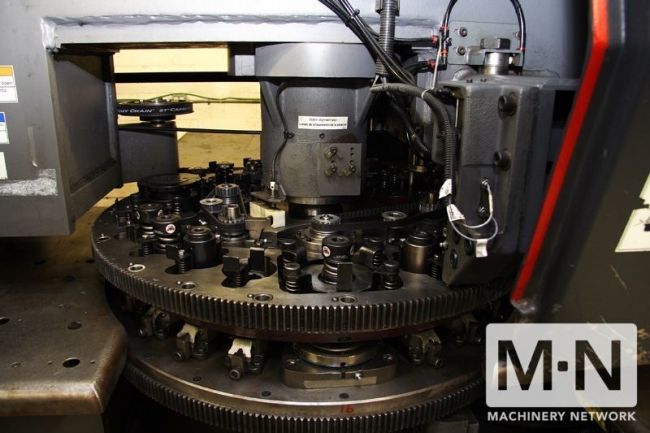

20 Station Thin Turret
(3) 3-1/2" Auto Index Stations

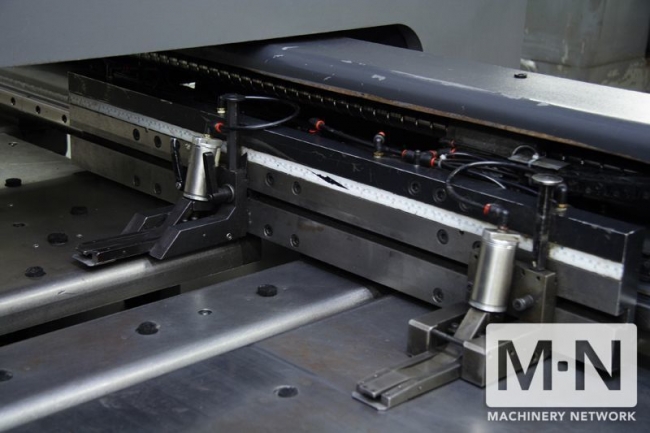

Automatic Sheet Repositioning
(3) 3-1/2" Holders & (1) MultiHead & Die
Brush Table

For further information please call Harvey Geller at 714-968-9985
