TRUMPF TC2010

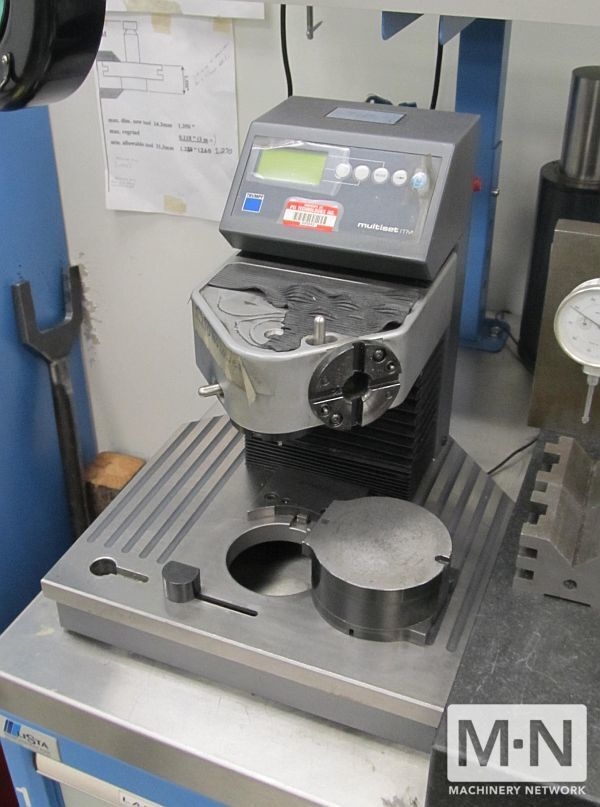

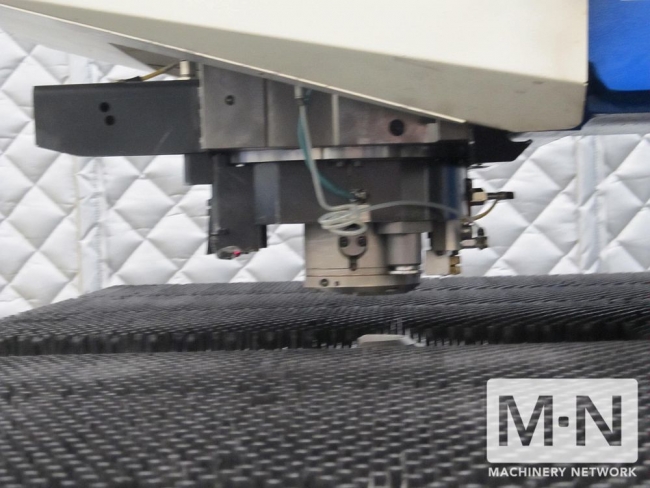

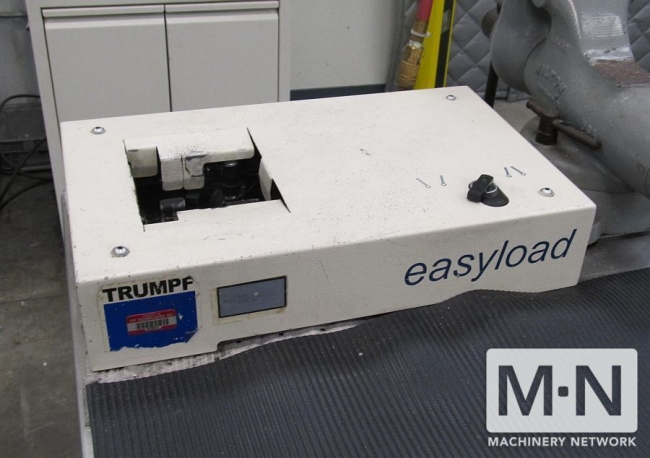

We are pleased to offer the following for your consideration: ONE (1) USED 20 TON TRUMPF TRUMATIC 2010 ROTATION CNC PUNCHING CENTER MFG:NOV. 2002 - INSTALLED NEW:2003 - APPROX:20,800 HOURS TRUMPF EASY LOAD TOOL ASSEMBLY/DISASSEMBLY UNIT & TOOL PRESETTER SPECIFICATIONS: WORKING RANGE: (X x Y) WITHOUT REPOSITIONING.......................... 50" X 50" CAPACITIES: MAX. SHEET THICKNESS................................... .25" MAX. PUNCHING TONNAGE.................................. 20 TON MAX. WORKPIECE WEIGHT.................................. 175 LBS SPEEDS: X AXIS................................................. 3600 IPM Y AXIS................................................. 2400 IPM SIMULTANEOUS (X AND Y)................................. 4300 IPM STROKE RATE, PUNCHING .040" PITCH...................... 900 1/MIN STROKE RATE, PUNCHING 1.00" PITCH...................... 420 1/MIN STROKE RATE, WITH MARKING/ BEADING OPTION C AXIS....... 2200 1/MIN C AXIS................................................. 3 ROTATIONS/ SEC TOOLS: MAX. NUMBER OF TOOLS................................... 1 TO 100 TOOLS ROTATION OF ALL TOOLS.................................. 360 BI-DIRECTIONAL TOOL CHANGE TIME: -SINGLE TOOL/ MULTITOOL................................ 3.5 SEC/ .9 SEC. MAX PUNCH DIAMETER..................................... 3" (ALL TOOL STATIONS) MAX. FORMING HEIGHT.................................... 0.500" PROGRAMMABLE PARTS CHUTE: MAX PART SIZE.......................................... 8.00" X 8.00" AUTOMATIC SORTING INTO TWO CONTAINERS ACCURACY: POSITIONING ACCURACY................................... +/- 0.004" REPEATABILITY.......................................... +/- 0.0012" DRIVE: X/Y/C AXIS............................................. MAINTENANCE-FREE DIGITAL AC MOTORS PUNCHING HEAD.......................................... HYDRAULIC WITH CLOSED LOOP CONTROL CONTROL: BASIS: BOSCH TYPE 3: PLATFORM................................................ PC PENTIUM FOR WINDOWS NT PROGRAM STORAGE......................................... 64 MB FLOPPY DRIVE............................................ 3.5" WORKSHOP PROGRAMMING.................................... TOPS LIGHT POWER REQUIREMENTS: ELECTRICAL.............................................. 18 KVA PNEUMATIC............................................... 95 PSI DIMENSIONS AND WEIGHTS (APPROX.): SPACE REQUIREMENTS-MACHINE ONLY......................... 22'(L) X 25' (W) HEIGHT.................................................. 8' WEIGHT.................................................. 25,000 LBS PLEASE CLICK ON THE FOLLOWING LINK TO SEE A VIDEO UNDER POWER http://www.youtube.com/watch?v=c-pU5c5dQaU&feature=youtu.be PRICE: $89,500.00 At your request, we previously quoted you a similar machine. The above machine has recently become available and we thought you would appreciate receiving this quote. If you are no longer in the market for this type of machine, please contact us via email, phone, or fax and we will immediately remove you from our list. FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985

We are pleased to offer the following for your consideration: ONE (1) USED 20 TON TRUMPF TRUMATIC 2010 ROTATION CNC PUNCHING CENTER MFG:NOV. 2002 - INSTALLED NEW:2003 - APPROX:20,800 HOURS TRUMPF EASY LOAD TOOL ASSEMBLY/DISASSEMBLY UNIT & TOOL PRESETTER SPECIFICATIONS: WORKING RANGE: (X x Y) WITHOUT REPOSITIONING.......................... 50" X 50" CAPACITIES: MAX. SHEET THICKNESS................................... .25" MAX. PUNCHING TONNAGE.................................. 20 TON MAX. WORKPIECE WEIGHT.................................. 175 LBS SPEEDS: X AXIS................................................. 3600 IPM Y AXIS................................................. 2400 IPM SIMULTANEOUS (X AND Y)................................. 4300 IPM STROKE RATE, PUNCHING .040" PITCH...................... 900 1/MIN STROKE RATE, PUNCHING 1.00" PITCH...................... 420 1/MIN STROKE RATE, WITH MARKING/ BEADING OPTION C AXIS....... 2200 1/MIN C AXIS................................................. 3 ROTATIONS/ SEC TOOLS: MAX. NUMBER OF TOOLS................................... 1 TO 100 TOOLS ROTATION OF ALL TOOLS.................................. 360 BI-DIRECTIONAL TOOL CHANGE TIME: -SINGLE TOOL/ MULTITOOL................................ 3.5 SEC/ .9 SEC. MAX PUNCH DIAMETER..................................... 3" (ALL TOOL STATIONS) MAX. FORMING HEIGHT.................................... 0.500" PROGRAMMABLE PARTS CHUTE: MAX PART SIZE.......................................... 8.00" X 8.00" AUTOMATIC SORTING INTO TWO CONTAINERS ACCURACY: POSITIONING ACCURACY................................... +/- 0.004" REPEATABILITY.......................................... +/- 0.0012" DRIVE: X/Y/C AXIS............................................. MAINTENANCE-FREE DIGITAL AC MOTORS PUNCHING HEAD.......................................... HYDRAULIC WITH CLOSED LOOP CONTROL CONTROL: BASIS: BOSCH TYPE 3: PLATFORM................................................ PC PENTIUM FOR WINDOWS NT PROGRAM STORAGE......................................... 64 MB FLOPPY DRIVE............................................ 3.5" WORKSHOP PROGRAMMING.................................... TOPS LIGHT POWER REQUIREMENTS: ELECTRICAL.............................................. 18 KVA PNEUMATIC............................................... 95 PSI DIMENSIONS AND WEIGHTS (APPROX.): SPACE REQUIREMENTS-MACHINE ONLY......................... 22'(L) X 25' (W) HEIGHT.................................................. 8' WEIGHT.................................................. 25,000 LBS PLEASE CLICK ON THE FOLLOWING LINK TO SEE A VIDEO UNDER POWER http://www.youtube.com/watch?v=c-pU5c5dQaU&feature=youtu.be PRICE: $89,500.00 At your request, we previously quoted you a similar machine. The above machine has recently become available and we thought you would appreciate receiving this quote. If you are no longer in the market for this type of machine, please contact us via email, phone, or fax and we will immediately remove you from our list. FOR FURTHER INFORMATION PLEASE CALL HARVEY GELLER AT 714-968-9985
