OKAMOTO ACC-2040DX

Type:

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Manufacturer:

OKAMOTO

Model:

ACC-2040DX

Condition:

Not Specified

Year:

2008

Stock #:

36756

Status:

Sold

Description:

20" x 40", IPDF, OTW DRESS, 2 AXIS DRO, MICRO CROSS FEED

Location:

North Carolina, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

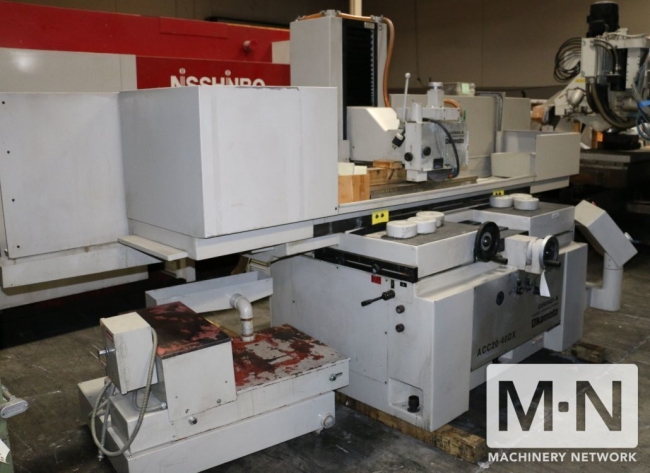

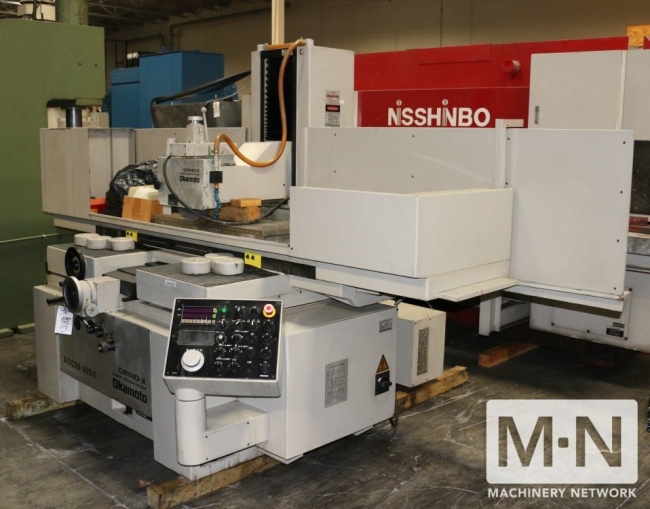

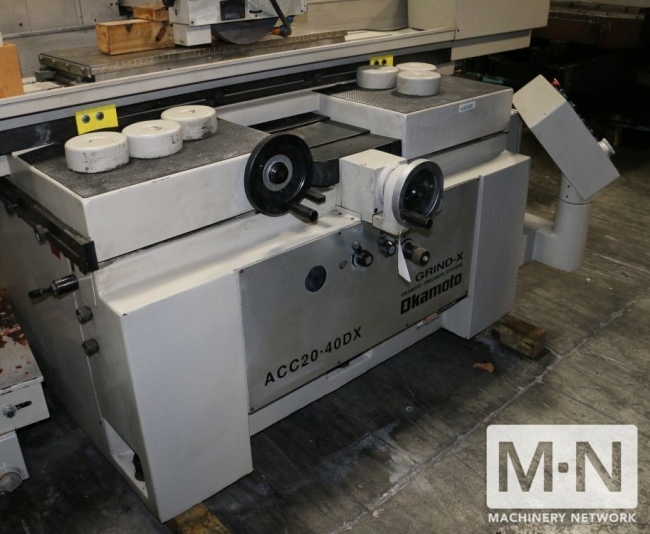

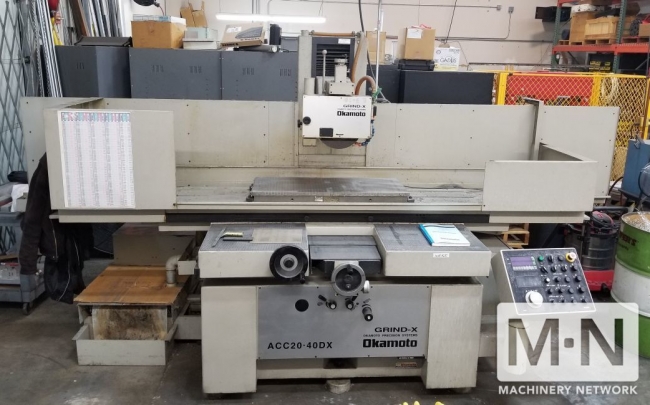

(1) Used 20" x 40" Okamoto ACC-2040DX Automatic Surface Grinder
New 2008
Specifications:
Table working capacity: 20" x 40"
Distance - table to 12" wheel: 1.9" - 21.6"
Table load cap. - including chuck: 1540 lbs
Longitudinal travel: 45.3"
Longitudinal feed rate: 10 - 82 FPM
Long. - manual per rev. of handwheel: 1.85"
Cross travel: 21.3"
Cross feed - manual per rev of handwheel: 0.25" (0.001" grad)
- hydraulic, intermittent: 0.02" - 0.8"
- hydraulic, continuous: 8-40 IPM
Down feed - automatic per table stroke: 0.00005" - 0.0015"
- manual per rev of handwheel: 0.001"/0.01"/0.1"
Spark out 0-5 times
Vertical rapid feed 23.6 IPM
Grinding wheel size: 12" x 1.5"W x 5" bore
Grinding wheel speed: 1800 RPM
Grinding wheel motor 5 HP
Electrical requirements 480V/3P/60hZ
Floor space: 180"L x 100"D x 79"H
Weight: 11,000 lbs

Equipped with:

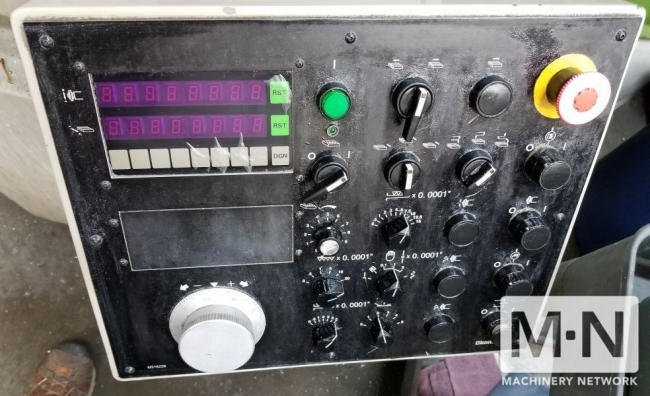

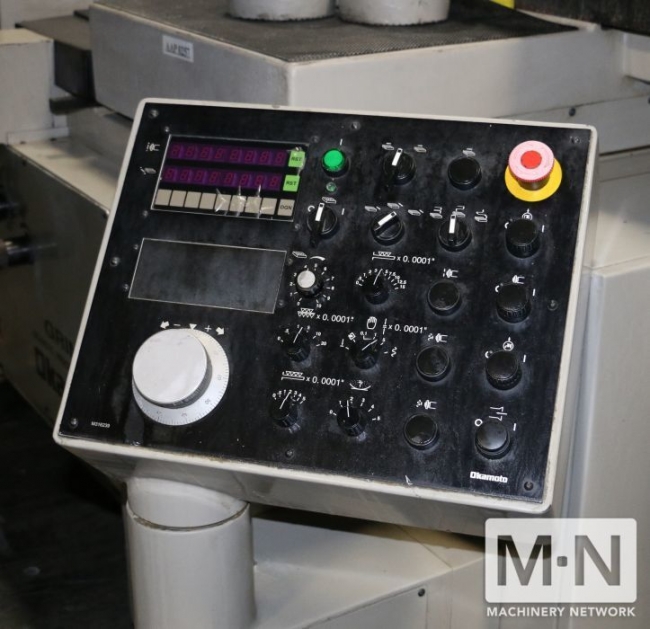

Okamoto FX series controller
Servo driven vertical feed, hydraulic cross & longitudinal feeds
Automatic traverse or plunge grinding
2 axis DRO

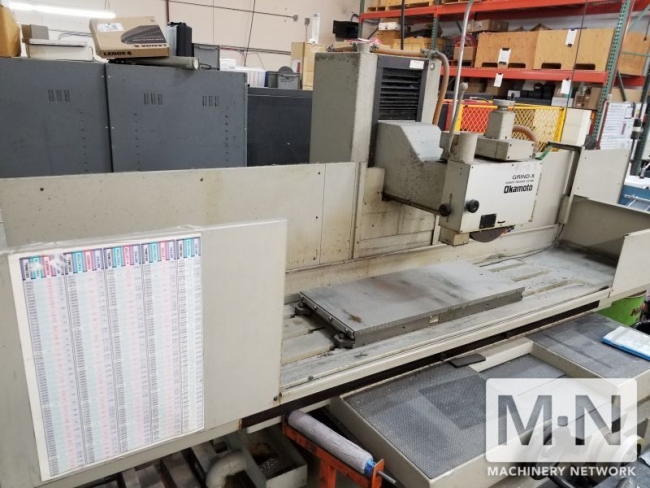

16" x 40" Electro-magnetic chuck

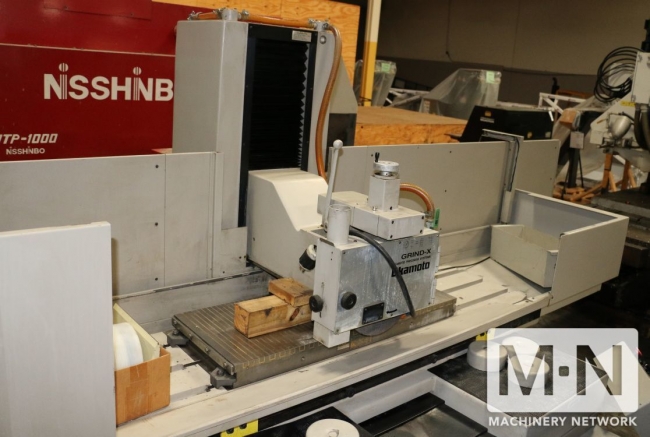

Over the wheel dresser
Micro cross-feed option

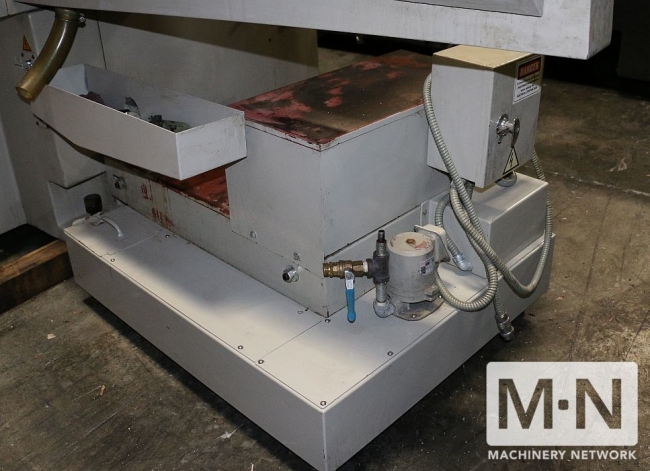

Coolant system with paper filter
Spare wheel hub & grinding wheel
Wheel balancing stand
Manuals
