LEBLOND MAKINO REGAL
Type:
LATHES, ENGINE
Manufacturer:
LEBLOND MAKINO
Model:
REGAL
Condition:
Not Specified
Year:
1971
Stock #:
24510
Status:
Sold
Description:
SERVO SHIFT, 19" x 54", 10" 3-J, QUICKCHANGE
Location:
Kansas, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

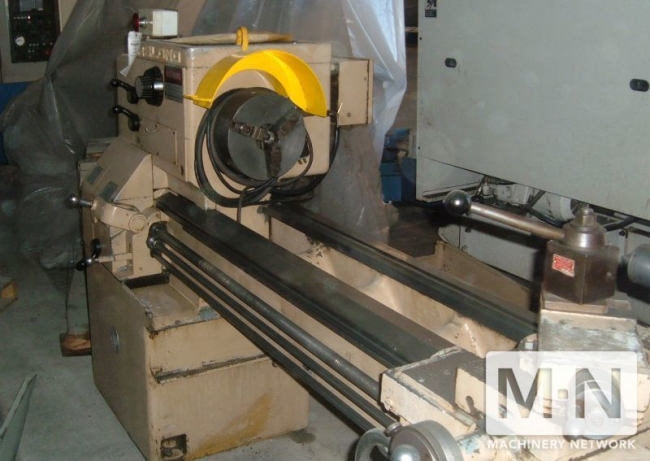

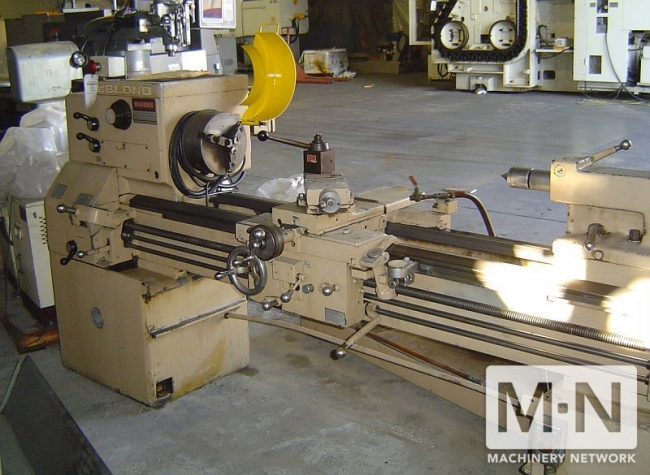

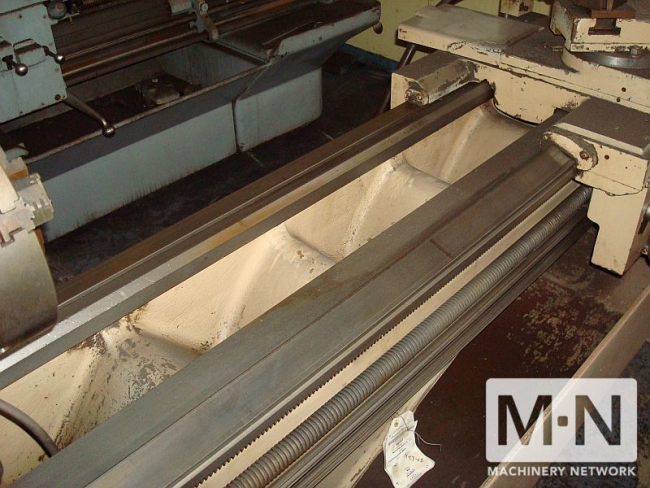

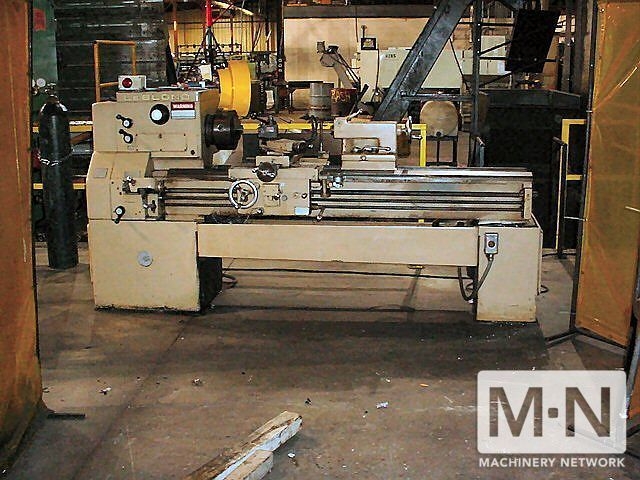

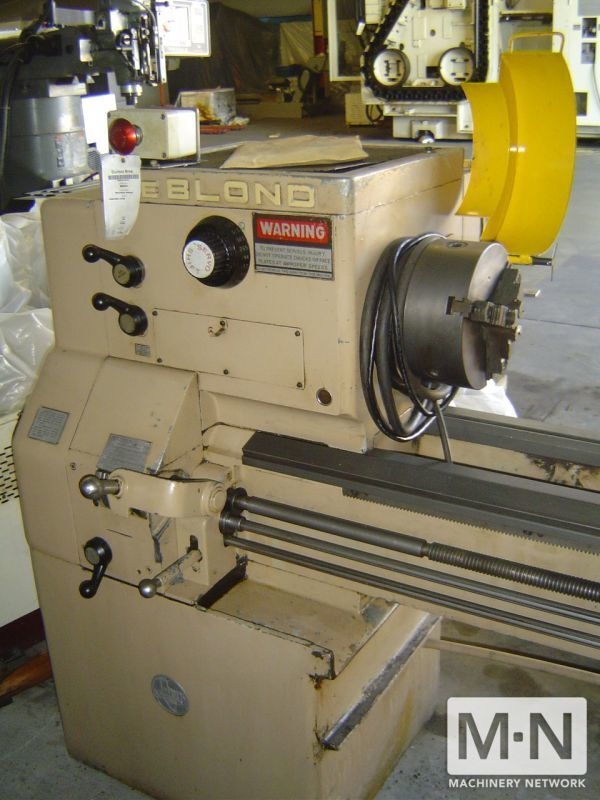

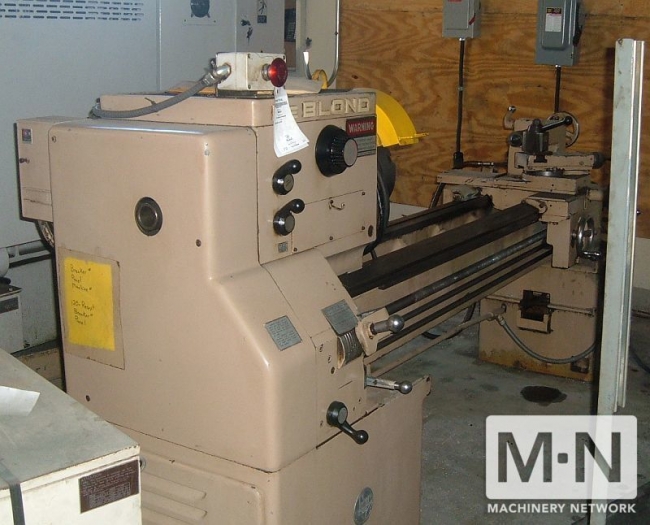

(1) USED 19"x54" LEBLOND SERVO-SHIFT REGAL ENGINE LATHE
NEW 1971, S/N: 7E-2035
SPECIFICATIONS:
SWING OVER BED ................... 19 1/4"
SWING OVER CROSS SLIDE ........... 12 1/4"
DISTANCE BETWEEN CENTERS ......... 54"
SPINDLE BORE ..................... 1 3/4"
SPINDLE SPEEDS ................... (12)25 to 1000 RPM
FEEDS ............................ (48)0.0023 to 0.132 IPR
THREADS .......................... (48)2 to 112 TPI
SPINDLE MOTOR .................... 7.5 HP
EQUIPPED WITH:

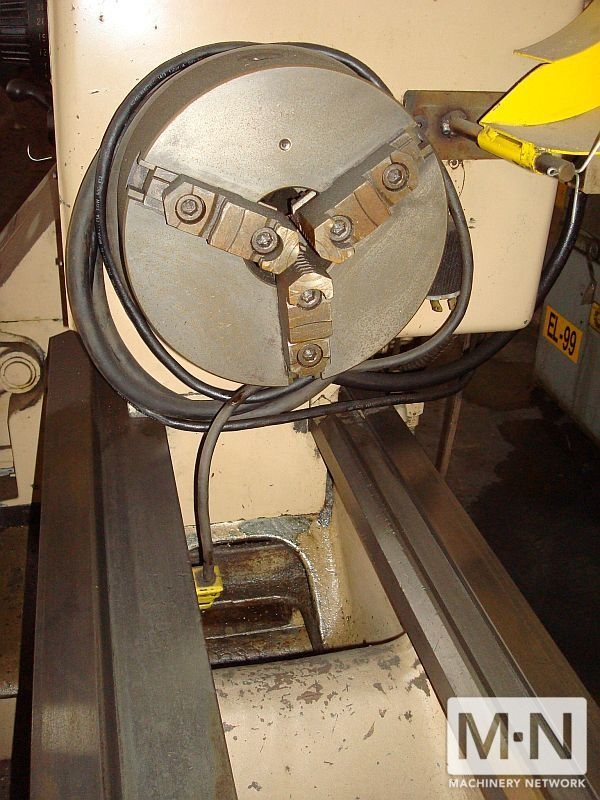

10" 3 JAW CHUCK & 12" 4 JAW CHUCK
SERVO-SHIFT
CHIP PAN
QUICK CHANGE TOOL POST
INSPECT IN LOS ANGELES AREA
NEW 1971, S/N: 7E-2035
SPECIFICATIONS:
SWING OVER BED ................... 19 1/4"
SWING OVER CROSS SLIDE ........... 12 1/4"
DISTANCE BETWEEN CENTERS ......... 54"
SPINDLE BORE ..................... 1 3/4"
SPINDLE SPEEDS ................... (12)25 to 1000 RPM
FEEDS ............................ (48)0.0023 to 0.132 IPR
THREADS .......................... (48)2 to 112 TPI
SPINDLE MOTOR .................... 7.5 HP
EQUIPPED WITH:
10" 3 JAW CHUCK & 12" 4 JAW CHUCK
SERVO-SHIFT
CHIP PAN
QUICK CHANGE TOOL POST
INSPECT IN LOS ANGELES AREA
