GIDDINGS & LEWIS 410
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
GIDDINGS & LEWIS
Model:
410
Condition:
Not Specified
Year:
2003
Stock #:
24137
Status:
Sold
Description:
SIEMANS SINUMERIK 840D, (2) x 62.9" X 49.2" PLLTS, 118" x 82.6" x 70.8", #50, 60 ATC, 6K RPM,
Location:
Ontario, Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

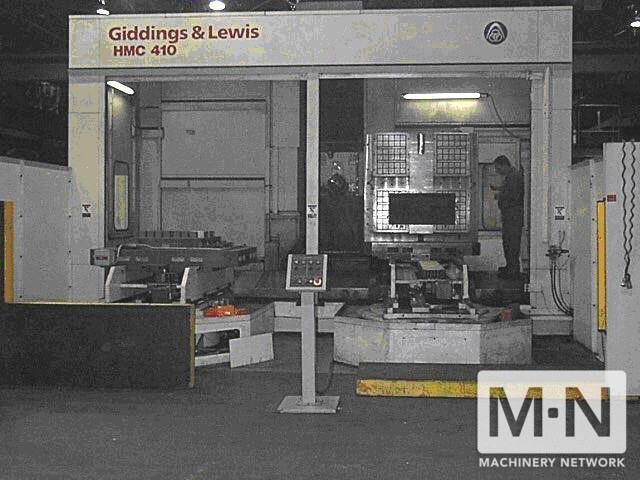

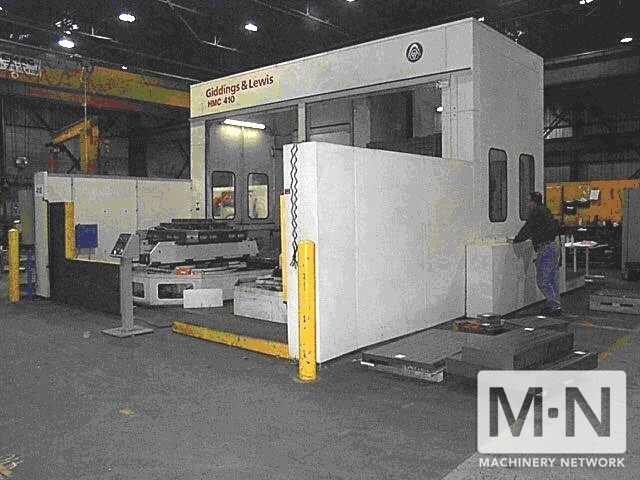

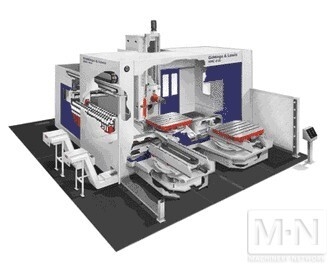

(1) USED GIDDINGS & LEWIS HMC 410 HORIZONTAL MACHINING CENTER NEW 2003
SPECIFICATIONS:
TRAVELS X-AXIS: .... 118.1"
Y-AXIS:..... 82.6"
Z-AXIS: .... 70.8"
SPINDLE TAPER:............ #50
TOOLS:.................... 60 ATC
SPINDLE TAPER ............ #50 ANSI B5.50
SPINDLE SPEED RANGE ...... 10 - 6000 RPM
S6-40% POWER RATING ...... 45 KW (60 HP)
CONTINUOUS POWER RATING .. 37 KW (50 HP)
PALLET SIZE .............. 1600 X 1250 MM (62.9" X 49.2")
PALLET LOAD CAPACITY ..... 7000 KG (15,430 LB)
WORK ZONE DIAMETER ....... 2500 MM (98.4")
WORK ZONE HEIGHT.......... 2000 MM (78.7")
EQUIPPED WITH:

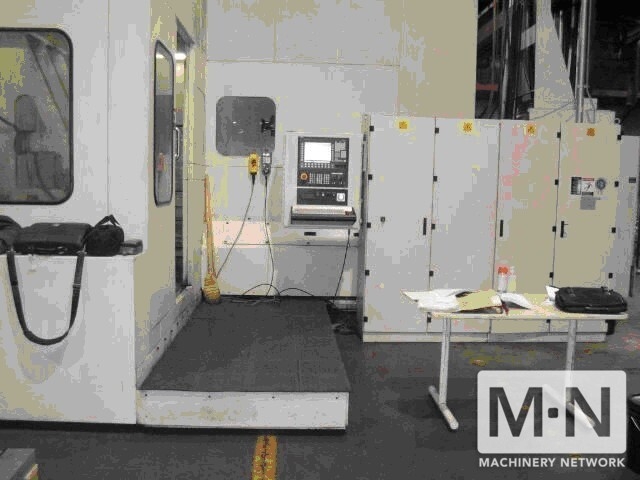

SIEMANS SINUMERIK 840D HIGH PERFORMANCE CNC COMPUTER NUMERICAL CONTROL

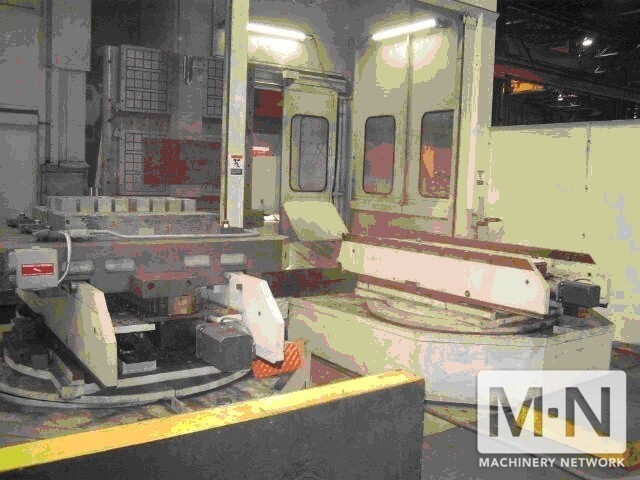

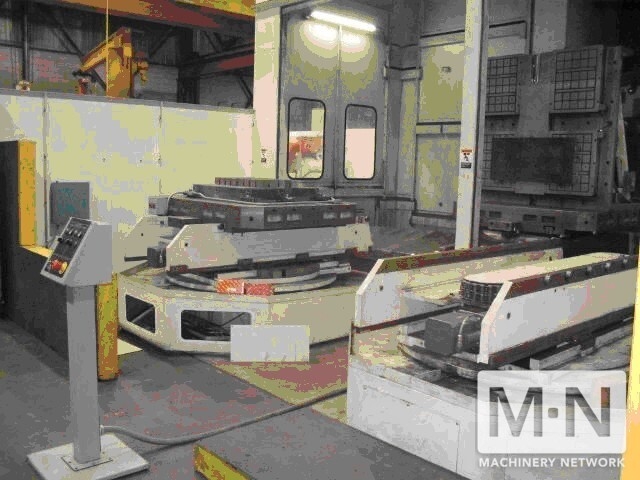

AUTOMATIC LINEAR PALLET CHANGER SYSTEM
WITH TWO (2) LOAD/UNLOAD STATIONS
85 SECOND PALLET CHANGE CYCLE
360,000 POSITION ROTARY TABLE
TWO PALLETS WITH "T" SLOTS AND A PRECISION CENTER BUSHING
20 SECOND CHIP-TO-CHIP TOOL CHANGE CYCLE
DUAL X-AXIS CHIP CONVEYORS WITH ELEVATOR
FLOOD COOLANT
COOLANT THRU-THE-SPINDLE - 17 BAR (250 PSI)
COOLANT SYSTEM EQUIPPED WITH A DUAL BAG FILTRATION SYSTEM
COOLANT RESERVOIR CAPACITY 1,200 L (317 GAL)
PART WASH CYCLE
STAINLESS STEEL WAY COVERS - X, Y AND Z AXES
HEAVY DUTY ROLLER LINEAR GUIDE WAYS
AUTOMATIC CENTRAL LUBRICATION SYSTEM
HYDRAULIC SYSTEM
CHIP AND COOLANT ENCLOSURE WITH ROOF
OPERATOR PLATFORM/WALKWAY INSIDE CHIP AND COOLANT ENCLOSURE
SPECIFICATIONS:
TRAVELS X-AXIS: .... 118.1"
Y-AXIS:..... 82.6"
Z-AXIS: .... 70.8"
SPINDLE TAPER:............ #50
TOOLS:.................... 60 ATC
SPINDLE TAPER ............ #50 ANSI B5.50
SPINDLE SPEED RANGE ...... 10 - 6000 RPM
S6-40% POWER RATING ...... 45 KW (60 HP)
CONTINUOUS POWER RATING .. 37 KW (50 HP)
PALLET SIZE .............. 1600 X 1250 MM (62.9" X 49.2")
PALLET LOAD CAPACITY ..... 7000 KG (15,430 LB)
WORK ZONE DIAMETER ....... 2500 MM (98.4")
WORK ZONE HEIGHT.......... 2000 MM (78.7")
EQUIPPED WITH:
SIEMANS SINUMERIK 840D HIGH PERFORMANCE CNC COMPUTER NUMERICAL CONTROL
AUTOMATIC LINEAR PALLET CHANGER SYSTEM
WITH TWO (2) LOAD/UNLOAD STATIONS
85 SECOND PALLET CHANGE CYCLE
360,000 POSITION ROTARY TABLE
TWO PALLETS WITH "T" SLOTS AND A PRECISION CENTER BUSHING
20 SECOND CHIP-TO-CHIP TOOL CHANGE CYCLE
DUAL X-AXIS CHIP CONVEYORS WITH ELEVATOR
FLOOD COOLANT
COOLANT THRU-THE-SPINDLE - 17 BAR (250 PSI)
COOLANT SYSTEM EQUIPPED WITH A DUAL BAG FILTRATION SYSTEM
COOLANT RESERVOIR CAPACITY 1,200 L (317 GAL)
PART WASH CYCLE
STAINLESS STEEL WAY COVERS - X, Y AND Z AXES
HEAVY DUTY ROLLER LINEAR GUIDE WAYS
AUTOMATIC CENTRAL LUBRICATION SYSTEM
HYDRAULIC SYSTEM
CHIP AND COOLANT ENCLOSURE WITH ROOF
OPERATOR PLATFORM/WALKWAY INSIDE CHIP AND COOLANT ENCLOSURE
