SOUTHWESTERN IND TRAK 1745P
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
SOUTHWESTERN IND
Model:
TRAK 1745P
Condition:
Not Specified
Year:
1998
Stock #:
23439
Status:
Sold
Description:
LX-2, 17"x45"
Location:
New Jersey, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

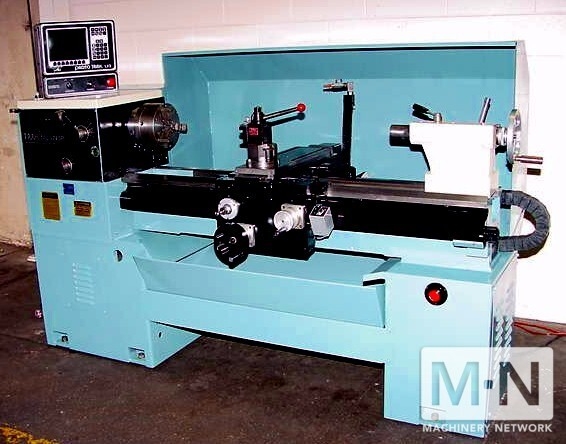

(1) USED 17"x45" S.W.I. TRAK TRL 1745P CNC/MANUAL LATHE
NEW 1998
SPECIFICATIONS:
Height of Centers: 8 7/8"
Distance between Centers: 45"
Swing over Bed: 17 11/16"
Swing over Saddle Wings: 16 1/8"
Swing over Cross-Slide: 10 15/32"
Cross-Slide Travel: 9"
Tool Section Max: 1"
Spindle Nose (Camlock): D1-6
Spindle through Hole: 2"
Taper in Reduction Sleeve: MT-4
Spindle Dia./Front Bearing: 3.15"
Spindle Speed Range (12): 40-2200 RPM
Main Motor: 7.5 HP
Electrics: 220v/3/60
Dimensions: 87"L x 36"W x 57"H
Net weight: 2600 lbs
EQUIPPED WITH:

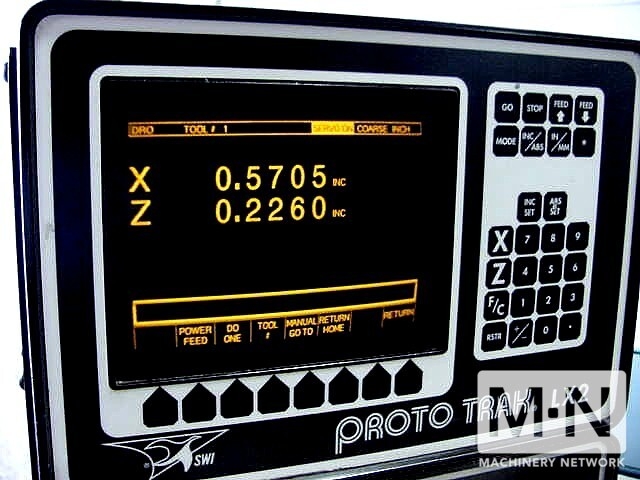

PROTOTRAK LX2 CNC CONTROL

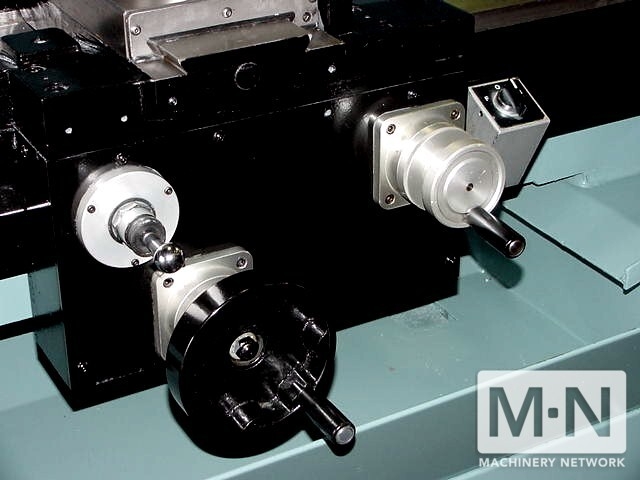

ELECTRONIC HANDWHEELS FOR MANUAL OPERATION
QUICK CHANGE TOOL POST
*INSPECT IN HARRISON, NJ
NEW 1998
SPECIFICATIONS:
Height of Centers: 8 7/8"
Distance between Centers: 45"
Swing over Bed: 17 11/16"
Swing over Saddle Wings: 16 1/8"
Swing over Cross-Slide: 10 15/32"
Cross-Slide Travel: 9"
Tool Section Max: 1"
Spindle Nose (Camlock): D1-6
Spindle through Hole: 2"
Taper in Reduction Sleeve: MT-4
Spindle Dia./Front Bearing: 3.15"
Spindle Speed Range (12): 40-2200 RPM
Main Motor: 7.5 HP
Electrics: 220v/3/60
Dimensions: 87"L x 36"W x 57"H
Net weight: 2600 lbs
EQUIPPED WITH:
PROTOTRAK LX2 CNC CONTROL
ELECTRONIC HANDWHEELS FOR MANUAL OPERATION
QUICK CHANGE TOOL POST
*INSPECT IN HARRISON, NJ
