TOSHIBA BMC-500
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
TOSHIBA
Model:
BMC-500
Condition:
Not Specified
Year:
1995
Stock #:
22535
Status:
Sold
Description:
TOSNUC 800, 4TH AXIS, 19.5" SQ PLLTS, CTS, CHIP CONV, 60 ATC, AUTO PLLT CHNGR
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

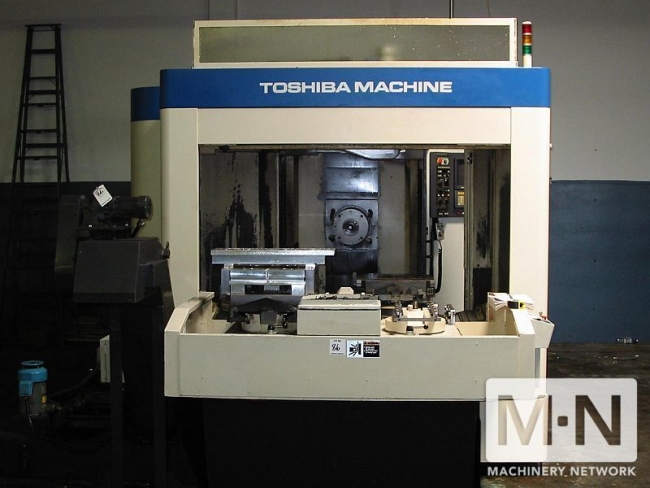

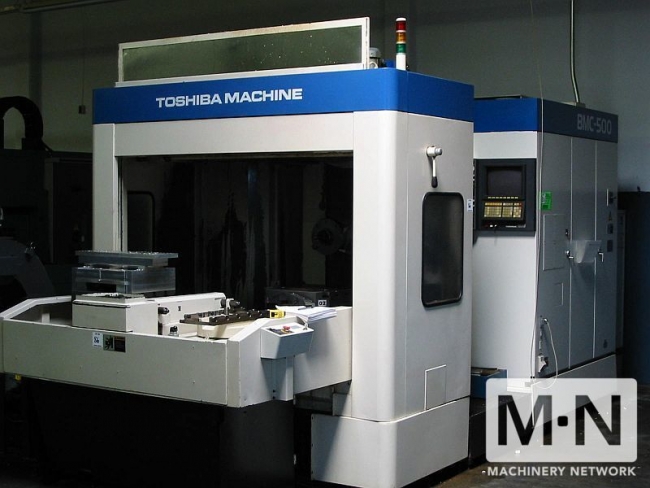

(1) USED TOSHIBA BMC-500 4-AXIS CNC HORIZONTAL
MACHINING CENTER W/ PALLET CHANGER
S/N: 212579, NEW-1996
SPECIFICATIONS:
PALLET SIZE (2): 19.5" X 19.5"
TABLE WORKLOAD: 1764 LBS
TABLE INDEXING: 360,000 POSITIONS
TRAVELS -X AXIS: 31.5
-Y AXIS: 24.8
-Z AXIS: 28
SPINDLE SPEED (2 STEPS): 40-10000 RPM
SPINDLE TAPER: #50
SPINDLE MOTOR: 20 /25 HP.

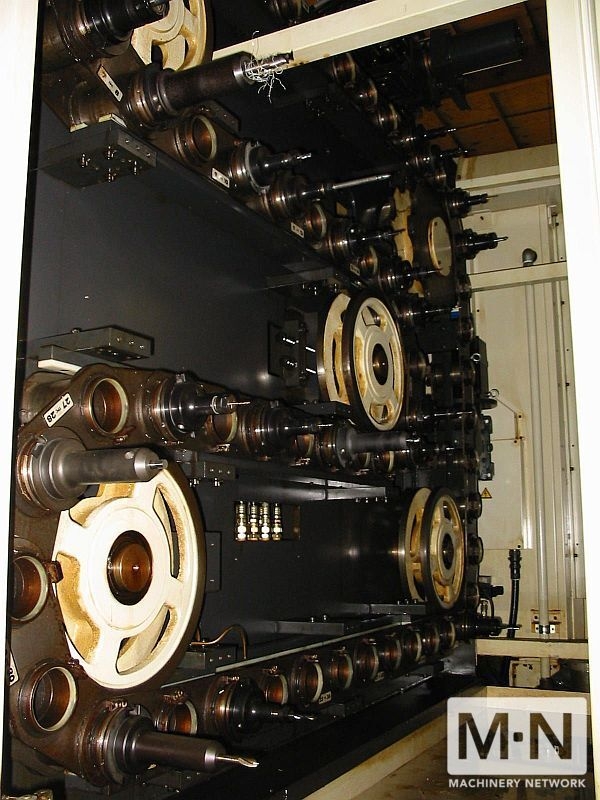

AUTOMATIC TOOL CHANGER. 60 POSITIONS.
EQUIPPED WITH:

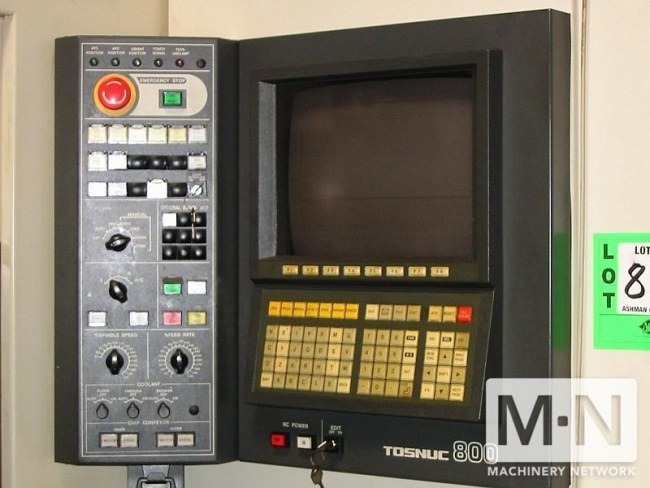

TOSNUC 800 CNC CONTROL,DIN(B-TYPE)COOLANT THRU SPINDLE,
HEILCAL INTROPOLATION.SYNCHRONOUS TAPPING.CUTTER COMPENSATION.
399 EACH,TOOL LENGTH OFFSETS 499 EACH,610/611 COORDINATE CONVERSION,664/665 SCALING,662/666 PROG. MIRROR IMAGE,
CHIP CONVEYOR,FULL ENCLOSURES,,220V.A.C.,LINIAR WAY CONSTRUCTION ON ALL AXIS.
20 PLUS HOLDERS.BUILT-IN ROTARY TABLE,
BUILT-IN ROTARY TABLE, AUTOMATIC TOOL LENGTH
MEASURING, SPLASH COVER, REFERENCE TOOL FOR
AUTOMATIC TOOL LENGTH MEASUREMENT, SPECIAL
ASSEMBLY & OPERATION TOOLS, INSTALLATION
PARTS, HYDRAULIC UNIT, SPINDLE HEAD COOLING
UNIT, OPERATOR CALL LAMP, WORKING LIGHT, PLUG
RECEPTACLE FOR EXTERNAL EQUIPMENT, AUTOMATIC
NC POWER OFF,
CYCLE ON TIME 8500 HOURS.
MACHINING CENTER W/ PALLET CHANGER
S/N: 212579, NEW-1996
SPECIFICATIONS:
PALLET SIZE (2): 19.5" X 19.5"
TABLE WORKLOAD: 1764 LBS
TABLE INDEXING: 360,000 POSITIONS
TRAVELS -X AXIS: 31.5
-Y AXIS: 24.8
-Z AXIS: 28
SPINDLE SPEED (2 STEPS): 40-10000 RPM
SPINDLE TAPER: #50
SPINDLE MOTOR: 20 /25 HP.
AUTOMATIC TOOL CHANGER. 60 POSITIONS.
EQUIPPED WITH:
TOSNUC 800 CNC CONTROL,DIN(B-TYPE)COOLANT THRU SPINDLE,
HEILCAL INTROPOLATION.SYNCHRONOUS TAPPING.CUTTER COMPENSATION.
399 EACH,TOOL LENGTH OFFSETS 499 EACH,610/611 COORDINATE CONVERSION,664/665 SCALING,662/666 PROG. MIRROR IMAGE,
CHIP CONVEYOR,FULL ENCLOSURES,,220V.A.C.,LINIAR WAY CONSTRUCTION ON ALL AXIS.
20 PLUS HOLDERS.BUILT-IN ROTARY TABLE,
BUILT-IN ROTARY TABLE, AUTOMATIC TOOL LENGTH
MEASURING, SPLASH COVER, REFERENCE TOOL FOR
AUTOMATIC TOOL LENGTH MEASUREMENT, SPECIAL
ASSEMBLY & OPERATION TOOLS, INSTALLATION
PARTS, HYDRAULIC UNIT, SPINDLE HEAD COOLING
UNIT, OPERATOR CALL LAMP, WORKING LIGHT, PLUG
RECEPTACLE FOR EXTERNAL EQUIPMENT, AUTOMATIC
NC POWER OFF,
CYCLE ON TIME 8500 HOURS.
