CINCINNATI 2216XIM CINTURN

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

CINCINNATI

Model:

2216XIM CINTURN

Condition:

Not Specified

Year:

1988

Stock #:

15322

Status:

Sold

Description:

24" chuck, 4.7" hts, ACRAMATIC 950 Ctrl, 12 STATIONS

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

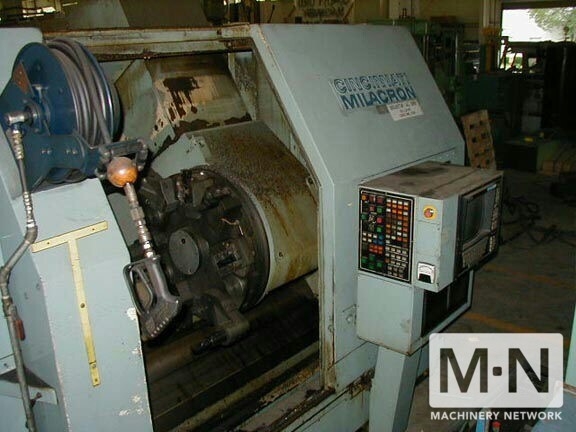

(1) CINCINNATI-MILACRON MODEL 2216C "CINTURN" 2-AXIS
CNC TURNING CENTER, NEW 1988
S/N: 5321C16-88-001

SPECIFICATIONS:

HOLE THROUGH SPINDLE: 4.7"
CHUCK DIAMETER: 24"
SWING OVER BED: 32"
SWING OVER CARRIAGE: 30"
SWING OVER CROSS SLIDE: 23"
TRAVELS:
X-AXIS: 15"
Z-AXIS: 40"
SPINDLE SPEEDS: 12 TO 1200 RPM
FEED RATE: 0 TO 200 IPM
POWER RAPID TRAVERSE: 500 IPM
SPINDLE MOTOR: 60 HP
ELECTRICAL SYSTEM: 460/3/60
OVERALL DIMENSION: 17'1" x 9'6"
OVERALL HEIGHT: 10'5"
WEIGHT: 26000 LBS

EQUIPPED WITH:

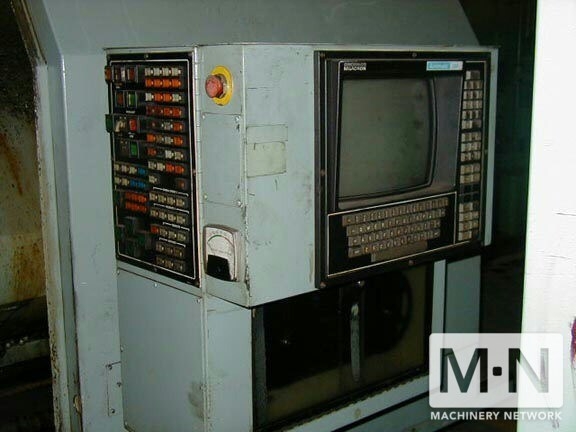

ACRAMATIC #950 CNC CONTROL W/CRT
24" SMWK 3-JAW CHUCK W/ACTUATOR

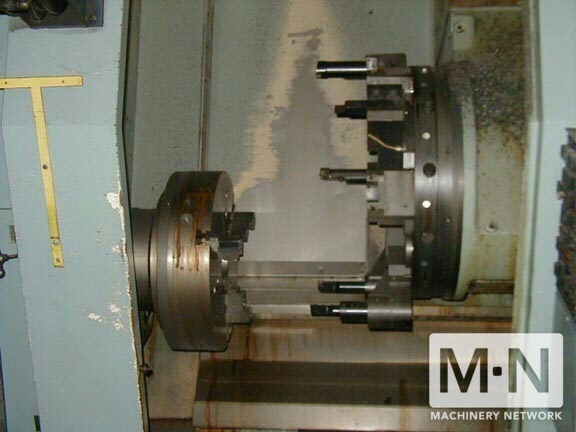

12-POSITION TURRET-#A1-11 SPINDLE NOSE
HARDENED & GROUND STEEL WAYS
CHIP CONVEYOR & COOLANT SYSTEM
