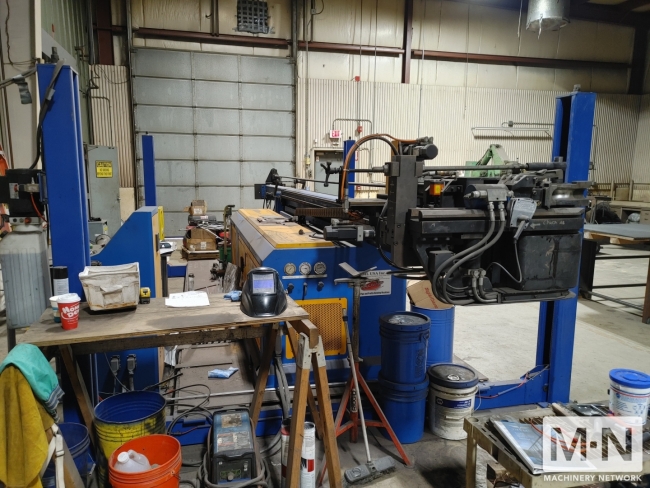

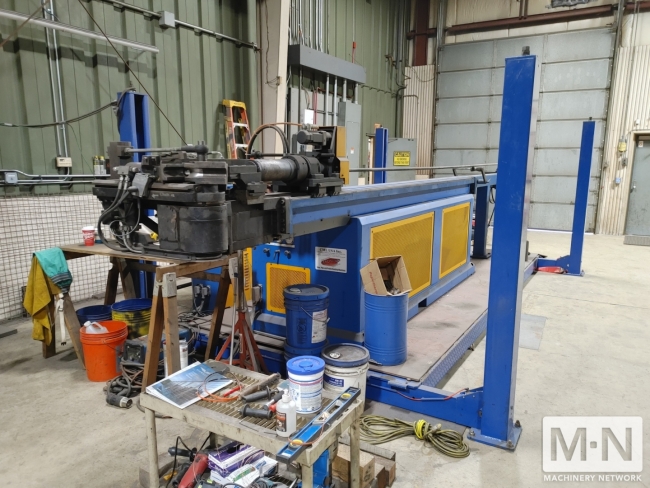

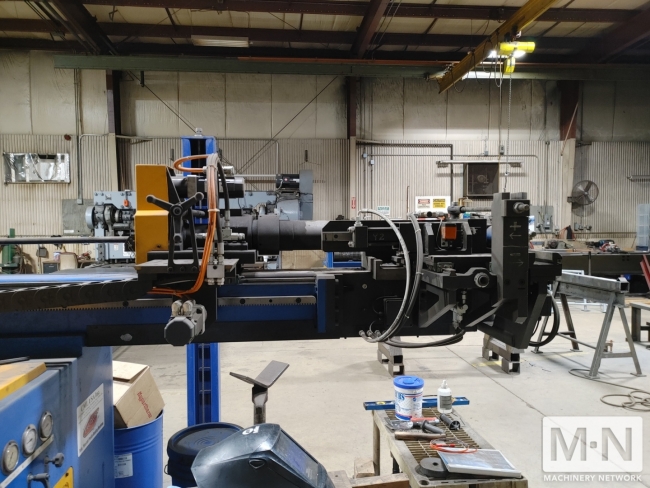

2017 ERCOLINA EB65 CNC TUBE BENDER
Type:
BENDERS, PIPE, TUBE & BAR, N/C & CNC
Manufacturer:
ERCOLINA
Model:
EB65
Condition:
Not Specified
Year:
2017
Stock #:
40644
Status:
For Sale

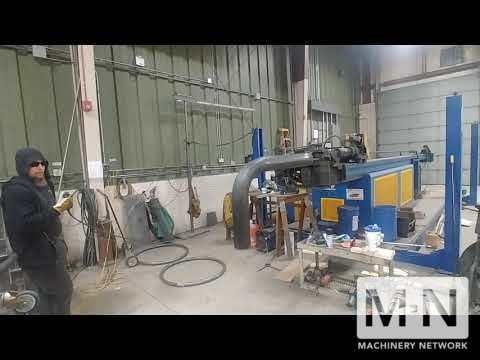

Videos:
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Max Tube Capacity 2 1/2"
Max Pipe Capacity 1-1/2" Sch. 40
Max Bending Radius 9.8"
Minimum Bending Radius 1.5
Max Shaft Rotation 210 deg.
Max Bending Angle 185 deg.
Max Tailstock Capacity 2-1/2"
Max Material Length 21'
Minimum Underhead Swing Clearance 12"
Length of Bending Head 59"
Nominal Hydraulic Pressure 150 bar
Max Carriage Travel 125"
Number of Programs Unlimited wit hUSB
Precision of Bend Angle +/- .5 deg
Bending Speed Programmable
Max Pipe Capacity 1-1/2" Sch. 40
Max Bending Radius 9.8"
Minimum Bending Radius 1.5
Max Shaft Rotation 210 deg.
Max Bending Angle 185 deg.
Max Tailstock Capacity 2-1/2"
Max Material Length 21'
Minimum Underhead Swing Clearance 12"
Length of Bending Head 59"
Nominal Hydraulic Pressure 150 bar
Max Carriage Travel 125"
Number of Programs Unlimited wit hUSB
Precision of Bend Angle +/- .5 deg
Bending Speed Programmable
6' Table Extension
Mandrel Tooling Set, 1-1/4" Pipe, 3" CLR
Mandrel Ki, 1-1/4" Pipe .140 Wall
Segmented Collet 1-1/4" Pipe
