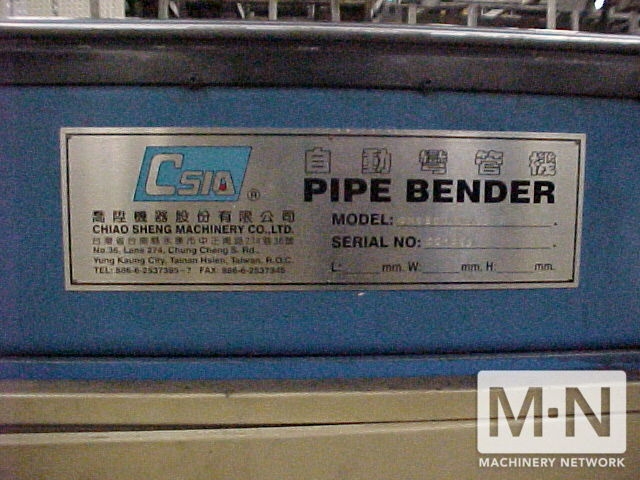

CHIAO SHENG CNC50TSRJ
Type:
BENDERS, PIPE, TUBE & BAR, N/C & CNC
Manufacturer:
CHIAO SHENG
Model:

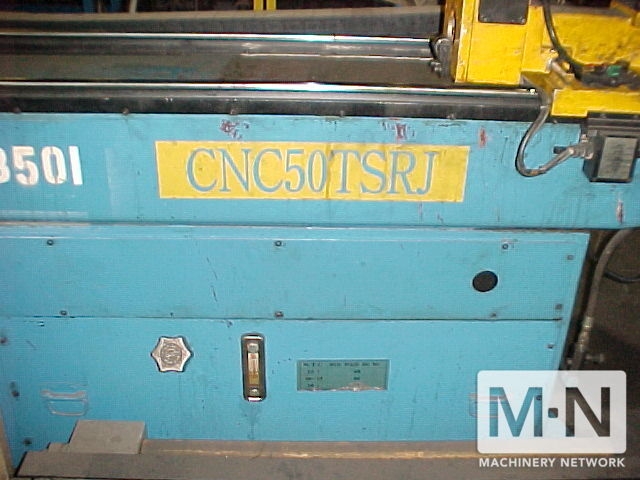

CNC50TSRJ
Condition:
Not Specified
Year:
2000
Stock #:
30657
Status:
Sold
Description:
2" X .079"
Location:
Missouri, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

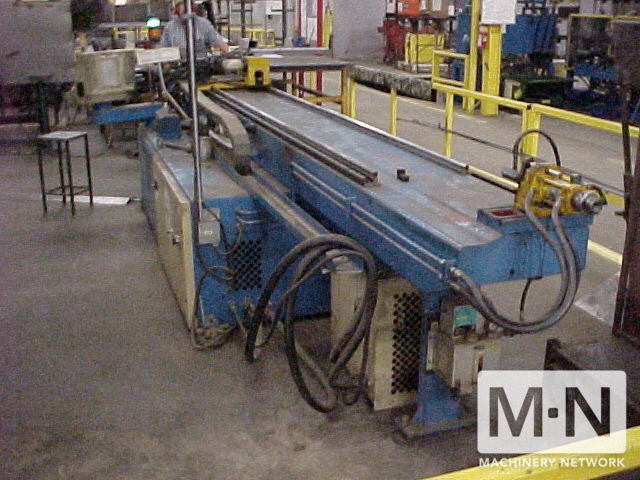

(1) 2" CHIAO SHENG MODEL CNC 50 TSRJ TUBE BENDER NEW 2000
SPECIFICATIONS: BENDING CAPACITY / ROUND TUBE / MILD STEEL: ... (OD X WT) 2.0 X 0.079 INCHES MIN AND MAX. BENDING RADIUS: .................. 8.66 INCHES MAX. BENDING ANGLE: ........................... 190 DEG MAX. LENGTH OVER MANDREL: ..................... 86.6 INCHES WORKING HEIGHT: ............................... 42.3 INCHES TOOLING CENTER LINE HEIGHT: ................... 1.6 INCHES DOB (BENDING) SPEED: .......................... 80 DEG / SEC ACCURACY OF DOB (BENDING): .................... ± 0.15 DEG DBB (FEEDING) SPEED: .......................... 7.87 - 35.4 INCHES ACCURACY OF DBB (FEEDING): .................... ± 0.15 INCHES POB ROTATION/ SPEED: .......................... 300 DEG / SEC MOTOR FOR HYDRAULIC: .......................... 7.5 HP TOTAL POWER: .................................. 9.5 KW MAX. PRESSURE: ................................ 1991.22 PSI HYDRAULIC TANK CAPACITY: ...................... 58 GAL MACHINE LENGTH: ............................... 158.6 INCHES MACHINE WIDTH: ................................ 47.2 INCHES MACHINE HEIGHT: ............................... 53.1 INCHES MACHINE WEIGHT: ............................... 2645 LBS
THIS MACHINE IS BEING SOLD ON A MAKE OFFER BASIS
SPECIFICATIONS: BENDING CAPACITY / ROUND TUBE / MILD STEEL: ... (OD X WT) 2.0 X 0.079 INCHES MIN AND MAX. BENDING RADIUS: .................. 8.66 INCHES MAX. BENDING ANGLE: ........................... 190 DEG MAX. LENGTH OVER MANDREL: ..................... 86.6 INCHES WORKING HEIGHT: ............................... 42.3 INCHES TOOLING CENTER LINE HEIGHT: ................... 1.6 INCHES DOB (BENDING) SPEED: .......................... 80 DEG / SEC ACCURACY OF DOB (BENDING): .................... ± 0.15 DEG DBB (FEEDING) SPEED: .......................... 7.87 - 35.4 INCHES ACCURACY OF DBB (FEEDING): .................... ± 0.15 INCHES POB ROTATION/ SPEED: .......................... 300 DEG / SEC MOTOR FOR HYDRAULIC: .......................... 7.5 HP TOTAL POWER: .................................. 9.5 KW MAX. PRESSURE: ................................ 1991.22 PSI HYDRAULIC TANK CAPACITY: ...................... 58 GAL MACHINE LENGTH: ............................... 158.6 INCHES MACHINE WIDTH: ................................ 47.2 INCHES MACHINE HEIGHT: ............................... 53.1 INCHES MACHINE WEIGHT: ............................... 2645 LBS
THIS MACHINE IS BEING SOLD ON A MAKE OFFER BASIS
